OIL PAN - OIL PUMP
GSXR1000 2007 (K7) USA (E03)

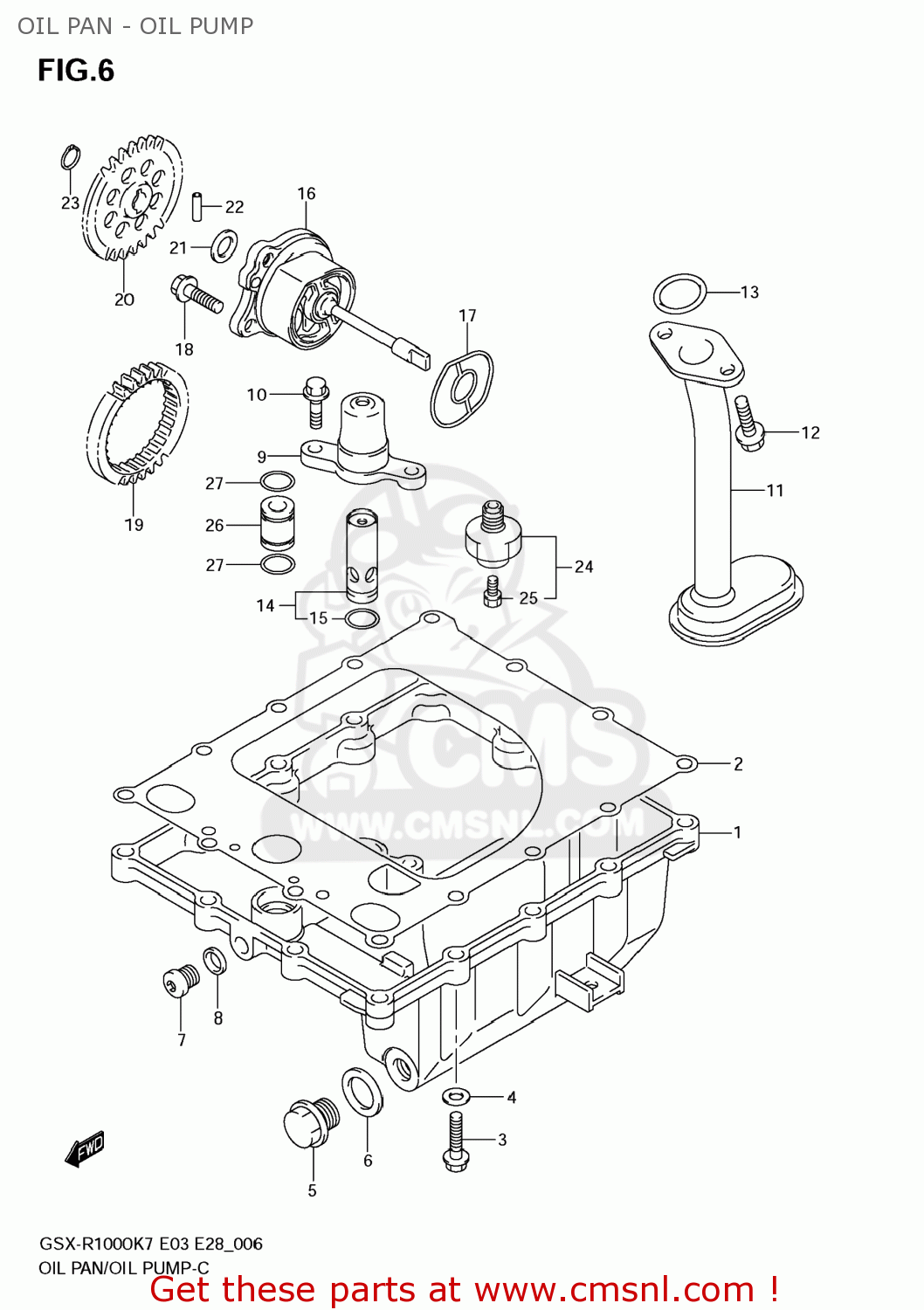

Oil pan - oil pump diagram GSXR1000 2007 (K7) USA (E03)
OIL PAN - OIL PUMP GSXR1000 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151121H00
ref: 1
PAN,OIL
€ 148.50
2
1148921H00
ref: 2
GASKET,OIL PAN(ASB) (NAS)
€ 16.00
3
015470625A
ref: 3
BOLT
€ 2.50
4
0916806023
ref: 4
GASKET(5.8X13X1.2) (NAS)
€ 2.00
5
0924714036
ref: 5
PLUG(14X20)
€ 5.50
6
0916814002
ref: 6
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
7
0924810010
ref: 7
PLUG(10X10)
€ 4.00
8
0916810002
ref: 8
GASKET(10X14X3.6) (NAS)
€ 2.00
9
1151244G00
ref: 9
CAP,OIL RELIEF VALVE
€ 13.50
10
015470620A
ref: 10
BOLT
€ 2.50
11
1652021H00
ref: 11
STRAINER ASSY,ENGINE OIL
€ 1,204.00
12
0910606099
ref: 12
BOLT(6X16)
€ 2.50
13
0928019008
ref: 13
O RING(D:2.62,ID:20.3)
€ 5.50
14
1644024F00
ref: 14
VALVE ASSY,OIL RELIEF(7K)
€ 41.50
15
0928013004
ref: 15
O RING(D:1.9,ID:13)
€ 2.50
16
1640021H00
ref: 16
PUMP ASSY,ENGINE OIL
€ 155.50
17
1649135F00
ref: 17
O RING,OIL PUMP
€ 4.50
18
015470620A
ref: 18
BOLT
€ 2.50
19
1632135F01
ref: 19
GEAR,OIL PUMP DRIVE
€ 36.50
20
1633135F00
ref: 20
GEAR,OIL PUMP DRIVEN
€ 37.50
21
0918110158
ref: 21
SHIM(10X18X0.5)
€ 2.50
22
0926104009
ref: 22
PIN(4X15.8)
€ 1.50
23
0833131106
ref: 23
08331-3110A
CIRCLIP,10MM
€ 2.00
24
3782033D10
ref: 24
SWITCH ASSY,OIL PRESSURE
€ 29.00
25
3782233D00
ref: 25
BOLT,OIL PRESSURE SWITCH
€ 3.00
26
1128144G00
ref: 26
PIPE,OIL GALLERY
€ 8.50
27
0928013004
ref: 27
O RING(D:1.9,ID:13)
€ 2.50
