RADIATOR

GSXR1000 2007 (K7) USA (E03)

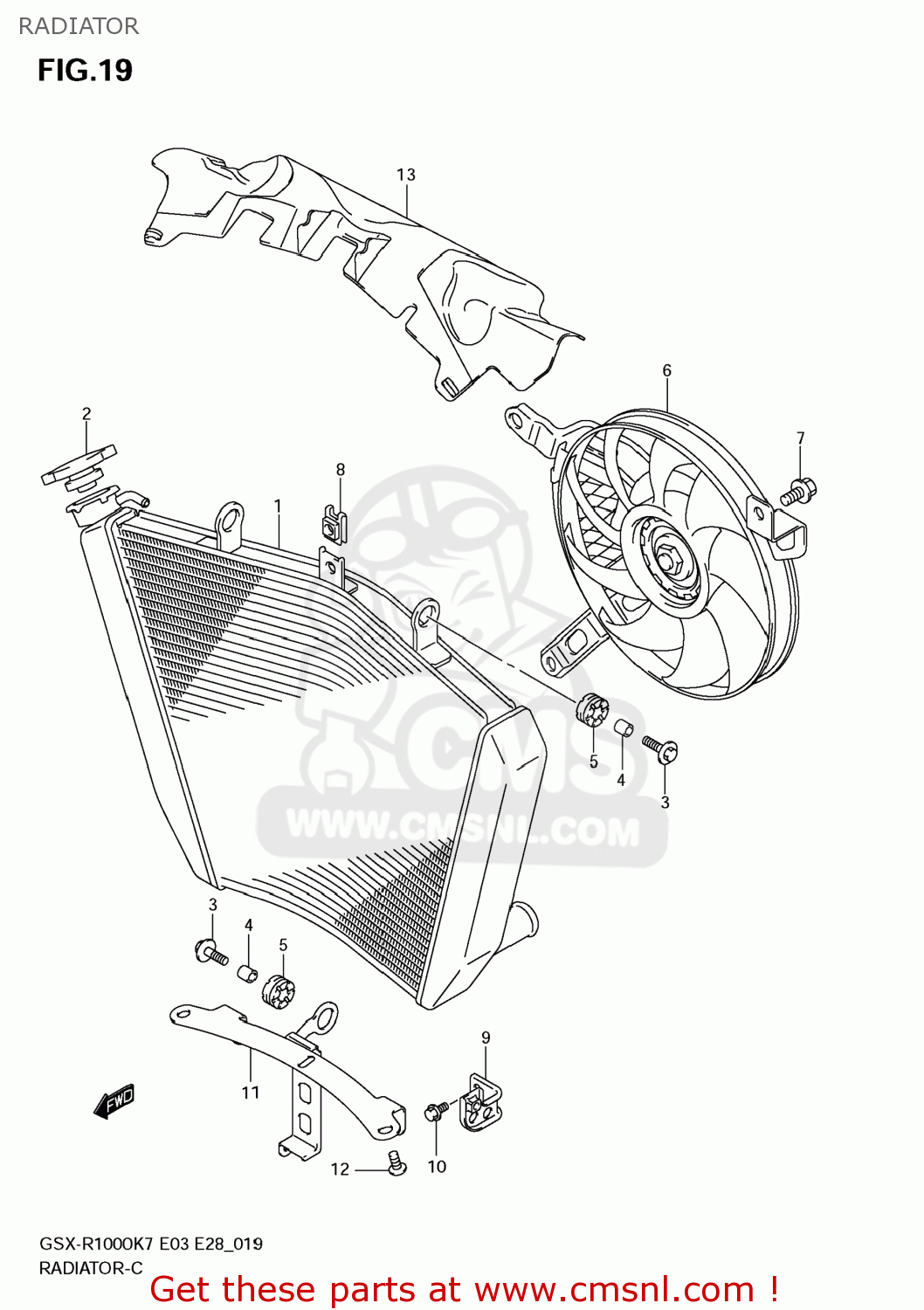

Radiator diagram GSXR1000 2007 (K7) USA (E03)

RADIATOR GSXR1000 2007 (K7) USA (E03)

RADIATOR GSXR1000 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1771021H00
ref: 1

RADIATOR ASSY,WATER

€ 1,006.00

2

1773012C20
ref: 2
17730-08J00

CAP COMP,RADIATOR

€ 40.00

3

0911806097
ref: 3

BOLT(6X25)

€ 2.50

4

0918006290
ref: 4

SPACER(6.5X10X12)

€ 2.50

5

0932010051
ref: 5

CUSHION

€ 3.50

6

1780021H00
ref: 6

FAN ASSY,RADIATOR

€ 855.00

7

1771140F00
ref: 7

BOLT,FAN ASSY

€ 3.50

8

1771240F00
ref: 8

NUT,FAN ASSY

€ 3.50

9

1775041G00
ref: 9

BRACKET,RDTR & OIL COOLER

€ 7.50

10

015500612A
ref: 10

BOLT

€ 2.50

11

1779021H00
ref: 11

BRACKET,RADIATOR SUPPORT

€ 31.50

12

015500610A
ref: 12

BOLT

€ 2.00

13

1777121H00
ref: 13

SHIELD,RADIATOR HEAT

€ 31.50
