SPEEDOMETER

GSXR1000 2007 (K7) USA (E03)

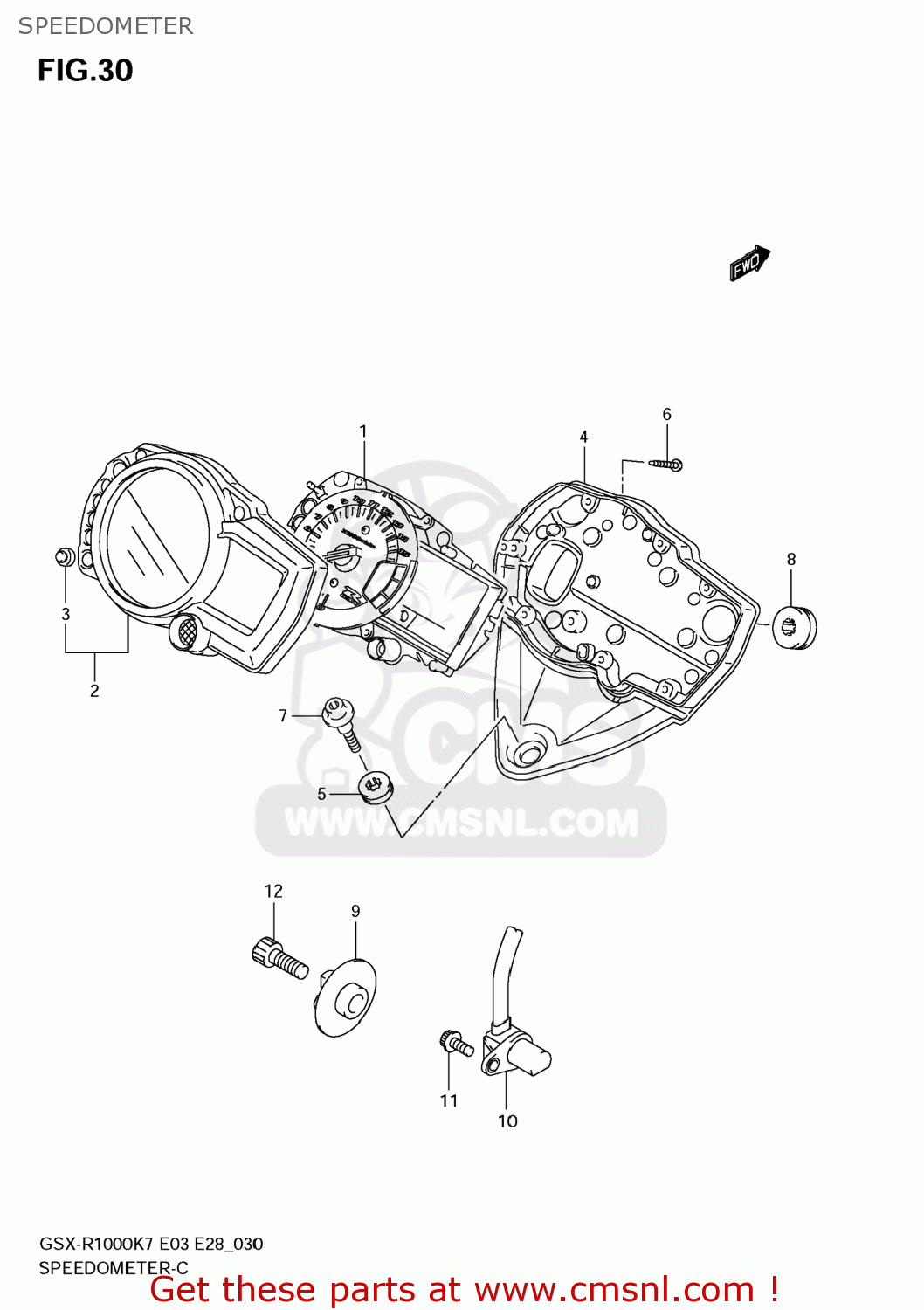

Speedometer diagram GSXR1000 2007 (K7) USA (E03)

SPEEDOMETER GSXR1000 2007 (K7) USA (E03)

SPEEDOMETER GSXR1000 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3412021H20
ref: 1-1

SPEED & TACHOMETER ASSY

€ 982.50

1-2

3412021H30
ref: 1-2

SPEED & TACHOMETER ASSY

€ 0.00

2

3415021H20
ref: 2

UPR CASE

€ 161.50

3

3412439G00
ref: 3

RUBBER,SWITCH

€ 7.00

4

3411121H00
ref: 4

LWR CASE

€ 89.00

5

3495533E00
ref: 5

CUSHION,METER

€ 3.00

6

3438335F00
ref: 6

SCREW(3X16)

€ 3.00

7

3414918G00
ref: 7

SCREW,SPEEDOMETER

€ 2.00

8

3495513E00
ref: 8

CUSHION

€ 3.00

9

3498138G00
ref: 9
34981-38G01

ROTOR,SPEED

€ 15.00

10

3499035F00
ref: 10

SENSOR,SPEED

€ 112.50

11

0910605023
ref: 11

BOLT(5X16)

€ 2.50

12

071300825B
ref: 12

BOLT

€ 3.50
