STAND

GSXR1000 2007 (K7) USA (E03)

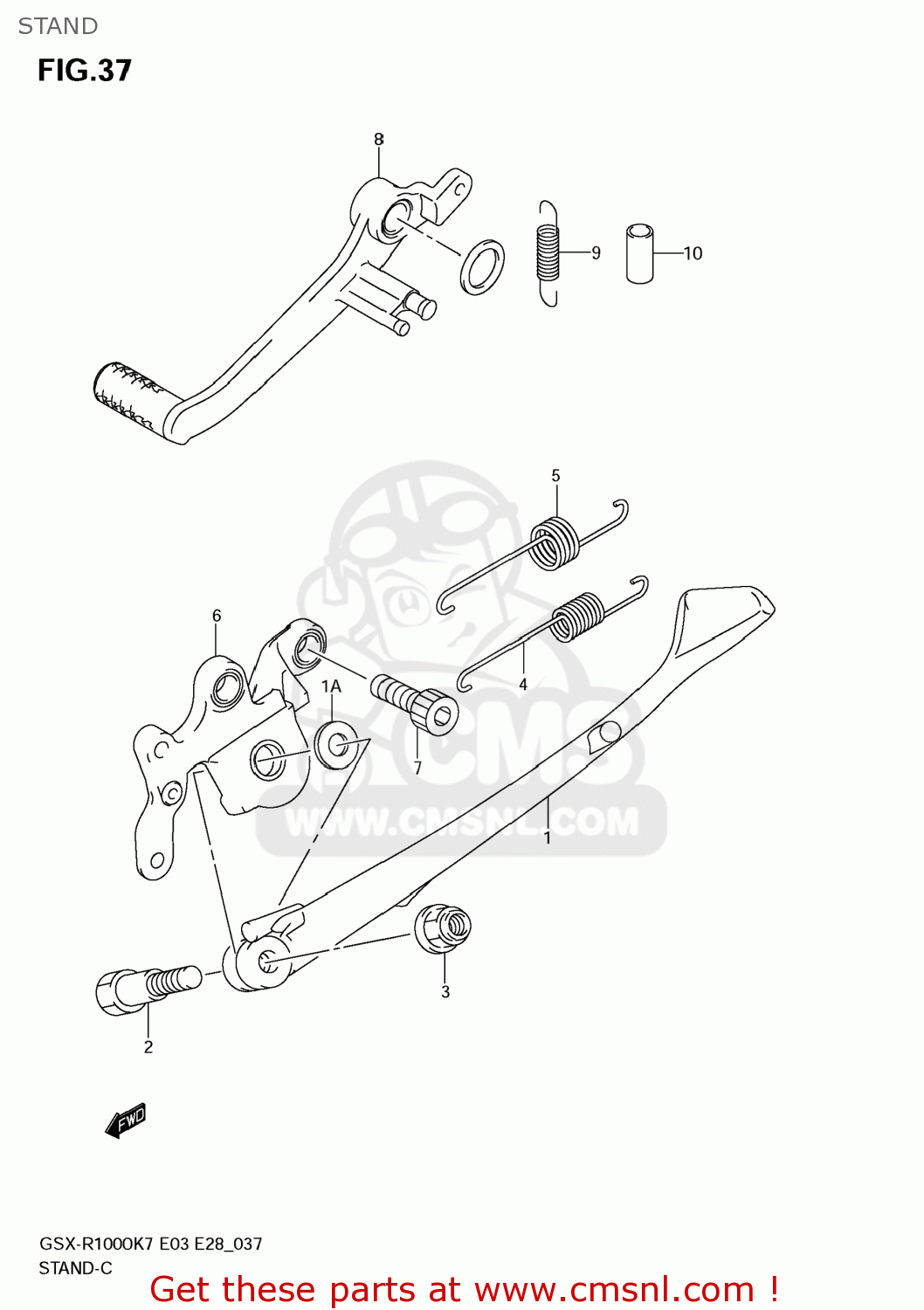

Stand diagram GSXR1000 2007 (K7) USA (E03)

STAND GSXR1000 2007 (K7) USA (E03)

STAND GSXR1000 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231021H00
ref: 1

STAND,PROP

€ 177.00

1A

1293527A00
ref: 1A

SEAT,VALVE SPRING EXH OUTER

€ 3.50

2

0911110059
ref: 2

BOLT(10X21)

€ 7.00

3

0915910103
ref: 3

NUT

€ 3.00

4

0944314070
ref: 4

SPRING

€ 5.00

5

0944319016
ref: 5

SPRING

€ 5.50

6

4233021H00
ref: 6

BRACKET,PROP STAND

€ 167.50

7

0910612005
ref: 7

BOLT(12X26)

€ 10.50

8

4311041G00
ref: 8

PEDAL,BRAKE

€ 100.50

9

0944311033
ref: 9

SPRING

€ 4.50

10

0935211153600
ref: 10

HOSE(11X15X600)

€ 13.50
