home
SEAT
GSXR1000 2007 (K7) USA (E03)

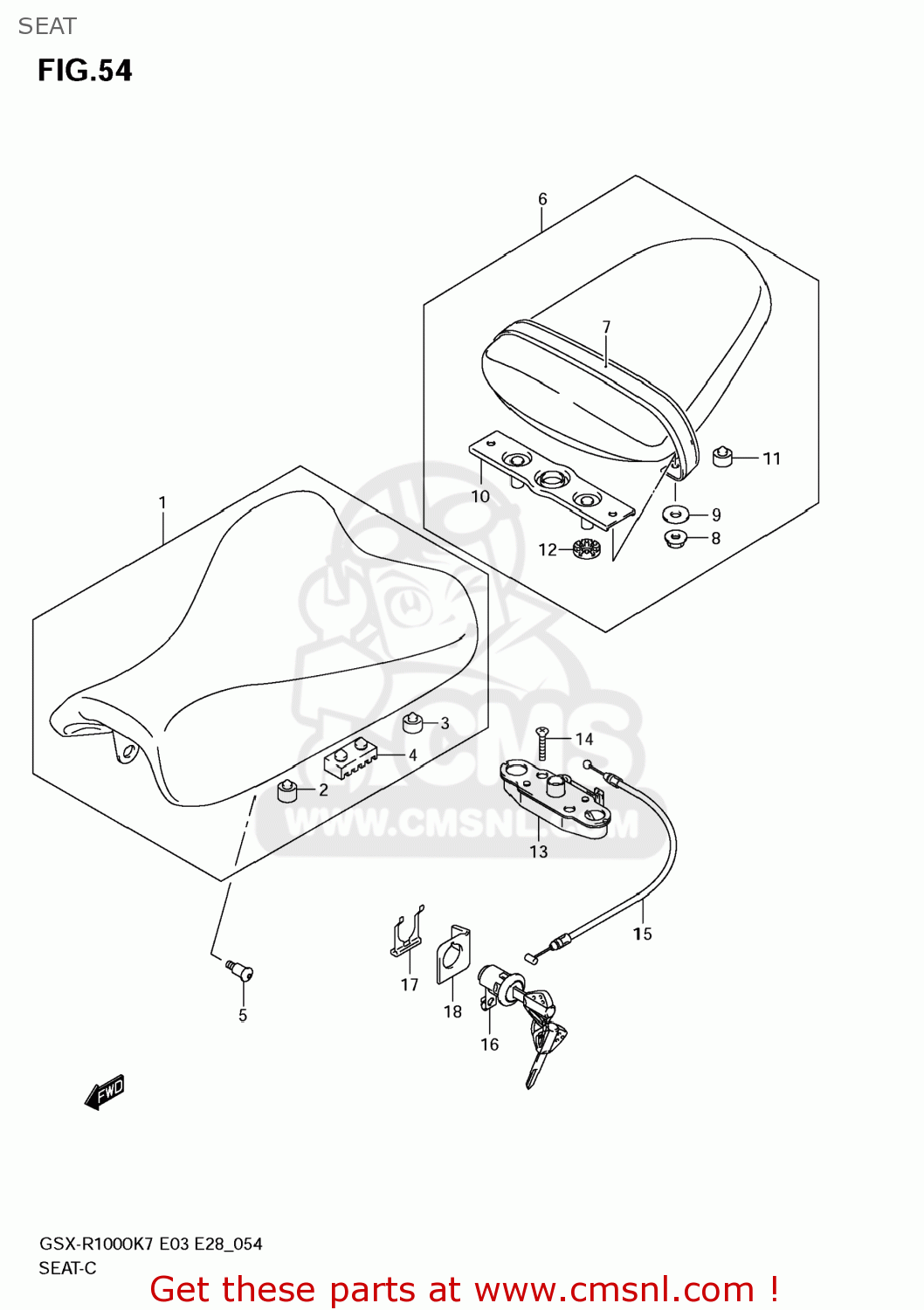

Seat diagram GSXR1000 2007 (K7) USA (E03)
SEAT GSXR1000 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4510021H006BY
ref: 1
SEAT ASSY
€ 198.50
2
0932110039
ref: 2
CUSHION
€ 4.00
3
0932110011
ref: 3
CUSHION
€ 3.00
4
4514919D00
ref: 4
CUSHION,SIDE
€ 6.00
5
0913906146
ref: 5
SCREW(6X16)
€ 3.00
6
4530021H006BY
ref: 6
SEAT ASSY,PILLION
€ 202.00
7
4518021H00
ref: 7
BAND ASSY,SEAT
€ 20.00
8
083193106A
ref: 8
NUT
€ 2.50
9
0916006066
ref: 9
WASHER(6.5X20X1.6)
€ 2.00
10
4529018G00
ref: 10
45290-18G01
STRIKER
€ 32.00
11
0932110011
ref: 11
CUSHION
€ 3.00
12
4521331300
ref: 12
CUSHION
€ 1.50
13
4522020A01
ref: 13
45220-47H00
BRACKET,SEAT SUPPORT,RIGHT
€ 79.50
14
021220630A
ref: 14
SCREW
€ 1.50
15
4528013A01
ref: 15
CABLE,SEAT LOCK
€ 11.00
16
9570014810
ref: 16
LOCK SET,SEAT
€ 75.50
17
4528911F00
ref: 17
PLATE,SEAT LOCK ASSY
€ 3.00
18
4528814F00
ref: 18
GUIDE,SEAT LOCK CABLE
€ 3.00
