HANDLE SWITCH

GSXR1000 2007 (K7) USA (E03)

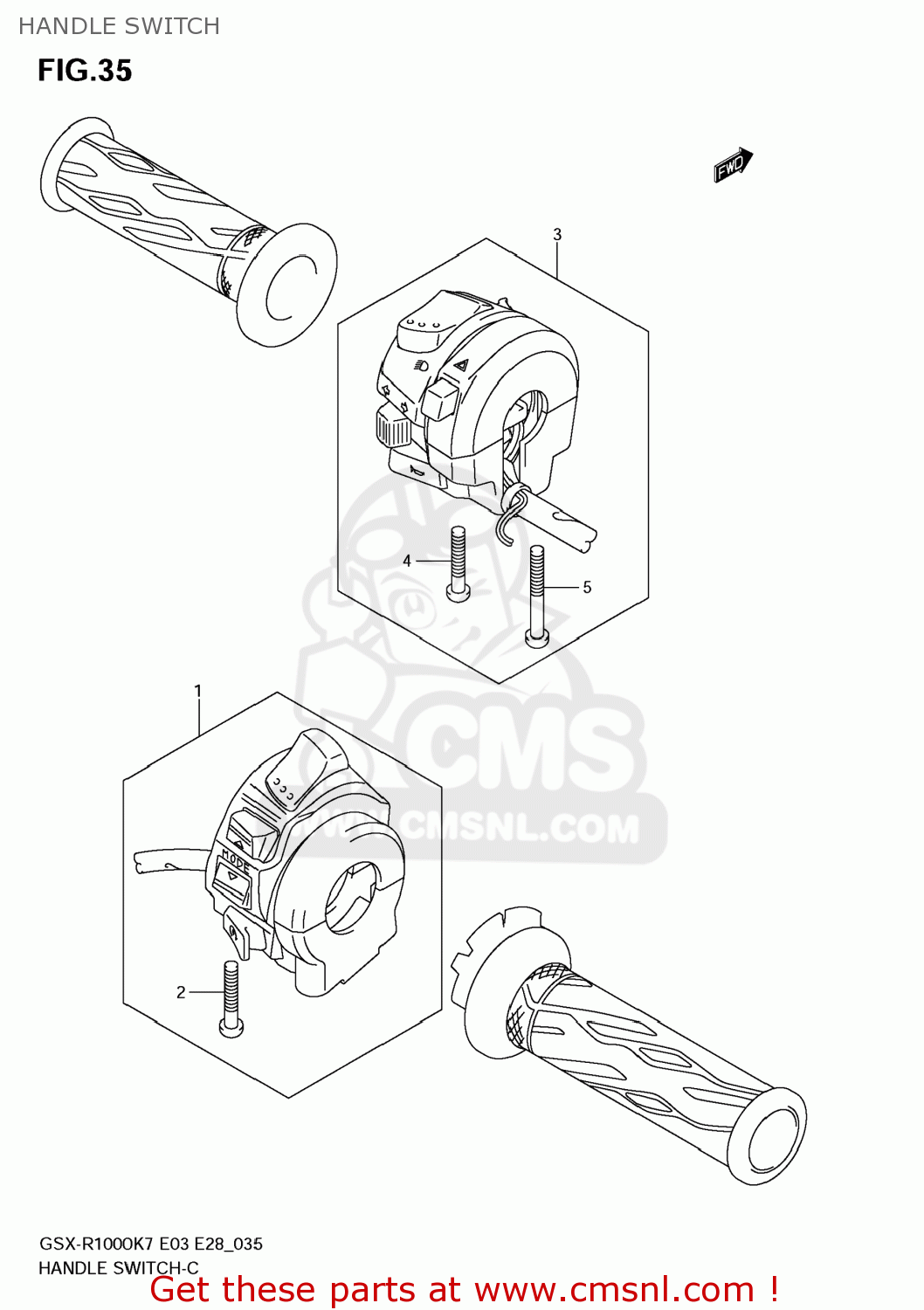

Handle switch diagram GSXR1000 2007 (K7) USA (E03)

HANDLE SWITCH GSXR1000 2007 (K7) USA (E03)

HANDLE SWITCH GSXR1000 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720021H00
ref: 1
37200-21H01

SWITCH ASSY,HA

€ 245.50

2

021120530B
ref: 2

SCREW

€ 1.50

3

3740021H10
ref: 3
37400-21H11

SWITCH ASSY,HA

€ 224.50

4

021120525B
ref: 4

SCREW

€ 1.50

5

021120545B
ref: 5

SCREW

€ 4.00
