GEAR SHIFTING
GSXR1000 2007 (K7) USA (E03)

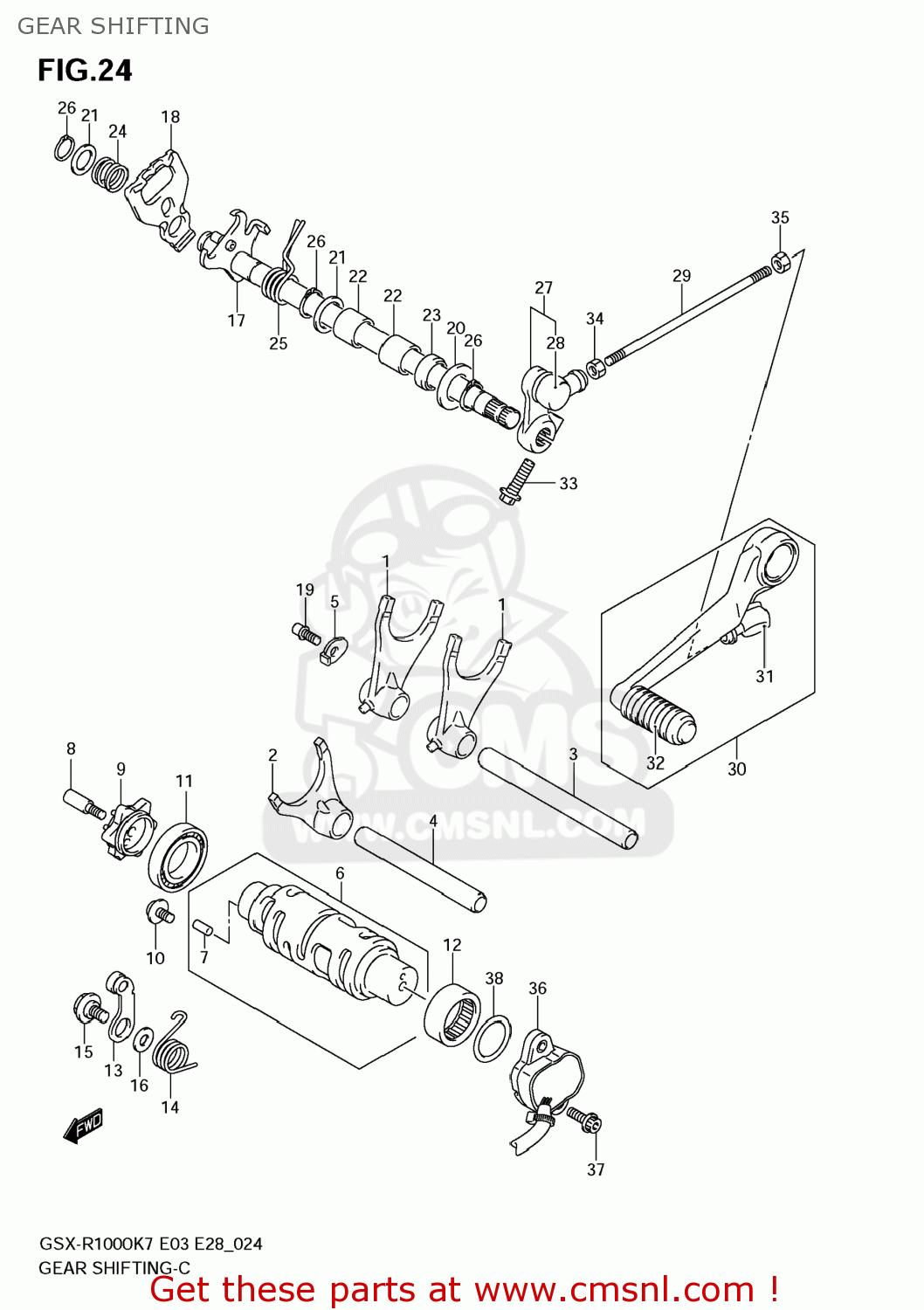

Gear shifting diagram GSXR1000 2007 (K7) USA (E03)
GEAR SHIFTING GSXR1000 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521135F10
ref: 1
25211-35F11
FORK,GEAR SHIF
€ 72.50
2
2523135F10
ref: 2
25231-35F11
FORK,GEAR SHIF
€ 72.50
3
2541124F00
ref: 3
SHAFT,SHIFT FORK NO.2(L:132)
€ 19.00
4
2541126D01
ref: 4
SHAFT,GEAR SHIFT FORK
€ 16.00
5
2545135F00
ref: 5
RETAINER,GEAR SHIFT FORK SHAFT
€ 3.00
6
2531040F00
ref: 6
CAM,GEAR SHIFT
€ 147.50
7
0422104089
ref: 7
PIN
€ 1.50
8
2531242F00
ref: 8
25312-42F01
BOLT,GEAR SHIF
€ 5.50
9
2538113E30
ref: 9
PLATE,GEAR SHIFT CAM
€ 30.00
10
0913606147
ref: 10
SCREW(6X12)
€ 2.00
11
0926225006
ref: 11
BEARING(25X47X8)
€ 24.00
12
0926325018
ref: 12
BEARING(25X32X12)
€ 17.50
13
2535035F00
ref: 13
STOPPER,SHIFT CAM
€ 18.00
14
2535503G00
ref: 14
SPRING,SHIFT CAM STOPPER
€ 3.00
15
0911106041
ref: 15
BOLT(6X14.3)
€ 3.00
16
0821106141
ref: 16
WASHER
€ 2.50
17
2551040F00
ref: 17
SHAFT,GEAR SHIFT
€ 74.50
18
2551206G10
ref: 18
PLATE,GEAR SHIFT CAM DRIVE
€ 20.00
19
2567135F00
ref: 19
STOPPER,GEAR SHIFT ARM
€ 2.50
20
0916014016
ref: 20
WASHER(14X29X0.8)
€ 1.50
21
0918114167
ref: 21
SHIM(14X22X1)
€ 3.50
22
0926314027
ref: 22
BEARING(14X20X12)
€ 11.00
23
0928314006
ref: 23
SEAL,OIL(14X22X6)
€ 6.50
24
0944017009
ref: 24
SPRING
€ 1.50
25
0944420001
ref: 25
SPRING
€ 5.00
26
0833131146
ref: 26
08331-3114A
CIRCLIP
€ 2.00
27
2552016G20
ref: 27
ARM,GEAR SHIFT LINK
€ 86.00
28
2552647000
ref: 28
COVER,DUST
€ 3.50
29-1
2552507A10
ref: 29-1
ROD,GEAR SHIFT LINK(L:165)
€ 12.00
29-2
2552519D20
ref: 29-2
ROD,GEAR SHIFT LINK
€ 9.50
30
2560041G00
ref: 30
LEVER ASSY,GEAR SHIFT
€ 108.00
31
2552647000
ref: 31
COVER,DUST
€ 3.50
32
2565220C00
ref: 32
RUBBER,GEAR SHIFT PEDAL
€ 8.00
33
0910306212
ref: 33
BOLT(6X25)
€ 2.50
34
0914006025
ref: 34
NUT
€ 2.00
35
083100006A
ref: 35
NUT
€ 2.00
36
3773041G01
ref: 36
SENSOR ASSY,GEAR POSITION
€ 125.50
37
0910605023
ref: 37
BOLT(5X16)
€ 2.50
38
0928026007
ref: 38
O RING(D:2.4,ID:25.7)
€ 6.50
