Buy Suzuki GSXR Parts Online


CAM SHAFT - VALVE

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

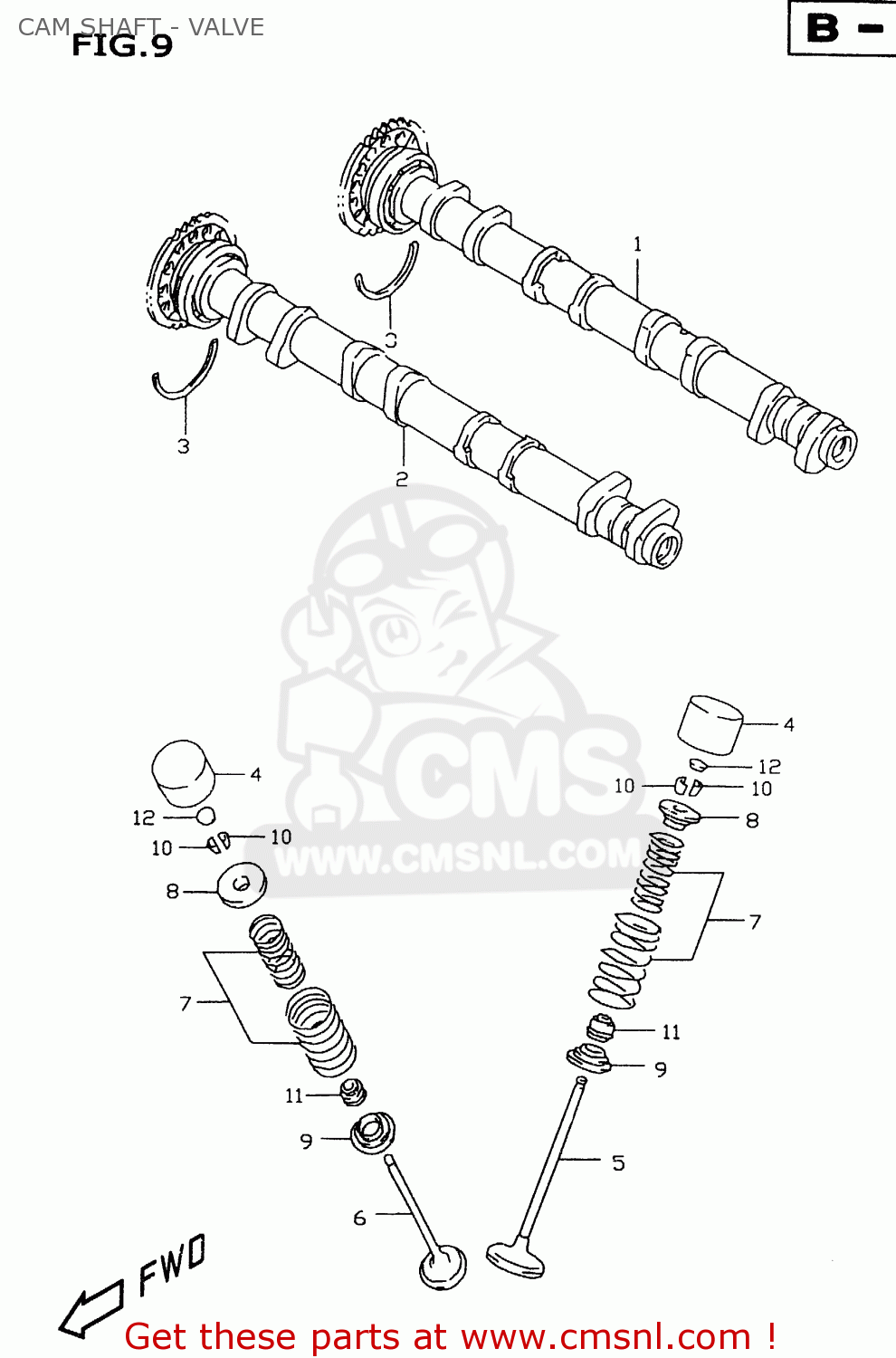

Cam shaft - valve diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

CAM SHAFT - VALVE GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CAM SHAFT - VALVE GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CAM SHAFT - VALVE GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1271034E00
ref: 1-1
MODEL V
CAMSHAFT,INTAKE
€ 416.50
1-2
1271034E20
ref: 1-2
MODEL W
CAMSHAFT COMP,INTAKE
€ 312.50
2-1
1272034E00
ref: 2-1
MODEL V
CAMSHAFT,EXHAUST
1272034E00
€ 330.00
2-2
1272034E10
ref: 2-2
MODEL W
CAMSHAFT,EXHAUST
1272034E10
€ 328.00
3
0939047002
ref: 3
C RING
0939047002
€ 2.50
4
1289117E00
ref: 4
TAPPET
1289117E00
€ 55.00
5-1
1291134E00
ref: 5-1
MODEL V
VALVE,INTAKE
1291134E00
€ 24.50
5-2
1291134E10
ref: 5-2
MODEL W
VALVE,INTAKE
1291134E10
€ 24.50
6
1291234E00
ref: 6
VALVE,EXHAUST
1291234E00
€ 35.00
7
1292033E10
ref: 7
SPRING SET,VALVE
1292033E10
€ 14.00
8
1293133E00
ref: 8
RETAINER,VALVE SPRING
1293133E00
€ 15.50
9
1293339E00
ref: 9
SEAT,VALVE SPRING
€ 5.50
10
1293217E50
ref: 10
COTTER VALVE
1293217E50
€ 2.50
11
0928904002
ref: 11
SEAL,OIL(4.5X10X8)
0928904002
€ 7.50
12-1
1289205C00120
ref: 12-1
SHIM,TAPPET
€ 7.00
12-2
1289205C00125
ref: 12-2
SHIM,TAPPET
€ 7.00
12-3
1289205C00130
ref: 12-3
SHIM,TAPPET
€ 7.00
12-4
1289205C00135
ref: 12-4
SHIM,TAPPET
€ 7.50
12-5
1289205C00140
ref: 12-5
SHIM,TAPPET
1289205C00140
€ 7.50
12-6
1289205C00145
ref: 12-6
SHIM,TAPPET
1289205C00145
€ 7.50
12-7
1289205C00150
ref: 12-7
SHIM,TAPPET
1289205C00150
€ 7.50
12-8
1289205C00155
ref: 12-8
SHIM,TAPPET
1289205C00155
€ 7.50
12-9
1289205C00160
ref: 12-9
SHIM,TAPPET
1289205C00160
€ 7.50
12-10
1289205C00165
ref: 12-10
SHIM,TAPPET
1289205C00165
€ 7.50
12-11
1289205C00170
ref: 12-11
SHIM,TAPPET
1289205C00170
€ 7.50
12-12
1289205C00175
ref: 12-12
SHIM,TAPPET
1289205C00175
€ 7.00
12-13
1289205C00180
ref: 12-13
SHIM,TAPPET
1289205C00180
€ 7.50
12-14
1289205C00185
ref: 12-14
SHIM,TAPPET
1289205C00185
€ 7.00
12-15
1289205C00190
ref: 12-15
SHIM,TAPPET
1289205C00190
€ 7.00
12-16
1289205C00195
ref: 12-16
SHIM,TAPPET
€ 7.00
12-17
1289205C00200
ref: 12-17
SHIM,TAPPET
1289205C00200
€ 7.00
12-18
1289205C00205
ref: 12-18
SHIM,TAPPET
€ 7.00
12-19
1289205C00210
ref: 12-19
SHIM,TAPPET
€ 7.00
12-20
1289205C00215
ref: 12-20
SHIM,TAPPET
1289205C00215
€ 7.00
12-21
1289205C00220
ref: 12-21
SHIM,TAPPET
€ 7.00
13
1280005820
ref: 13
OPT NOT SHOWN
SHIM SET,TAPPET
€ 846.50
14
9900069491
ref: 14
OPT NOT SHOWN
CASE,TAPPET SHIM
9900069491
€ 89.00
