CRANKCASE COVER

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

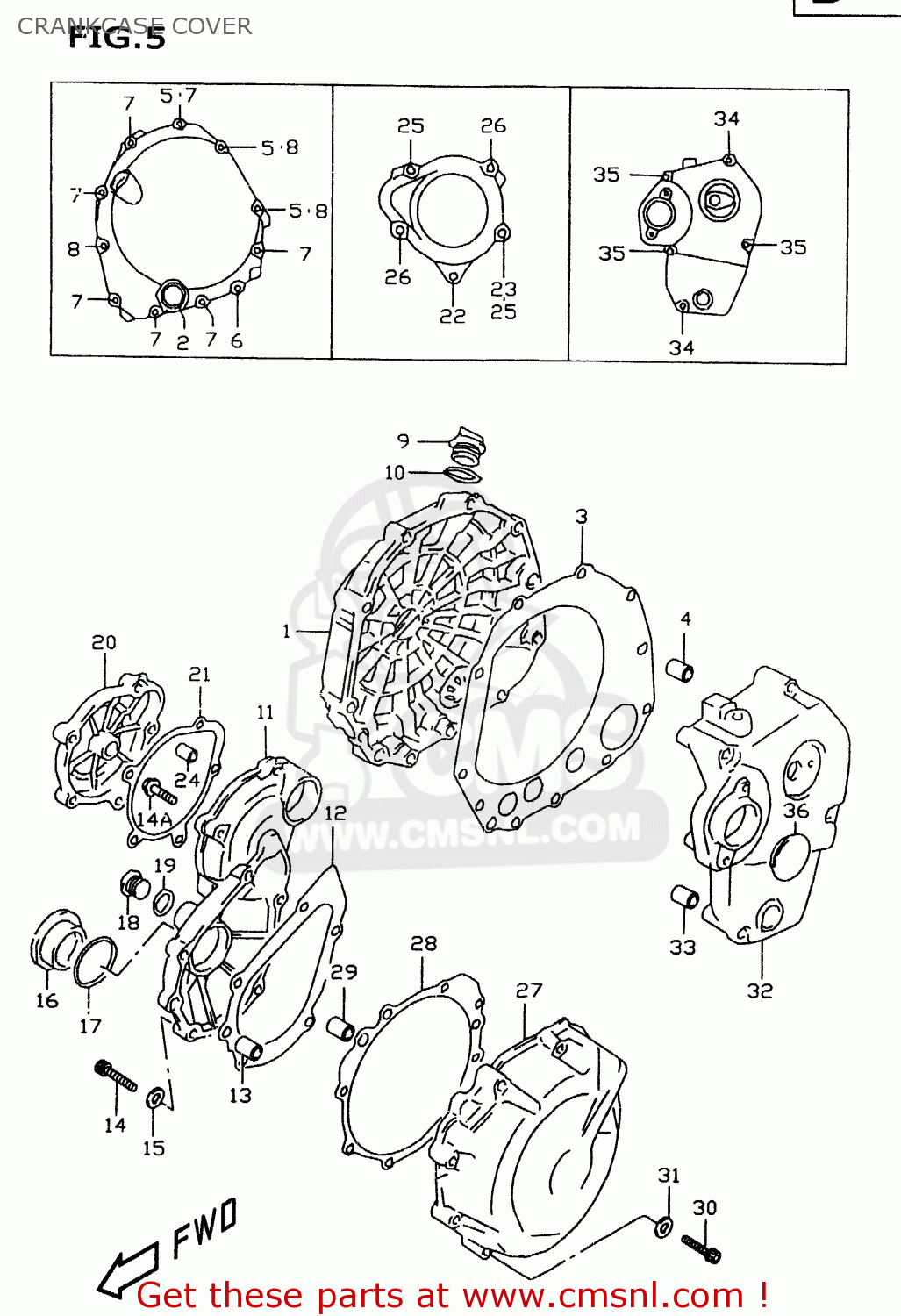

Crankcase cover diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

CRANKCASE COVER GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CRANKCASE COVER GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CRANKCASE COVER GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1134033E00
ref: 1
COVER,CLUTCH
1134033E00
€ 195.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148233E01
ref: 3
GASKET,CLUTCH COVER (NAS)
1148233E01
€ 16.00
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6-1
0713006253
ref: 6-1
MODEL V
BOLT,CL.COVER
0713006253
€ 3.00
6-2
0712006253
ref: 6-2
MODEL W
BOLT,OIL PAN
0712006253
€ 2.50
7-1
0713006303
ref: 7-1
MODEL V
BOLT
0713006303
€ 3.00
7-2
0712006303
ref: 7-2
MODEL W
BOLT
0712006303
€ 3.00
8-1
0713006403
ref: 8-1
MODEL V
BOLT
0713006403
€ 3.50
8-2
0712006403
ref: 8-2
MODEL W
BOLT
0712006403
€ 3.50
9
0925920008
ref: 9
PLUG
0925920008
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
11-1
1138133E01
ref: 11-1
MODEL V
COVER,STARTER CLUTCH
€ 196.00
11-2
1138133E50
ref: 11-2
MODEL W
COVER,STARTER CLUTCH
1138133E50
€ 197.00
12
1149134E00
ref: 12
GASKET,STARTER CLUTCH COVER
1149134E00
€ 8.00
13
0421109149
ref: 13
PIN
0421109149
€ 2.00
14-1
0713006253
ref: 14-1
MODEL V
BOLT,CL.COVER
0713006253
€ 3.00
14-2
0712006253
ref: 14-2
MODEL W
BOLT,OIL PAN
0712006253
€ 2.50
14A
0712006353
ref: 14A
MODEL W
BOLT
0712006353
€ 3.50
15
0916806024
ref: 15
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
16
092593601620H
ref: 16
PLUG(SILVER)
092593601620H
€ 10.50
17
0928033004
ref: 17
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
18
0924816010
ref: 18
PLUG
0924816010
€ 4.50
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
20
1138233E00
ref: 20
CAP,STARTER IDLE GEAR
1138233E00
€ 66.50
21
1149233E00
ref: 21
GASKET,START IDLE GEAR CAP (NAS)
1149233E00
€ 6.50
22-1
0713006553
ref: 22-1
MODEL V
BOLT
0713006553
€ 2.50
22-2
0712006553
ref: 22-2
MODEL W
BOLT
0712006553
€ 3.00
23
0916806024
ref: 23
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
24
0421109149
ref: 24
PIN
0421109149
€ 2.00
25-1
0713006253
ref: 25-1
MODEL V
BOLT,CL.COVER
0713006253
€ 3.00
25-2
0712006253
ref: 25-2
MODEL W
BOLT,OIL PAN
0712006253
€ 2.50
26-1
0713006353
ref: 26-1
MODEL V
BOLT
€ 3.50
26-2
0712006353
ref: 26-2
MODEL W
BOLT
0712006353
€ 3.50
27
1135133E01
ref: 27
COVER,MAGNETO
1135133E01
€ 103.00
28
1148333E01
ref: 28
GASKET,MAGNETO COVER (NAS)
1148333E01
€ 11.00
29
0421109149
ref: 29
PIN
0421109149
€ 2.00
30-1
0713006303
ref: 30-1
MODEL V
BOLT
0713006303
€ 3.00
30-2
0712006303
ref: 30-2
MODEL W
BOLT
0712006303
€ 3.00
31
0916806024
ref: 31
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
32
1136133E03
ref: 32
COVER,ENGINE SPROCKET
1136133E03
€ 169.00
33
0421109149
ref: 33
PIN
0421109149
€ 2.00
34
0713006553
ref: 34
BOLT
0713006553
€ 2.50
35
0713006653
ref: 35
BOLT
0713006653
€ 4.00
36
0925030003
ref: 36
CAP(OD:36)
0925030003
€ 4.00
