SEAT

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

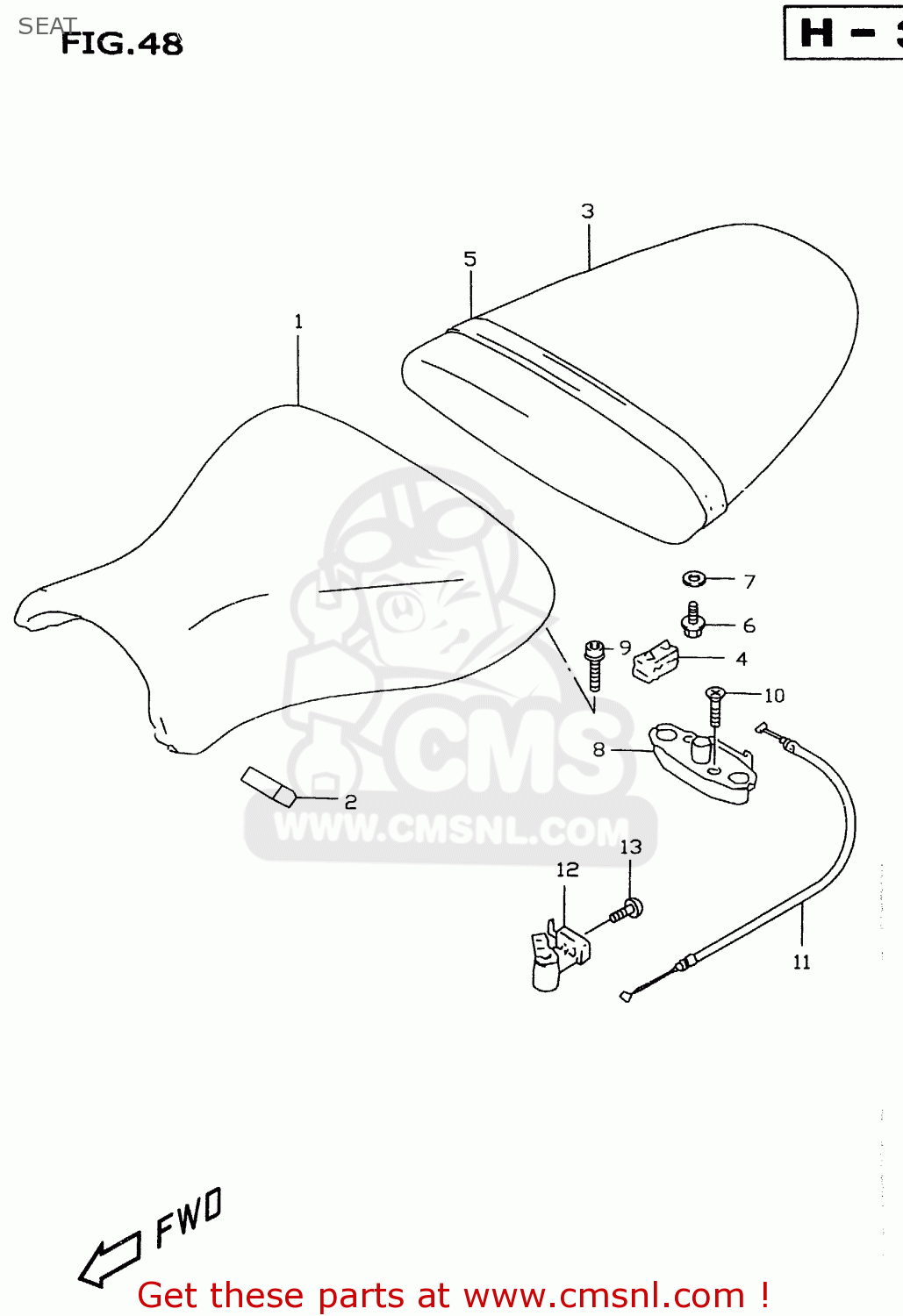

Seat diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

SEAT GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

SEAT GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

4510033E20R42
ref: 1

SEAT ASSY(BLACK)

€ 179.50

2

4514931E00
ref: 2

CUSHION,FR(20X40X15)

€ 4.00

3

4530033E20R42
ref: 3

SEAT ASSY,PILLION

€ 175.00

4

4514931300
ref: 4

CUSHION,SEAT(40X20X15)

€ 2.00

5

4518033E00R42
ref: 5

BAND,SEAT

€ 14.50

6

0155006203
ref: 6

BOLT

€ 2.50

7

0916006088
ref: 7

WASHER(6.5X20X1.6)

€ 2.00

8

4522020A01
ref: 8

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

9

0910606064
ref: 9

BOLT(6X18)

€ 6.00

10

0212206303
ref: 10

SCREW

€ 2.00

11

4528017E00
ref: 11

CABLE,SEAT LOCK

€ 16.50

12

9570031840
ref: 12

LOCK SET,SEAT

€ 57.00

13

0214205103
ref: 13

SCREW

€ 2.50
