RADIATOR HOSE

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

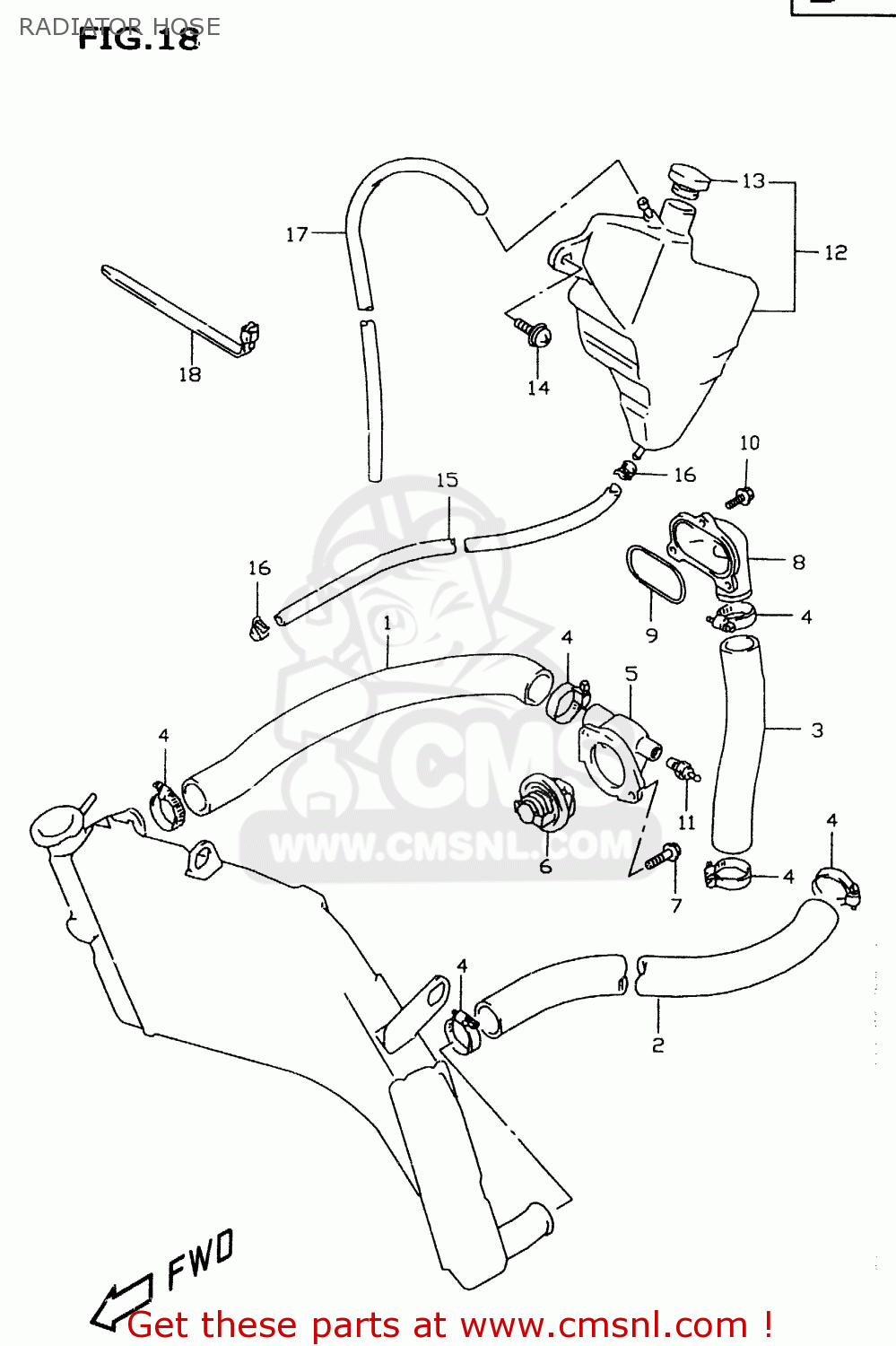

Radiator hose diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

RADIATOR HOSE GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

RADIATOR HOSE GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1785133E00
ref: 1

HOSE,RADIATOR INLET

€ 30.00

2

1785233E00
ref: 2

HOSE,RADIATOR OUTLET

€ 32.50

3

1785333E00
ref: 3

HOSE,CYLINDER INLET

€ 18.00

4

0940238511
ref: 4

CLAMP

€ 10.50

5

1766233E00
ref: 5

CONNECTOR,THERMOSTAT INLET

€ 30.50

6-1

1767032C01
ref: 6-1
MODEL V

THERMOSTAT,WATER

€ 41.00

6-2

1767032C10
ref: 6-2
MODEL W

THERMOSTAT,WATER

€ 41.00

7

0712006203
ref: 7

BOLT

€ 3.50

8

1786133E00
ref: 8

CONNECTOR,CYLINDER WATER,INTAKE

€ 19.00

9

1786333E00
ref: 9

O RING,CYL WATER CONNECTOR

€ 4.50

10

0155006203
ref: 10

BOLT

€ 2.50

11

3485033E00
ref: 11

GAUGE ASSY,WATER TEMP

€ 56.50

12

1791033E00
ref: 12

TANK ASSY,RESERVOIR

€ 112.50

13

1793212C00
ref: 13

CAP,RESERVOIR TANK

€ 3.50

14

0913606022
ref: 14

SCREW(6X20)

€ 2.50

15

1798112C00
ref: 15

HOSE,RESERVOIR TANK INLET

€ 27.00

16

0940108411
ref: 16

CLIP

€ 3.00

17

1798238810
ref: 17

HOSE,RESERVOIR TANK OUTLET

€ 16.00

18

0940718403
ref: 18

CLAMP L:165

€ 2.50
