MUFFLER

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

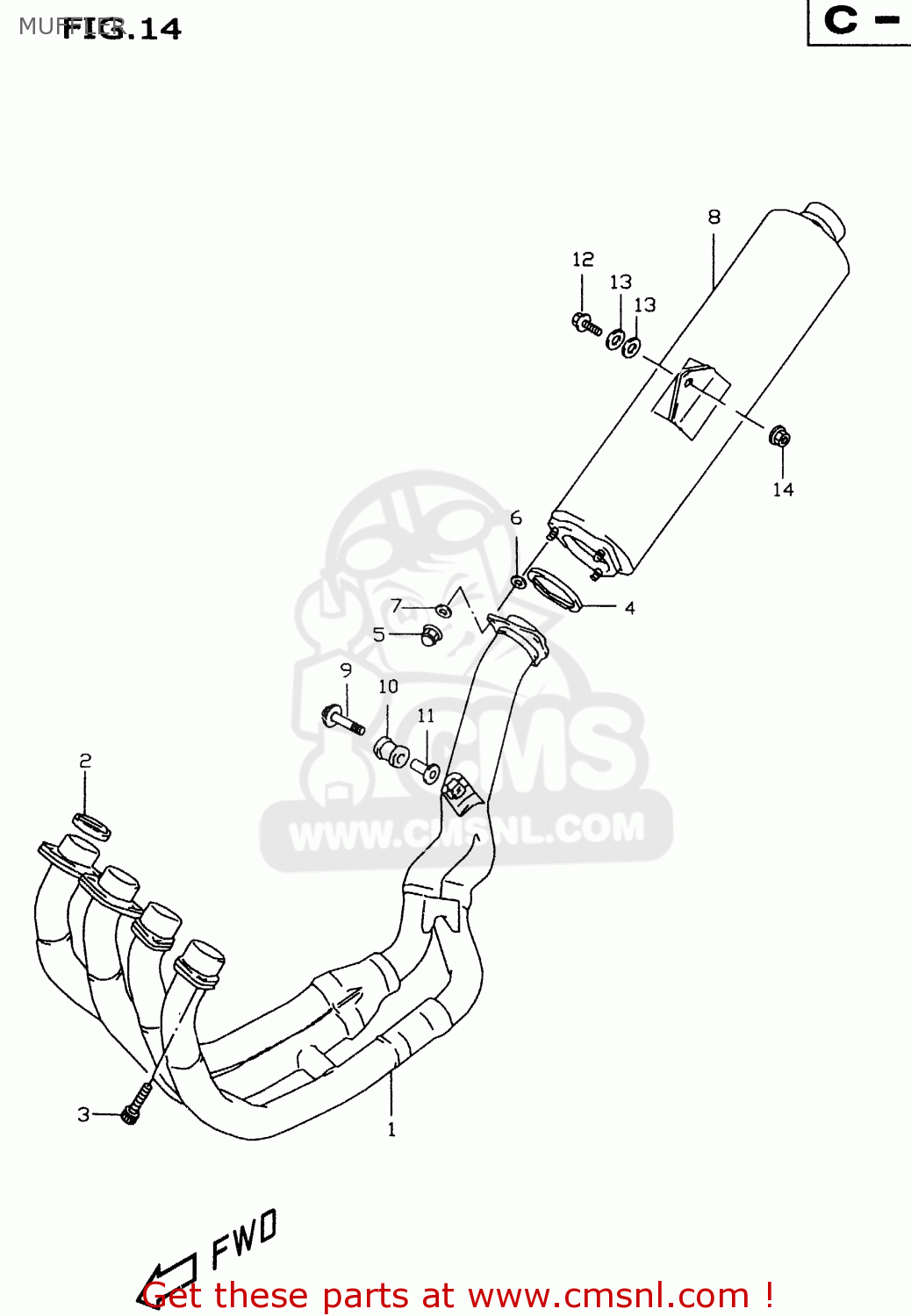

Muffler diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

1410034E00
ref: 1-1
MODEL V

EXHAUST COMP

€ 778.00

1-2

1410034E20
ref: 1-2
MODEL W

EXHAUST

€ 750.50

1418146E00
ref: 2

GASKET,EXHAUST PIPE

€ 6.50

0713008253
ref: 3

BOLT

€ 3.50

1418133E00
ref: 4

GASKET,MUFFLER JOINT

€ 6.50

0915908101
ref: 5

NUT

€ 7.50

0916008114
ref: 6

WASHER(8.5X18X1.6)

€ 2.50

0928008012
ref: 7

O RING(D:1.9,ID:7.8)

€ 4.00

8-1

1431034E00H01
ref: 8-1
MODEL V <- 14310-34E

BODY,MUFFLER

€ 703.50

8-2

1431033E00H01
ref: 8-2
MODEL W

BODY,MUFFLER

€ 673.50

0911808152
ref: 9

BOLT 8X45

€ 5.00

0932012048
ref: 10

CUSHION

€ 5.00

0918008152
ref: 11

SPACER(8.6X12X24.2)

€ 6.00

0155008357
ref: 12

BOLT

€ 3.50

13-1

0916008021
ref: 13-1
MODEL V

WASHER (8.2X24X1.6)

€ 2.00

13-2

0916008131
ref: 13-2
MODEL W

WASHER (8.5X24X1.6)

€ 2.00

0836125088
ref: 14

NUT

€ 2.50
