WIRING HARNESS

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

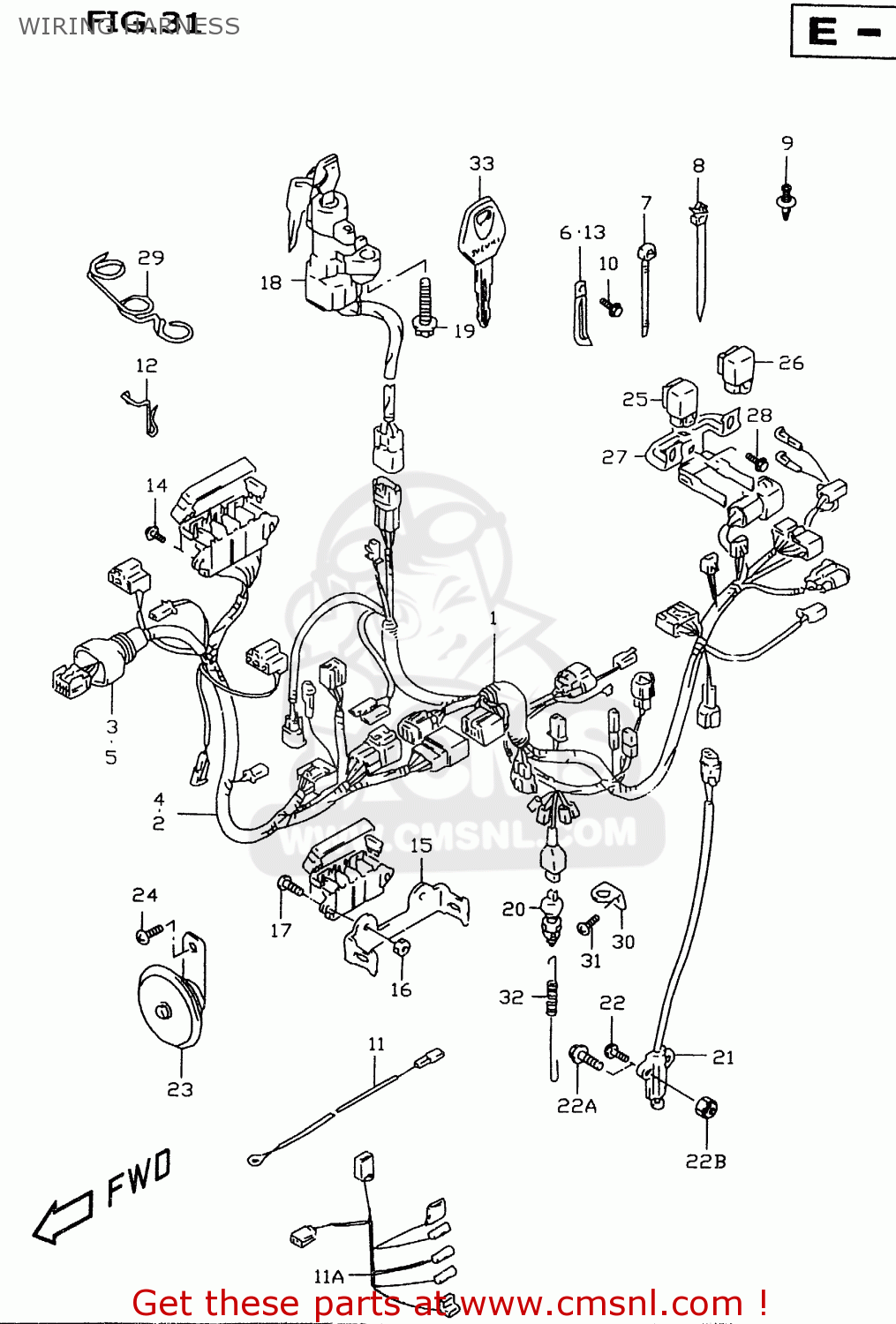

Wiring harness diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

WIRING HARNESS GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
WIRING HARNESS GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
WIRING HARNESS GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3661034E00
ref: 1-1
MODEL V
HARNESS,WIRING NO.1
€ 449.00
1-2
3661034E10
ref: 1-2
MODEL W
HARNESS,WIRING NO.1
€ 495.50
2-1
3662033E10
ref: 2-1
MODEL V
HARNESS,WIRING NO.2
3662033E10
€ 274.00
2-2
3662034E10
ref: 2-2
MODEL W
HARNESS,WIRING NO.2
3662034E10
€ 238.00
2-3
3662034E20
ref: 2-3
MODEL W E4, E18, E22
HARNESS, WIRING NO. 2
€ 267.50
3
3661833E00
ref: 3
COVER,SPEEDOMETER COUPLER
€ 5.50
4-1
3662033E20
ref: 4-1
MODEL V E4, E18, E22
HARNESS, WIRING NO. 2
€ 270.00
4-2
3662034E20
ref: 4-2
MODEL W E4, E18, E22
HARNESS, WIRING NO. 2
€ 267.50
5
3661833E00
ref: 5
COVER,SPEEDOMETER COUPLER
€ 5.50
6-1
0940406429
ref: 6-1
CLAMP(L:45)
€ 2.50
6-2
0940406432
ref: 6-2
<-09404-06431
CLAMP(L:65)
0940406432
€ 2.50
7-1
0940714403
ref: 7-1
CLAMP(L:125)
0940714403
€ 2.50
7-2
0940725401
ref: 7-2
CLAMP(L:235)
0940725401
€ 4.00
8
0940717401
ref: 8
CLAMP
0940717401
€ 5.00
9
09409073055PK
ref: 9
CLIP(BLACK)
09409073055PK
€ 1.50
10
0155006103
ref: 10
BOLT
0155006103
€ 2.50
11
3685117E10
ref: 11
WIRE,OIL PRESSURE SWITCH LEAD
3685117E10
€ 13.50
11A
3685633E10
ref: 11A
WIRE,CARB HEATER
3685633E10
€ 25.50
12
3674533E00
ref: 12
MODEL V
STOPPER,FUSE BOX
€ 7.00
13
0940406433
ref: 13
MODEL V
CLAMP(L:80)
0940406433
€ 3.00
14
0214206203
ref: 14
MODEL V
SCREW
0214206203
€ 2.00
15
3674433E00
ref: 15
MODEL W
BRACKET,FUSE BOX
3674433E00
€ 9.50
16
9461927A00
ref: 16
MODEL W
NUT,COWLING SCREEN
9461927A00
€ 6.50
17
0214205123
ref: 17
MODEL W
SCREW 5X12
0214205123
€ 1.50
18-1
3710033E01
ref: 18-1
MODEL V
LOCK ASSY,STEERING
3710033E01
€ 170.00
18-2
3710033E20
ref: 18-2
MODEL W
LOCK ASSY,STEERING
3710033E20
€ 223.50
18-3
3710033E11
ref: 18-3
MODEL V E24
LOCK ASSY,STEERING
€ 160.00
18-4
3710033E30
ref: 18-4
MODEL W E24
LOCK ASSY, STEERING
€ 142.50
19
0913908016
ref: 19
BOLT(8X20)
0913908016
€ 3.50
20
3774024A00
ref: 20
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
21
3784026X50
ref: 21
SWITCH ASSY,SIDE STAND WARNING
3784026X50
€ 100.50
22
0910306130
ref: 22
MODEL V
BOLT 6X20
€ 2.50
22A
0155006203
ref: 22A
MODEL W
BOLT
0155006203
€ 2.50
22B
0831921063
ref: 22B
MODEL W
NUT
0831921063
€ 2.50
23
3850020E10
ref: 23
HORN ASSY
3850020E10
€ 75.50
24
0912508003
ref: 24
SCREW(8X14)
0912508003
€ 1.50
25
3874024X50
ref: 25
RELAY ASSY
3874024X50
€ 37.50
26
3874024X50
ref: 26
RELAY ASSY
3874024X50
€ 37.50
27
3893033E00
ref: 27
BRACKET,SIDE STAND RELAY
€ 8.00
28
0155006123
ref: 28
BOLT
0155006123
€ 2.50
29
3661933E00
ref: 29
GUIDE,WIRING HARNESS
3661933E00
€ 10.50
30
4325121E00
ref: 30
BRACKET,STOP LAMP SWITCH
4325121E00
€ 3.50
31
0214206083
ref: 31
SCREW
0214206083
€ 1.50
32
0944306005
ref: 32
SPRING
0944306005
€ 6.00
33
3714633E00
ref: 33
OPT
KEY,BLANK
3714633E00
€ 13.00
