CARBURETOR FITTINGS (MODEL V)

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

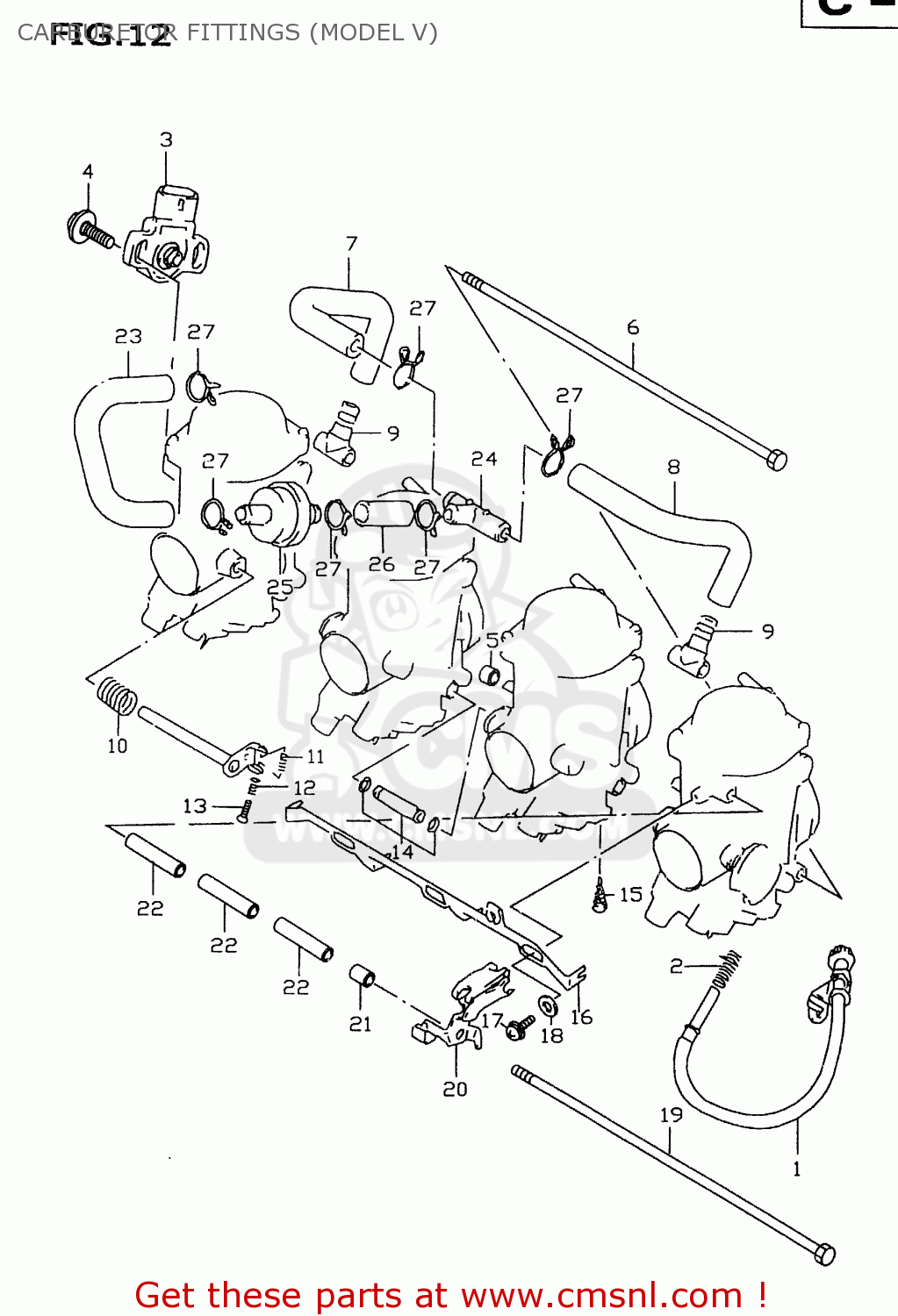

Carburetor fittings (model v) diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

CARBURETOR FITTINGS (MODEL V) GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CARBURETOR FITTINGS (MODEL V) GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CARBURETOR FITTINGS (MODEL V) GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1326734E00
ref: 1
ADJUSTER
€ 64.00
2
1327133C00
ref: 2
SPRING
1327133C00
€ 4.50
3
1355013D60
ref: 3
SENSOR ASSY,THROTTLE
1355013D60
€ 129.50
4
1360255A00
ref: 4
SCREW, SENSOR
1360255A00
€ 3.00
5
1368534E20
ref: 5
PIPE
1368534E20
€ 3.00
6
1361234E00
ref: 6
BOLT
€ 12.50
7
1368333E10
ref: 7
HOSE
1368333E10
€ 27.50
8
1368333E00
ref: 8
HOSE
1368333E00
€ 27.50
9
1368334C00
ref: 9
3 WAY
1368334C00
€ 10.50
10
1357306C10
ref: 10
SPRING
1357306C10
€ 7.00
11
1326896110
ref: 11
SPRING,THROTTLE SCREW
€ 4.50
12
1327144B00
ref: 12
SPRING
1327144B00
€ 4.00
13
1326744B00
ref: 13
SCREW
1326744B00
€ 3.50
14
1368531310
ref: 14
NIPPLE,CARBURETOR
1368531310
€ 18.00
15
1323626D00
ref: 15
FILTER
1323626D00
€ 10.00
16
1341333E00
ref: 16
LEVER,STARTER
1341333E00
€ 33.50
17
0214204083
ref: 17
SCREW
0214204083
€ 1.50
18
1355733E00
ref: 18
PACKING
1355733E00
€ 3.00
19
1361233E00
ref: 19
BOLT
€ 18.00
20
1356534E00
ref: 20
BRACKET
€ 15.00
21
1368534E10
ref: 21
PIPE
1368534E10
€ 4.00
22
1368534E00
ref: 22
PIPE
1368534E00
€ 9.00
23
1368433E00
ref: 23
HOSE,AIR VENT(NO.1)
1368433E00
€ 11.50
24
1385518A03
ref: 24
JOINT
1385518A03
€ 4.00
25
1541033E00
ref: 25
FILTER,AIR VENT
1541033E00
€ 15.00
26
0935211153600
ref: 26
L:600->30
HOSE(11X15X600)
0935211153600
€ 13.50
27
0940114401
ref: 27
CLIP
0940114401
€ 2.00
