CLUTCH

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

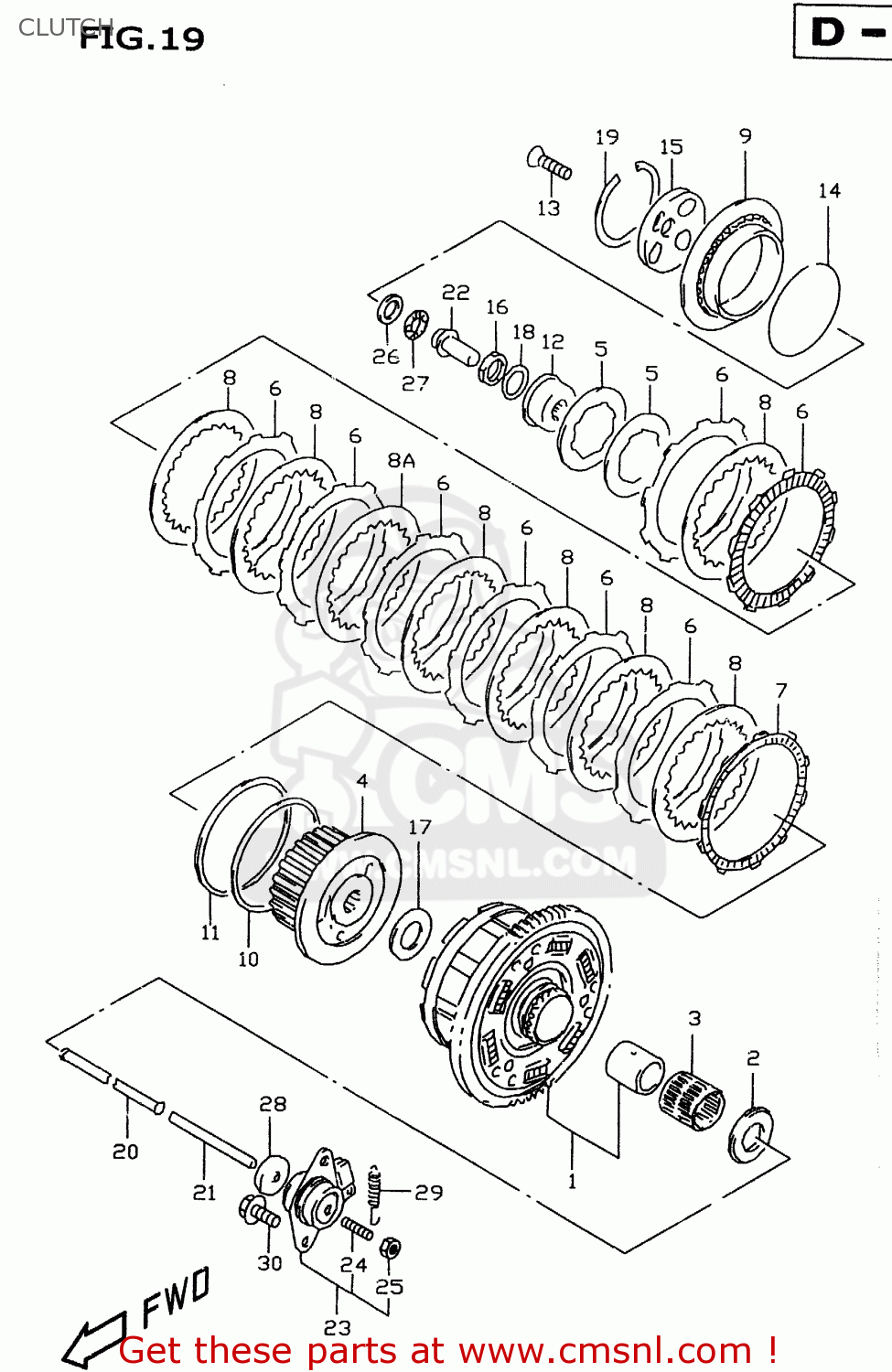

Clutch diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

CLUTCH GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CLUTCH GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
CLUTCH GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
2120031880
ref: 1-1
MODEL V
GEAR ASSEMBLY,PRIMARY DRIVE
€ 377.00
1-2
2120131810
ref: 1-2
MODEL W
GEAR ASSY,PRI DRIVEN
€ 337.50
2
0916025037
ref: 2
WASHER(25X54X2.5)
0916025037
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4
2141031E40
ref: 4
HUB,CLUTCH SLEEVE
2141031E40
€ 87.50
5
2141331E40
ref: 5
SPRING,CLUTCH
2141331E40
€ 15.50
6-1
2144131E40
ref: 6-1
MODEL V, <-21441-31E
PLATE,CLUTCH DRIVE NO (NAS)
2144131E40
€ 21.00
6-2
2144131E50
ref: 6-2
MODEL W
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144131E50
€ 21.00
7-1
2144231E00
ref: 7-1
MODEL V
PLATE,CLUTCH DRIVE
2144231E00
€ 25.50
7-2
2144231E20
ref: 7-2
MODEL W
PLATE,CLUTCH DRIVE NO (NAS)
2144231E20
€ 19.00
8
2145131E00
ref: 8
T:1.6
PLATE,CLUTCH DRIVEN NO.1
2145131E00
€ 7.00
8A
2145131E10
ref: 8A
T:2.0
PLATE,CLUTCH DRIVEN NO.2
2145131E10
€ 7.50
9-1
2146231E40
ref: 9-1
MODEL V
DISC,CLUTCH PRESSURE
2146231E40
€ 54.00
9-2
2146231E60
ref: 9-2
MODEL W
DISC,CLUTCH PRESSURE
€ 54.00
10
2147131E20
ref: 10
SEAT,CLUTCH PLATE WAVE WASHER
2147131E20
€ 12.00
11-1
2147231E20
ref: 11-1
MODEL V
WASHER,CLUTCH PLATE WAVE
2147231E20
€ 15.00
11-2
2147231E01
ref: 11-2
MODEL W
WASHER,CLUTCH PLATE WAVE
2147231E01
€ 15.00
12
2161131E20
ref: 12
HOLDER,CLUTCH SPRING
2161131E20
€ 39.00
13
2161431E20
ref: 13
SCREW,CLUTCH SPRING HOLDER
2161431E20
€ 3.50
14
2162331E20
ref: 14
SEAT,CLUTCH SPRING
2162331E20
€ 5.50
15
2146340C01
ref: 15
LIFTER,CLUTCH PRESSURE DISC
2146340C01
€ 33.00
16
0915924010
ref: 16
NUT
0915924010
€ 11.00
17
0821125505
ref: 17
WASHER
0821125505
€ 6.00
18
0916424006
ref: 18
24.2X35X2
WASHER
0916424006
€ 4.00
19
0938184002
ref: 19
CIRCLIP
0938184002
€ 10.50
20
2311027A00
ref: 20
ROD,CLUTCH
2311027A00
€ 17.00
21
2311134C00
ref: 21
ROD,CLUTCH PUSH,L
2311134C00
€ 15.50
22
2312131E10
ref: 22
PIECE,CLUTCH PUSH
€ 18.50
23
2320020C00
ref: 23
SCREW ASSY,CLUTCH RELEASE
2320020C00
€ 74.50
24
0913406010
ref: 24
SCREW(6X25)
0913406010
€ 3.00
25
0831000067
ref: 25
NUT
0831000067
€ 2.50
26
0916015045
ref: 26
15.5X28X1
WASHER(15.5X28X1)
0916015045
€ 4.00
27
0926315003
ref: 27
15X28X2
BEARING(15X28X2)
0926315003
€ 7.00
28
0928506015
ref: 28
6X34X5.5
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
29
0944309044
ref: 29
SPRING
0944309044
€ 3.50
30
0155006163
ref: 30
BOLT
0155006163
€ 2.50
