RADIATOR

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

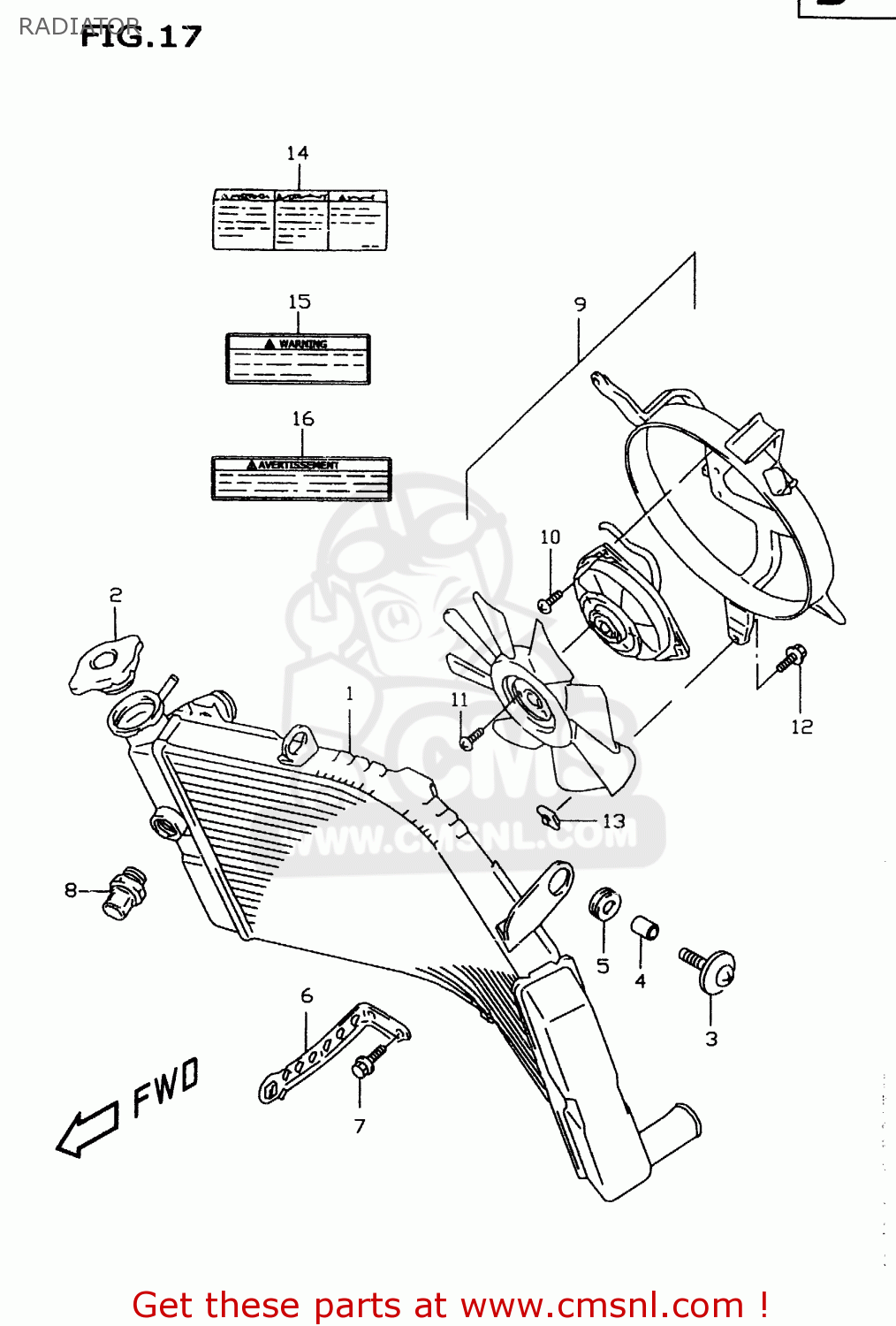

Radiator diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

RADIATOR GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

RADIATOR GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1771033E00
ref: 1

RADIATOR ASSY,WATER

€ 826.00

2

1773012C01
ref: 2

CAP,RADIATOR

€ 40.00

3

0911606143
ref: 3

BOLT 6X20

€ 2.00

4

0918006290
ref: 4

SPACER(6.5X10X12)

€ 2.50

5

0932010042
ref: 5

CUSHION

€ 4.00

6

1775033E00
ref: 6

BRACKET,RADIATOR LWR

€ 7.50

7

0155006123
ref: 7

BOLT

€ 2.50

8

1768033E00
ref: 8

SWITCH,RADIATOR FAN

€ 49.50

9

1780033E00
ref: 9

FAN ASSEMBLY,RADIATOR

€ 491.50

10

0214205083
ref: 10

SCREW

€ 2.00

11

0211204063
ref: 11

SCREW 4X6

€ 2.00

12

0155006103
ref: 12

BOLT

€ 2.50

13

1776239A00
ref: 13

NUT,RADIATOR COVER

€ 3.50

14

1799160B02
ref: 14
MODEL V

LABEL, COOLING FAN

€ 0.00

15

1799102F00
ref: 15
MODEL W

LABEL (COOLING FAN)

€ 4.00

16

1799102F10
ref: 16
MODEL W E4, E18, E34

LABEL,COOLING FAN

€ 6.50
