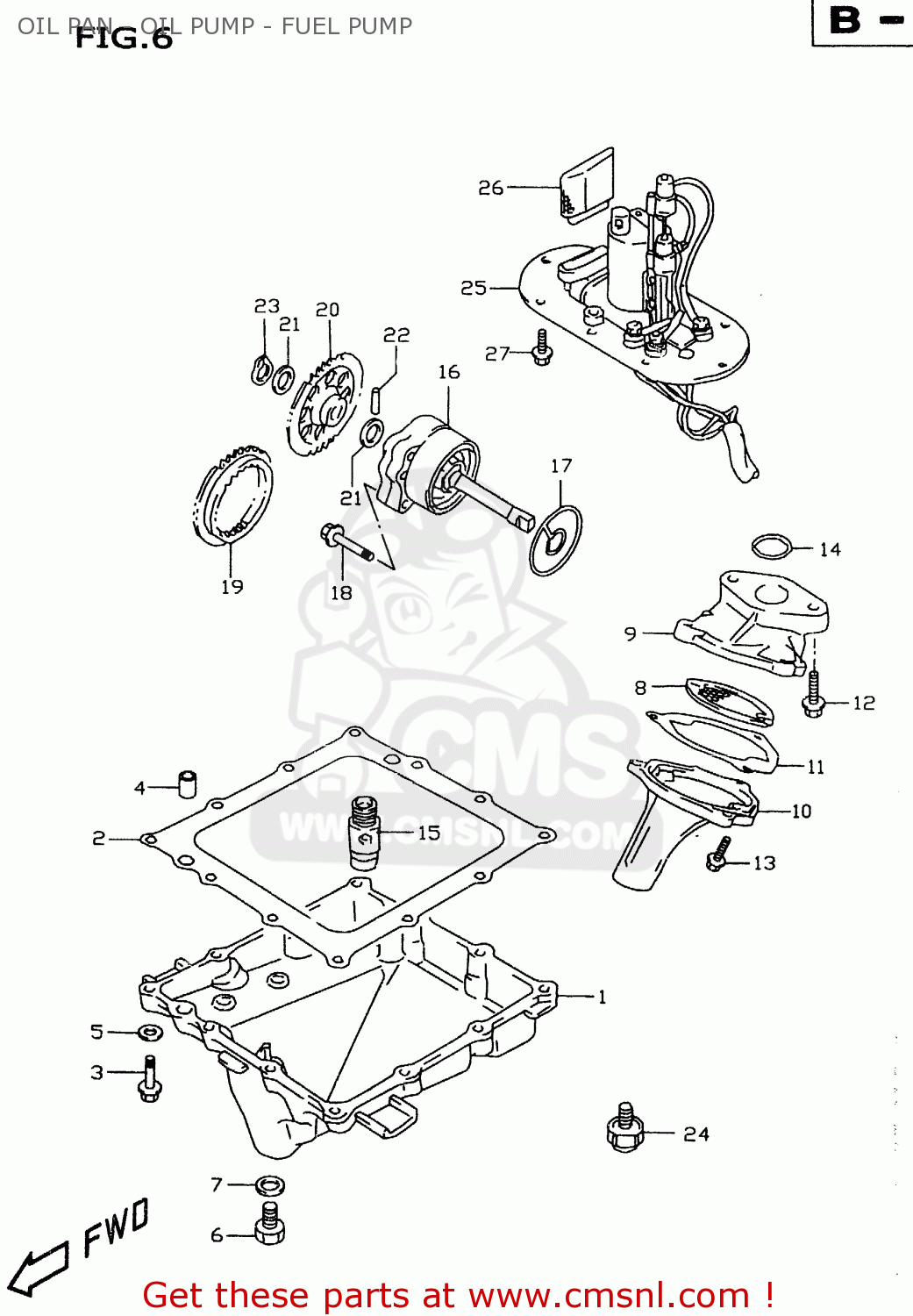

OIL PAN - OIL PUMP - FUEL PUMP - GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

ref

part #

description

quantity

1

1151133E00
ref: 1

PAN,OIL

€ 174.00

2

1148933E00
ref: 2

GASKET,OIL PAN (NAS)

€ 28.00

3

0154706303
ref: 3

BOLT,G/S SWITC

€ 3.00

4

0421109189
ref: 4

PIN

€ 2.00

5

0916806024
ref: 5

GASKET(5.8X11X1.2) (NAS)

€ 2.00

6

0924714001
ref: 6

PLUG

€ 5.00

7

0916814002
ref: 7

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

8

1652037400
ref: 8

STRAINER,ENGINE OIL

€ 7.00

9

1652533E00
ref: 9

PROTECTOR,OIL STRAINER

€ 21.50

10

1652633E00
ref: 10

COVER,OIL STRAINER

€ 20.50

11

1652733E00
ref: 11

GASKET,OIL STRAINER

€ 7.50

12

0155006253
ref: 12

BOLT

€ 2.50

13

0155006163
ref: 13

BOLT

€ 2.50

14

0928019008
ref: 14

O RING(D:2.62,ID:20.3)

€ 5.50

15

1644033E00
ref: 15

VALVE ASSY,OIL RELIEF

€ 51.50

16

1640033E00
ref: 16

PUMP ASSY,ENGINE OIL

€ 188.50

17

1649133E00
ref: 17

O RING,OIL PUMP

€ 5.50

18

0155006303
ref: 18

BOLT

€ 2.50

19-1

1632133E00
ref: 19-1
MODEL V

GEAR,OIL PUMP DRIVE (NT

€ 37.00

19-2

1632133E10
ref: 19-2
MODEL W

GEAR,OIL PUMP DRIVE

€ 37.00

20-1

1633219C00
ref: 20-1
MODEL V

GEAR,OIL PUMP DRIVEN(NT:37)

€ 60.00

20-2

1633133E00
ref: 20-2
MODEL W

GEAR,OIL PUMP DRIVEN

€ 39.50

21-1

0822112205
ref: 21-1
MODEL V

SHIM

€ 1.50

21-2

0918112158
ref: 21-2
MODEL W

SHIM(12X20X0.5)

€ 2.00

22

0926105006
ref: 22

PIN(5X18)

€ 1.50

23

0833131126
ref: 23

CIRCLIP,12 MM

€ 2.00

24

3782033D00
ref: 24

SWITCH ASSEMBLY,OIL PRESSURE

€ 29.00

25-1

1510033E00
ref: 25-1
MODEL V

PUMP ASSEMBLY,FUEL

€ 658.50

25-2

1510034E00
ref: 25-2
MODEL W

PUMP ASSY,FUEL

€ 658.50

26-1

1517033E00
ref: 26-1
MODEL V

STRAINER,FUEL PUMP

€ 39.00

26-2

1517034E00
ref: 26-2
MODEL W

STRAINER,FUEL PUMP

€ 39.00

27

0157005103
ref: 27

BOLT

€ 2.00
