Buy Suzuki GSXR Parts Online


SPEEDOMETER

GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

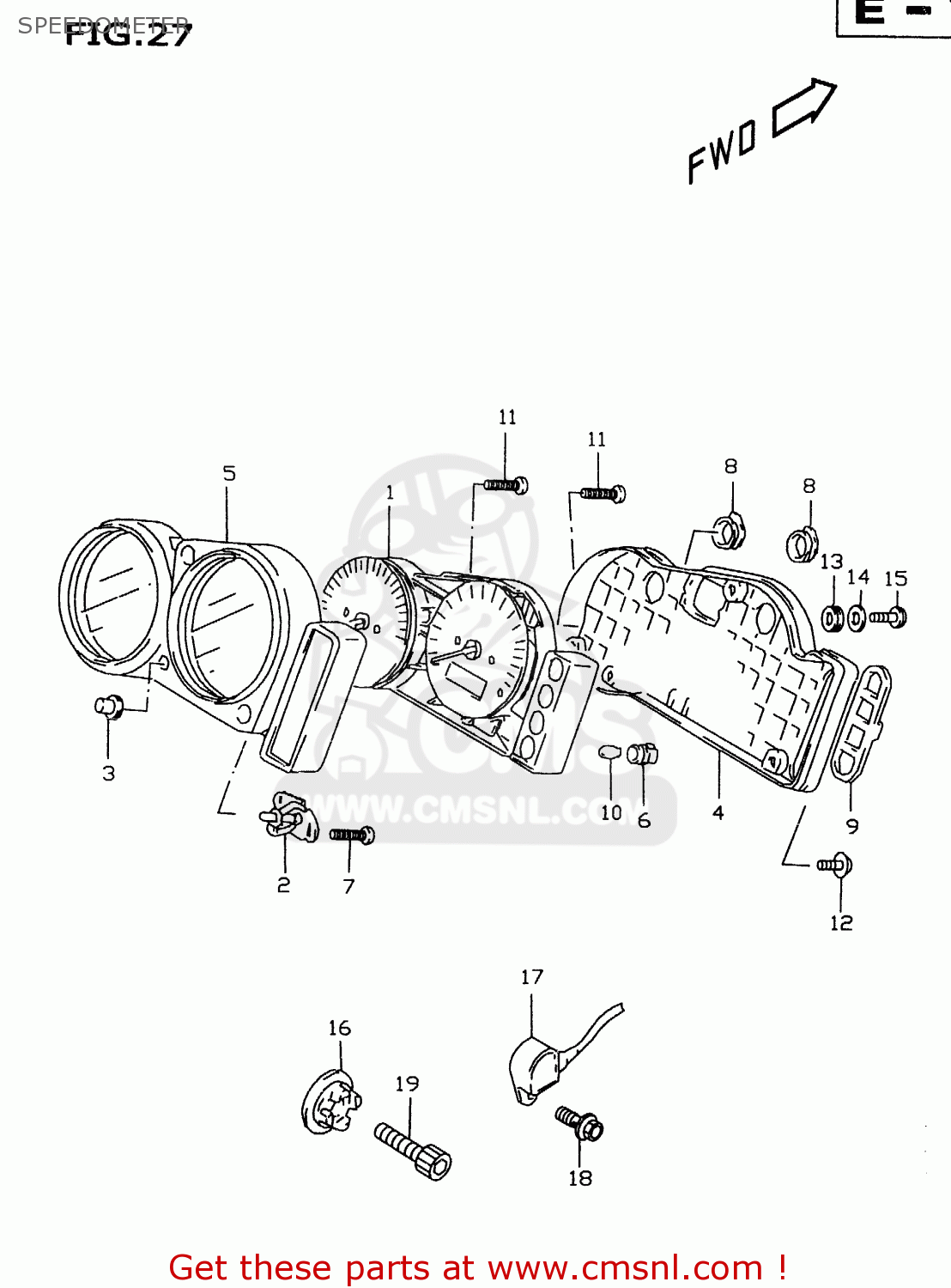

Speedometer diagram GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)

SPEEDOMETER GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
SPEEDOMETER GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
SPEEDOMETER GSXR600 1998 (W) (E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3412034E20
ref: 1-1
MODEL V
SPEED & TACHOMETER ASSY
€ 649.50
1-2
3412034E40
ref: 1-2
MODEL W
SPEED & TACHOMETER ASSY
€ 684.50
1-3
3412034E10
ref: 1-3
E4, E18, E22, E24, E
SPDOM & TACH A
€ 781.00
2
3412333E00
ref: 2
ATTACHMENT,SWITCH
3412333E00
€ 6.50
3
3412433E00
ref: 3
SWITCH,GUM
3412433E00
€ 5.50
4
3413033E01
ref: 4
CASE ASSY
3413033E01
€ 70.50
5
3415033E00
ref: 5
VISOR
3415033E00
€ 86.00
6
3417233E00
ref: 6
SOCKET(T:6.5)
3417233E00
€ 5.00
7
0913203005
ref: 7
SCREW(3X10)
0913203005
€ 1.50
8
3419833E00
ref: 8
MODEL V
CAP,BLIND NO.1
3419833E00
€ 3.50
9
3419833E10
ref: 9
CAP,BLIND NO.2
3419833E10
€ 8.50
10
0947112108
ref: 10
BULB(12V1.7W,T6.5)
0947112108
€ 2.00
11-1
0352104203
ref: 11-1
MODEL V
SCREW
€ 2.00
11-2
0351104163
ref: 11-2
MODEL W
SCREW
0351104163
€ 1.50
12
0354104203
ref: 12
SCREW
0354104203
€ 2.50
13
3495533E00
ref: 13
CUSHION,METER
3495533E00
€ 3.00
14
0916005037
ref: 14
WASHER(5.5X16X1.2)
0916005037
€ 1.50
15
0216205083
ref: 15
SCREW
0216205083
€ 2.00
16
3498142E00
ref: 16
ROTOR,SPEED
3498142E00
€ 16.00
17-1
3499033E00
ref: 17-1
MODEL V
SENSOR,SPEED
€ 112.50
17-2
3499033E10
ref: 17-2
MODEL W
SENSOR,SPEED
3499033E10
€ 112.50
18
0712005123
ref: 18
BOLT
0712005123
€ 2.00
19
0713008203
ref: 19
BOLT
0713008203
€ 3.00
