CAM CHAIN

GSXR600 2000 (Y)

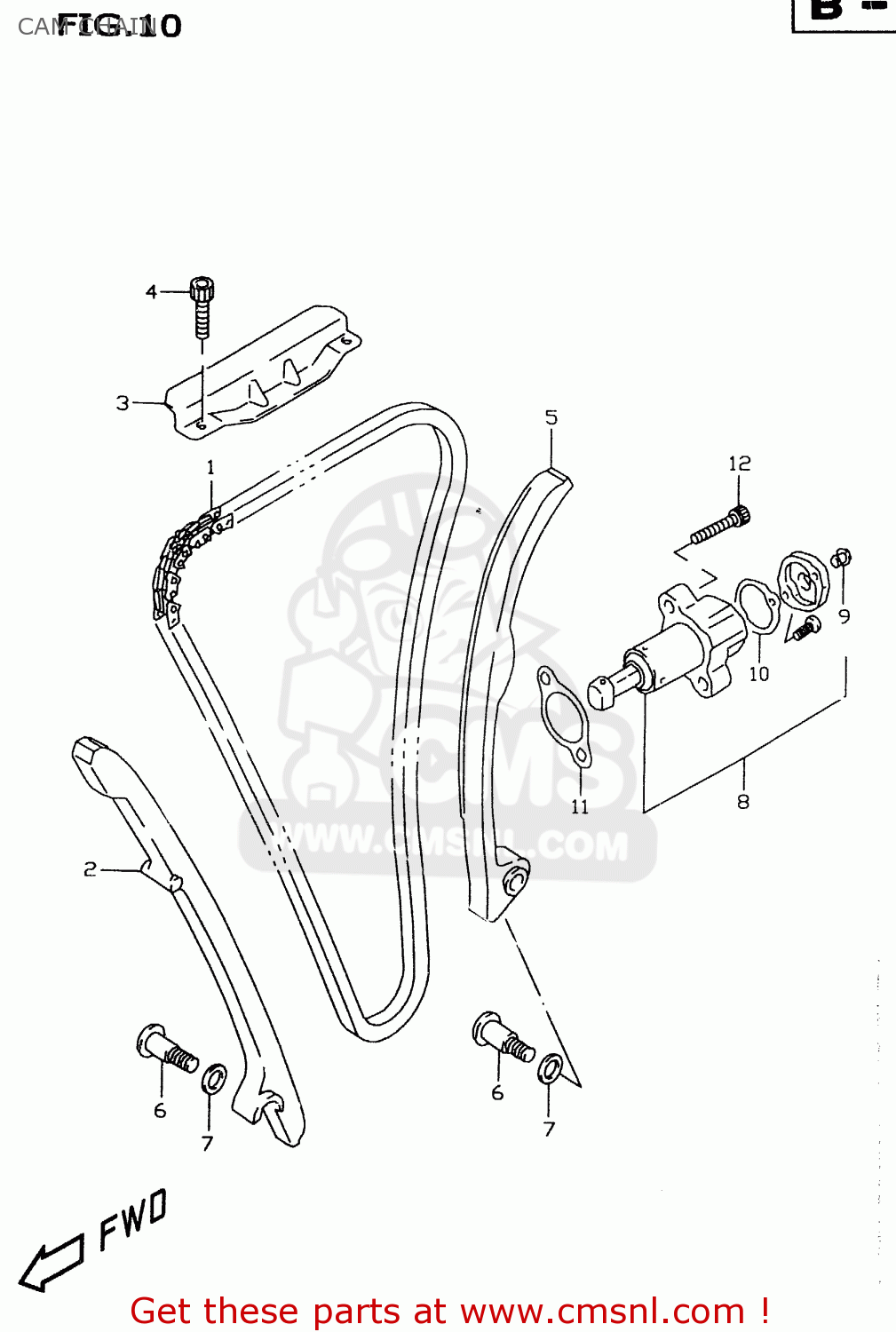

Cam chain diagram GSXR600 2000 (Y)

CAM CHAIN GSXR600 2000 (Y)

CAM CHAIN GSXR600 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

1276038A11
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 155.00

2

1277133E00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 37.50

3

1278233E00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 26.00

4

0713006123
ref: 4

BOLT,STRANGER

€ 2.50

5

1281133E10
ref: 5

TENSIONER,CAM CHAIN

€ 38.00

6-1

1281226B01
ref: 6-1
MODEL V

BOLT,CAM CHAIN TENSIONER

€ 6.00

6-2

1281226B02
ref: 6-2
MODEL W

BOLT,CAM CHAIN TENSIONER/GUIDE

€ 6.00

7

0832201083
ref: 7

WASHER

€ 1.50

8-1

1283001D11
ref: 8-1
MODEL V

ADJUSTER ASSEMBLY,TENSIONER

€ 77.50

8-2

1283034E00
ref: 8-2
MODEL W

ADJUSTER ASSEMBLY,TENSIONER

€ 68.00

9

1283938200
ref: 9

PLUG,ADJUSTER

€ 2.00

10

1283838200H17
ref: 10

GASKET,ADJUSTER CAP (NAS)

€ 3.00

11

1283724A10
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

12

0713006253
ref: 12

BOLT,CL.COVER

€ 3.00
