FRONT MASTER CYLINDER

GSXR600 2000 (Y)

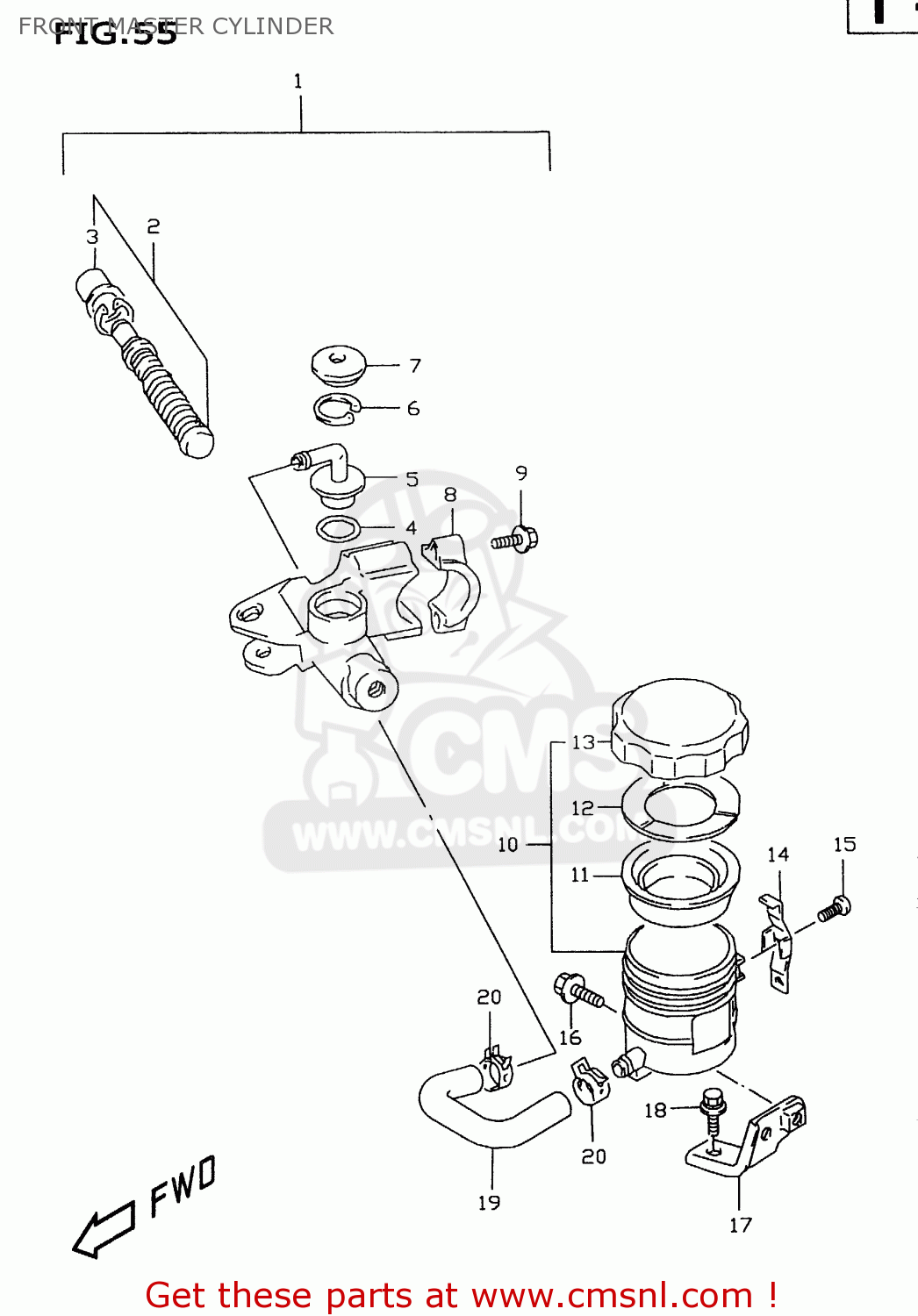

Front master cylinder diagram GSXR600 2000 (Y)

FRONT MASTER CYLINDER GSXR600 2000 (Y)

FRONT MASTER CYLINDER GSXR600 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

5960017C00
ref: 1

CYLINDER ASSY,FR MASTER

€ 210.00

2

5960045850
ref: 2

PISTON & CUP SET

€ 38.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

6968634200
ref: 4

O RING

€ 3.50

5

5967217C00
ref: 5

CONNECTOR

€ 8.00

6

6967400B20
ref: 6

CIRCLIP

€ 3.00

7

5967317C00
ref: 7

COVER,DUST

€ 7.00

8

5967136500
ref: 8

HOLDER

€ 10.00

9

5967519C00
ref: 9

BOLT(6X25)

€ 3.00

10

5974007D00
ref: 10

TANK ASSY,RESERVOIR

€ 67.00

11

5966718441
ref: 11

DIAPHRAGM

€ 8.50

12

5966818441
ref: 12

PLATE,DIAPHRAGM

€ 3.50

13

5966907D00
ref: 13

CAP

€ 16.50

14

5974317C00
ref: 14

PLATE,RESERVOIR TANK CAP

€ 8.00

15

0214204103
ref: 15

SCREW

€ 1.50

16

0155006123
ref: 16

BOLT

€ 2.50

17

5975033E01
ref: 17

BRACKET,RESERVOIR TANK

€ 8.50

18

0155006123
ref: 18

BOLT

€ 2.50

19

5973117E00
ref: 19

HOSE,RESERVOIR TANK FR

€ 22.00

20

5973517C00
ref: 20

CLAMP,RESERVOIR TANK FR

€ 4.00
