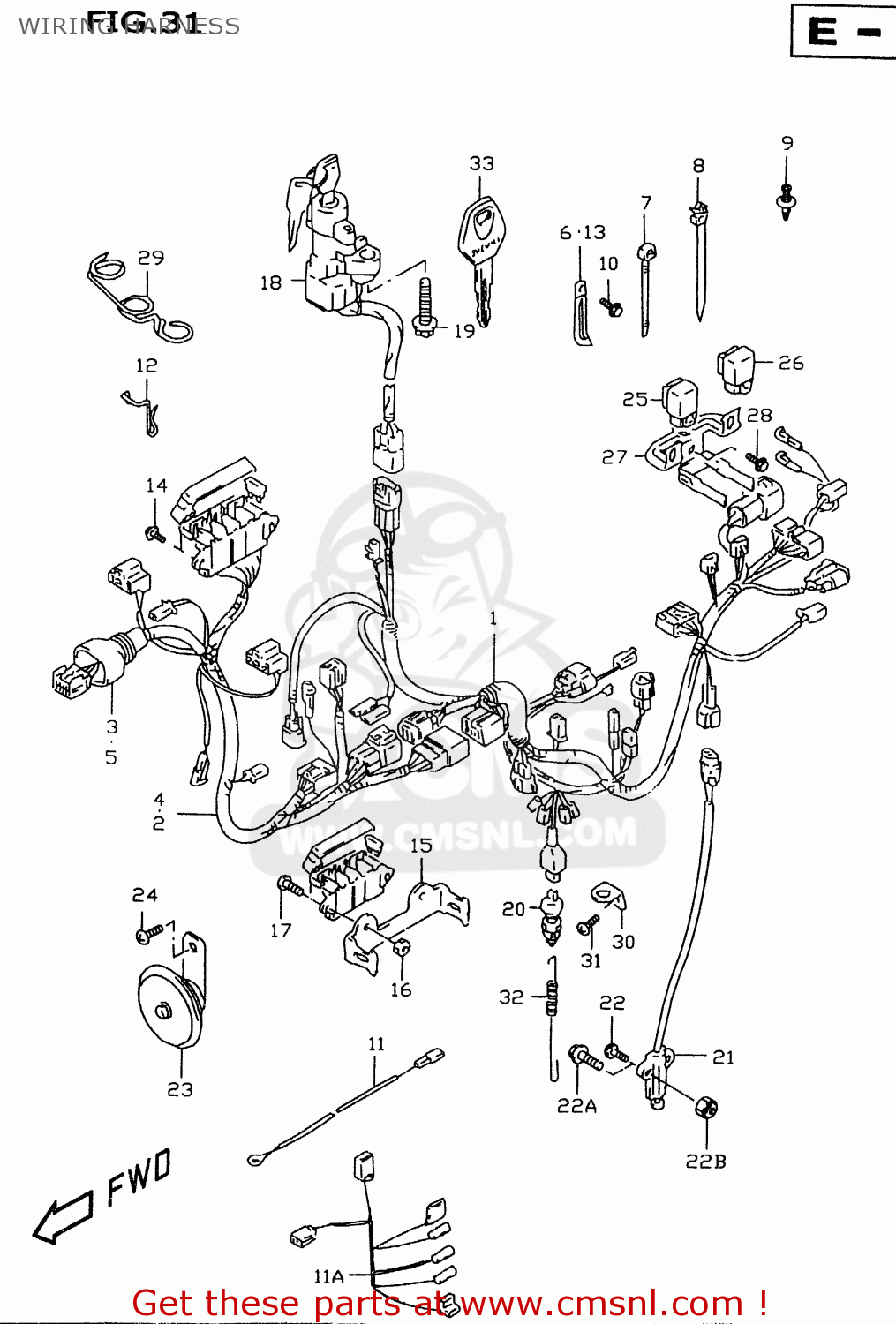

WIRING HARNESS

ref

part #

description

quantity

1-1

3661034E00
ref: 1-1
MODEL V

HARNESS,WIRING NO.1

€ 449.00

1-2

3661034E10
ref: 1-2
MODEL W

HARNESS,WIRING NO.1

€ 495.50

2-1

3662033E10
ref: 2-1
MODEL V

HARNESS,WIRING NO.2

€ 274.00

2-2

3662034E10
ref: 2-2
MODEL W

HARNESS,WIRING NO.2

€ 238.00

2-3

3662034E20
ref: 2-3
MODEL W E4, E18, E22

HARNESS, WIRING NO. 2

€ 267.50

3

3661833E00
ref: 3

COVER,SPEEDOMETER COUPLER

€ 5.50

4-1

3662033E20
ref: 4-1
MODEL V E4, E18, E22

HARNESS, WIRING NO. 2

€ 270.00

4-2

3662034E20
ref: 4-2
MODEL W E4, E18, E22

HARNESS, WIRING NO. 2

€ 267.50

5

3661833E00
ref: 5

COVER,SPEEDOMETER COUPLER

€ 5.50

6-1

0940406429
ref: 6-1

CLAMP(L:45)

€ 2.50

6-2

0940406432
ref: 6-2
<-09404-06431

CLAMP(L:65)

€ 2.50

7-1

0940714403
ref: 7-1

CLAMP(L:125)

€ 2.50

7-2

0940725401
ref: 7-2

CLAMP(L:235)

€ 4.00

8

0940717401
ref: 8

CLAMP

€ 5.00

9

09409073055PK
ref: 9

CLIP(BLACK)

€ 1.50

10

0155006103
ref: 10

BOLT

€ 2.50

11

3685117E10
ref: 11

WIRE,OIL PRESSURE SWITCH LEAD

€ 13.50

11A

3685633E10
ref: 11A

WIRE,CARB HEATER

€ 25.50

12

3674533E00
ref: 12
MODEL V

STOPPER,FUSE BOX

€ 7.00

13

0940406433
ref: 13
MODEL V

CLAMP(L:80)

€ 3.00

14

0214206203
ref: 14
MODEL V

SCREW

€ 2.00

15

3674433E00
ref: 15
MODEL W

BRACKET,FUSE BOX

€ 9.50

16

9461927A00
ref: 16
MODEL W

NUT,COWLING SCREEN

€ 6.50

17

0214205123
ref: 17
MODEL W

SCREW 5X12

€ 1.50

18-1

3710033E01
ref: 18-1
MODEL V

LOCK ASSY,STEERING

€ 170.00

18-2

3710033E20
ref: 18-2
MODEL W

LOCK ASSY,STEERING

€ 223.50

18-3

3710033E11
ref: 18-3
MODEL V E24

LOCK ASSY,STEERING

€ 160.00

18-4

3710033E30
ref: 18-4
MODEL W E24

LOCK ASSY, STEERING

€ 142.50

19

0913908016
ref: 19

BOLT(8X20)

€ 3.50

20

3774024A00
ref: 20

SWITCH ASSY,STOP LAMP

€ 20.50

21

3784026X50
ref: 21

SWITCH ASSY,SIDE STAND WARNING

€ 100.50

22

0910306130
ref: 22
MODEL V

BOLT 6X20

€ 2.50

22A

0155006203
ref: 22A
MODEL W

BOLT

€ 2.50

22B

0831921063
ref: 22B
MODEL W

NUT

€ 2.50

23

3850020E10
ref: 23

HORN ASSY

€ 75.50

24

0912508003
ref: 24

SCREW(8X14)

€ 1.50

25

3874024X50
ref: 25

RELAY ASSY

€ 37.50

26

3874024X50
ref: 26

RELAY ASSY

€ 37.50

27

3893033E00
ref: 27

BRACKET,SIDE STAND RELAY

€ 8.00

28

0155006123
ref: 28

BOLT

€ 2.50

29

3661933E00
ref: 29

GUIDE,WIRING HARNESS

€ 10.50

30

4325121E00
ref: 30

BRACKET,STOP LAMP SWITCH

€ 3.50

31

0214206083
ref: 31

SCREW

€ 1.50

32

0944306005
ref: 32

SPRING

€ 6.00

33

3714633E00
ref: 33
OPT

KEY,BLANK

€ 13.00
