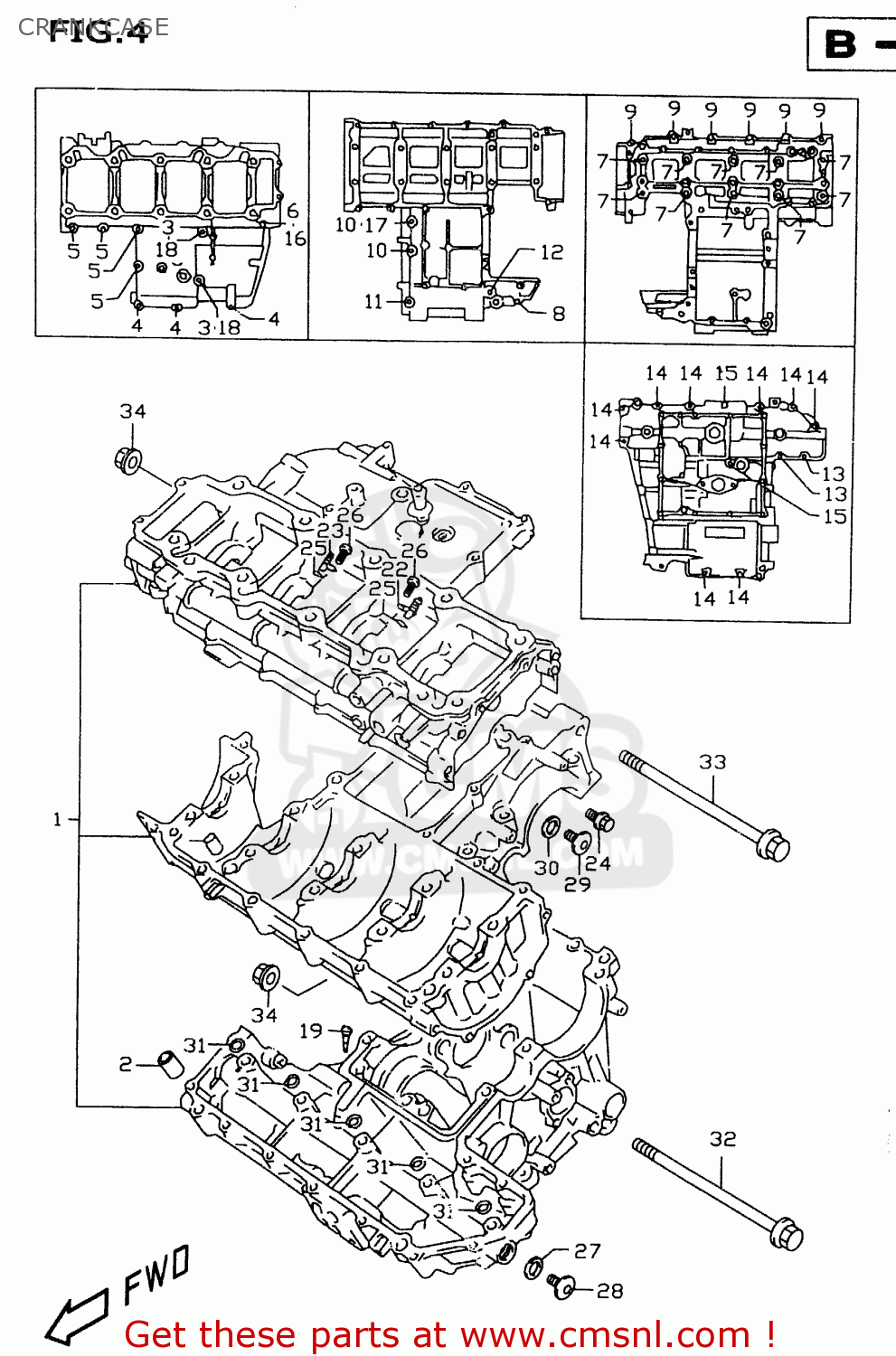

CRANKCASE

ref

part #

description

quantity

1-1

1130134840
ref: 1-1
MODEL V ~F.NO. JS1AD

CRANKCASE SET

€ 1,990.50

1-2

1130134841
ref: 1-2
MODEL V F.NO. JS1AD1

CRANKCASE SET

€ 1,990.50

1-3

1130134850
ref: 1-3
MODEL V E18, E39 ~F.

CRANKCASE SET

€ 1,990.50

1-4

1130134851
ref: 1-4
MODEL V E18, E39 F.N

CRANKCASE SET

€ 1,990.50

1-5

1130133850
ref: 1-5
MODEL W

CRANKCASE SET

€ 1,990.50

1-6

1130133860
ref: 1-6
MODEL W E18, E39

CRANKCASE SET

€ 1,990.50

2-1

1131933E00
ref: 2-1
MODEL V

PIN,CRANKCASE

€ 4.00

2-2

1131933E50
ref: 2-2
MODEL W

PIN,CRANKCASE

€ 4.00

3

0910608139
ref: 3

BOLT(8X120)

€ 10.00

4

0154706353
ref: 4

BOLT

€ 3.00

5

0154706403
ref: 5

BOLT

€ 3.00

6

0154706803
ref: 6

BOLT

€ 3.50

7

0910309012
ref: 7

BOLT(9X95)

€ 7.00

8

0154706453
ref: 8

BOLT

€ 3.00

9

0154706503
ref: 9

BOLT

€ 3.50

10

0712008603
ref: 10

BOLT

€ 4.50

11-1

0713008553
ref: 11-1
MODEL V

BOLT

€ 3.50

11-2

0712008603
ref: 11-2
MODEL W

BOLT

€ 4.50

12

0713008803
ref: 12

BOLT

€ 3.00

13

0154706303
ref: 13

BOLT,G/S SWITC

€ 3.00

14

0154706403
ref: 14

BOLT

€ 3.00

15

0154706903
ref: 15

BOLT

€ 3.00

16

0916806024
ref: 16

GASKET(5.8X11X1.2) (NAS)

€ 2.00

17

0916808016
ref: 17

GASKET(8.2X14X1) (NAS)

€ 1.00

18

0916808016
ref: 18

GASKET(8.2X14X1) (NAS)

€ 1.00

19

0949328012
ref: 19

JET(140)

€ 8.00

20

1222817E000D0
ref: 20
SEE ILLUSTRATION ON

BEARING,CRANK THRUST(GREEN)

€ 8.00

21-1

1222817E000A0
ref: 21-1
SEE ILLUSTRATION ON

BEARING,CRANK THRUST(RED)

€ 7.50

21-2

1222817E000B0
ref: 21-2

BEARING,CRANK THRUST(BLACK)

€ 7.50

21-3

1222817E000C0
ref: 21-3

BEARING,CRANK THRUST(BLUE)

€ 7.50

21-4

1222817E000D0
ref: 21-4

BEARING,CRANK THRUST(GREEN)

€ 8.00

21-5

1222817E000E0
ref: 21-5

BEARING,CRANK THRUST(YELLOW)

€ 7.50

21-6

1222817E000F0
ref: 21-6

BEARING,CRANK THRUST(WHITE)

€ 7.50

22

1139034E00
ref: 22

JET,PISTON COOLINGR

€ 13.50

23

1139034E10
ref: 23

JET,PISTON COOLING

€ 13.50

24

1139333E01
ref: 24

JET,MAGNETO COOLING

€ 14.00

25

0928004004
ref: 25

O RING(D:1.2,ID:4)

€ 2.00

26

0910606075
ref: 26

BOLT(6X12)

€ 2.50

27

0916816002
ref: 27

GASKET(16X22X2) (NAS)

€ 2.00

28

0924816010
ref: 28

PLUG

€ 4.50

29

0924814005
ref: 29

PLUG,14X12

€ 5.00

30

0916814002
ref: 30

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

31

0928008012
ref: 31

O RING(D:1.9,ID:7.8)

€ 4.00

32

0910310145
ref: 32

BOLT(10X205)

€ 13.00

33

0910310219
ref: 33

BOLT(10X185)

€ 16.50

34

0915910058
ref: 34

NUT

€ 4.00
