WATER PUMP

GSXR600 2000 (Y)

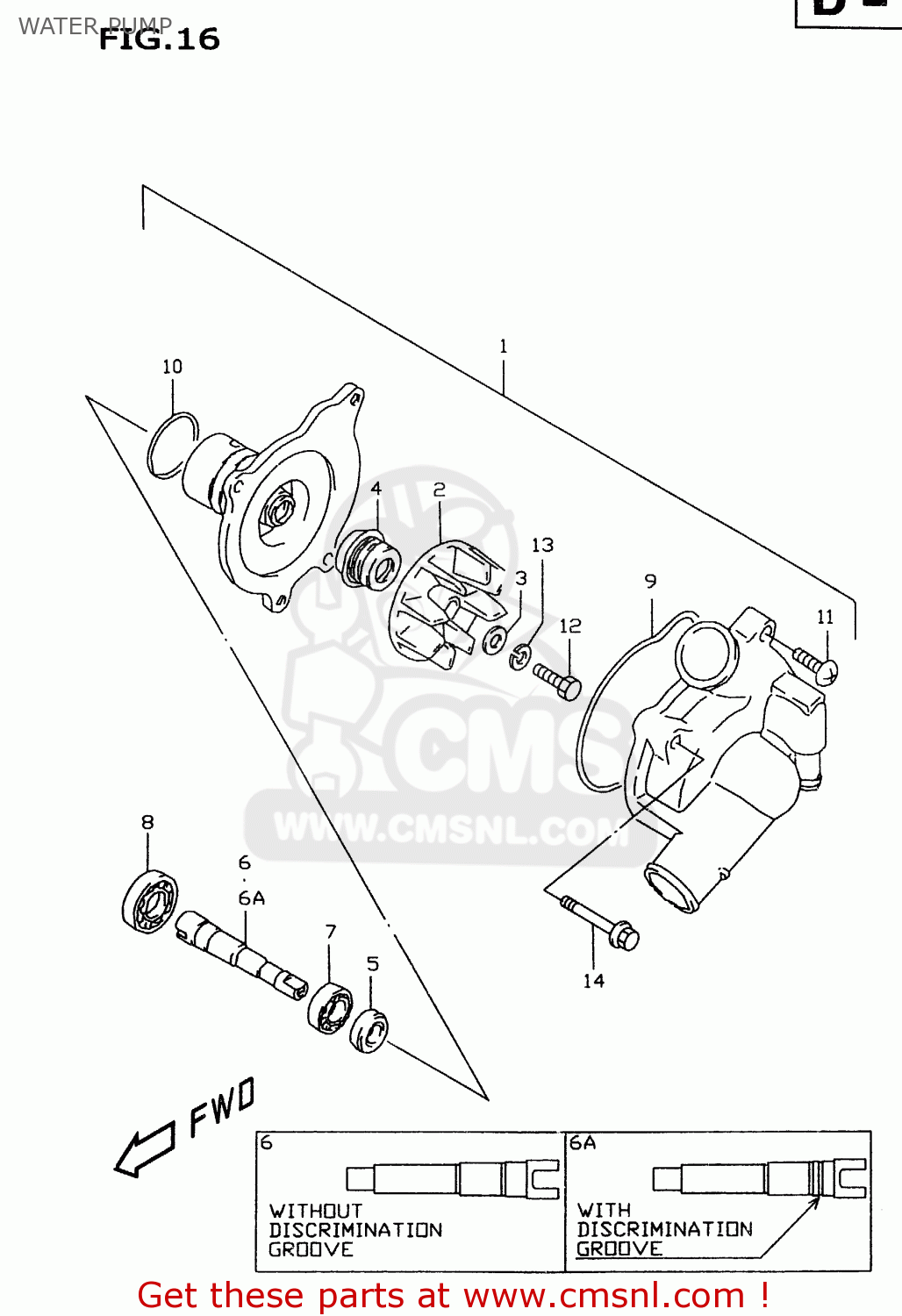

Water pump diagram GSXR600 2000 (Y)

WATER PUMP GSXR600 2000 (Y)

WATER PUMP GSXR600 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

1740033E00
ref: 1

PUMP ASSY,WATER

€ 383.50

2

1749117E01
ref: 2

IMPELLER

€ 15.00

3

0916806025
ref: 3

GASKET(6X15X2.2) (NAS)

€ 3.00

4-1

1747046A00
ref: 4-1
MODEL V

SEAL,MECHANICAL

€ 21.50

4-2

1747046A01
ref: 4-2
MODEL W

SEAL,MECHANICAL

€ 21.50

5

0928310004
ref: 5

SEAL,OIL(10X21X5)

€ 4.50

6

1751133E00
ref: 6
WITHOUT DISCRIMINATI

SHAFT,WATER PUMP

€ 112.50

6A

1751133E01
ref: 6A
WITH DISCRIMINATION

SHAFT,WATER PUMP

€ 112.50

7

0926210014
ref: 7

BEARING(10X26X8)

€ 13.00

8

0926212001
ref: 8

BEARING(12X28X8)

€ 15.00

9

1741833400
ref: 9

O RING

€ 4.00

10

1743533400
ref: 10

O RING,WATER PUMP HOLDER

€ 13.00

11

0211206163
ref: 11

SCREW 6X16

€ 2.00

12

0910006099
ref: 12

BOLT(6X13)

€ 2.00

13

0916406006
ref: 13

WASHER

€ 2.50

14

0154706353
ref: 14

BOLT

€ 3.00
