ELECTRICAL

GSXR600 2000 (Y)

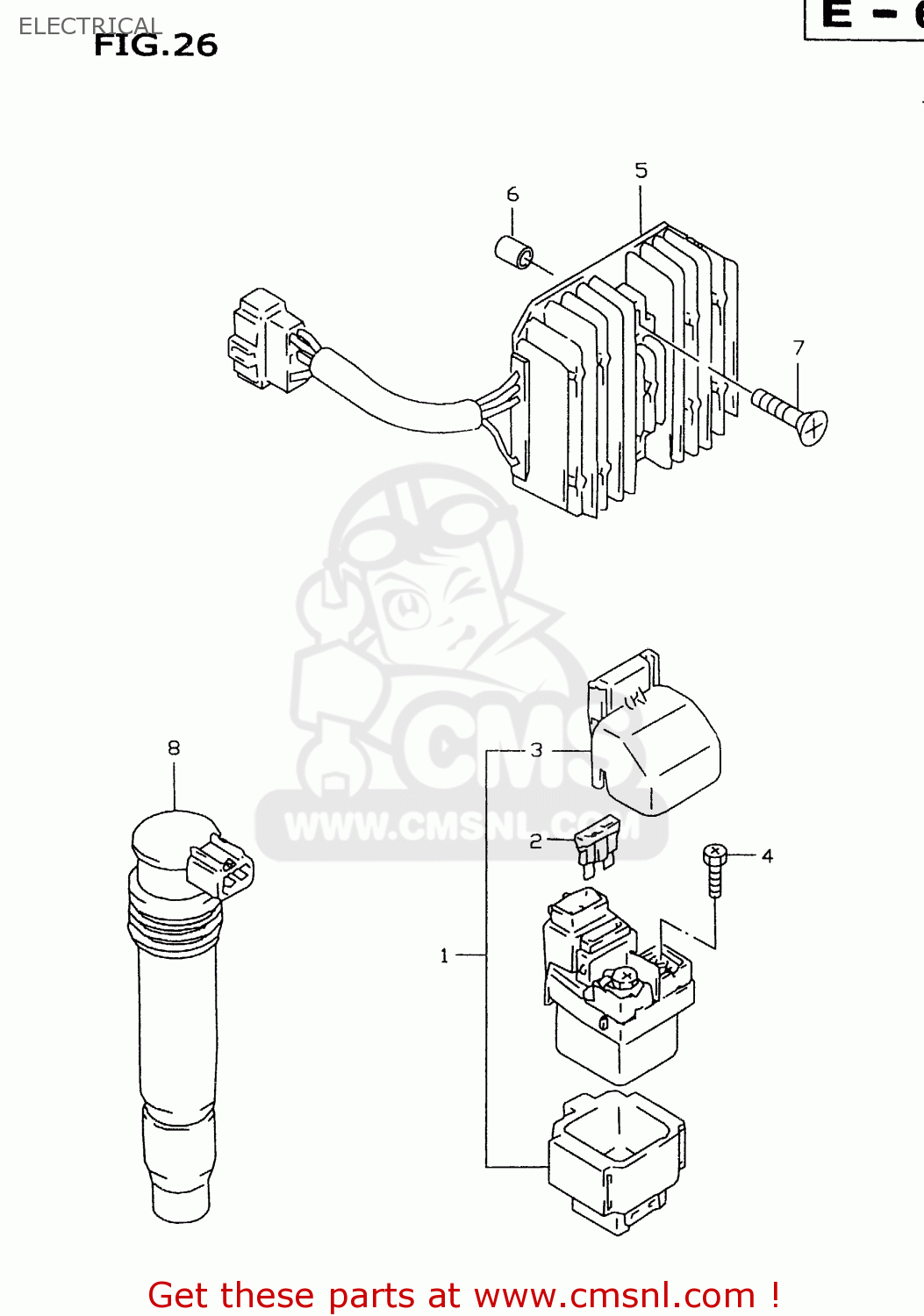

Electrical diagram GSXR600 2000 (Y)

ELECTRICAL GSXR600 2000 (Y)

ELECTRICAL GSXR600 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

3180026E00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

2

0948130101
ref: 2

FUSE(30A)

€ 6.00

3

3186126E00
ref: 3

COVER,STARTER RELAY

€ 3.50

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280033E00
ref: 5

RECTIFIER ASSEMBLY

€ 368.00

6

0918006283
ref: 6

SPACER(6.5X10X7)

€ 2.00

7

0214206353
ref: 7

SCREW

€ 2.00

8

3341034E00
ref: 8

COIL ASSY,IGNITION

€ 146.00
