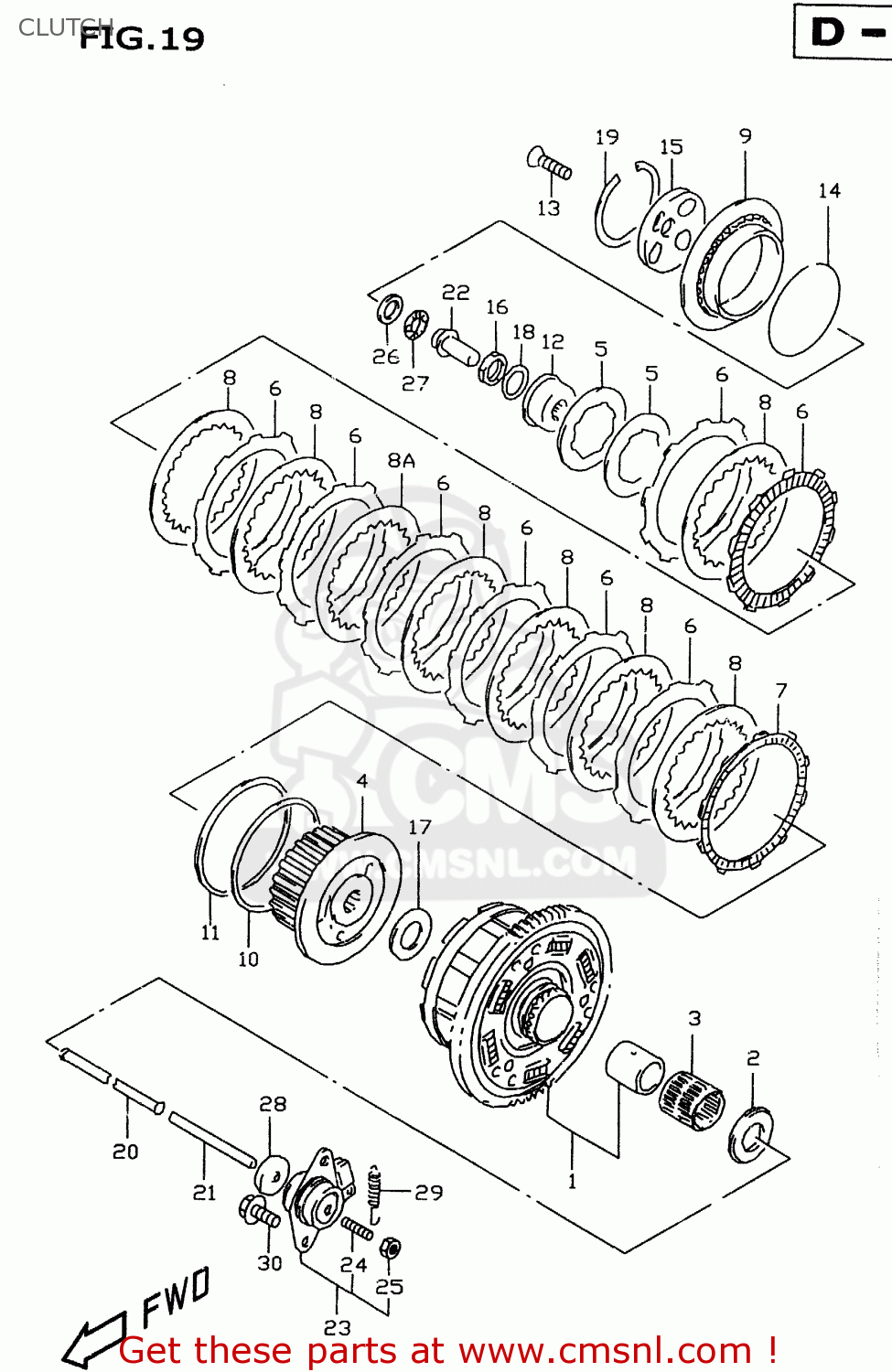

CLUTCH

ref

part #

description

quantity

1-1

2120031880
ref: 1-1
MODEL V

GEAR ASSEMBLY,PRIMARY DRIVE

€ 377.00

1-2

2120131810
ref: 1-2
MODEL W

GEAR ASSY,PRI DRIVEN

€ 337.50

2

0916025037
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335017
ref: 3

BEARING(35X40X35.8)

€ 36.50

4

2141031E40
ref: 4

HUB,CLUTCH SLEEVE

€ 87.50

5

2141331E40
ref: 5

SPRING,CLUTCH

€ 15.50

6-1

2144131E40
ref: 6-1
MODEL V, <-21441-31E

PLATE,CLUTCH DRIVE NO (NAS)

€ 21.00

6-2

2144131E50
ref: 6-2
MODEL W

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 21.00

7-1

2144231E00
ref: 7-1
MODEL V

PLATE,CLUTCH DRIVE

€ 25.50

7-2

2144231E20
ref: 7-2
MODEL W

PLATE,CLUTCH DRIVE NO (NAS)

€ 19.00

8

2145131E00
ref: 8
T:1.6

PLATE,CLUTCH DRIVEN NO.1

€ 7.00

8A

2145131E10
ref: 8A
T:2.0

PLATE,CLUTCH DRIVEN NO.2

€ 7.50

9-1

2146231E40
ref: 9-1
MODEL V

DISC,CLUTCH PRESSURE

€ 54.00

9-2

2146231E60
ref: 9-2
MODEL W

DISC,CLUTCH PRESSURE

€ 54.00

10

2147131E20
ref: 10

SEAT,CLUTCH PLATE WAVE WASHER

€ 12.00

11-1

2147231E20
ref: 11-1
MODEL V

WASHER,CLUTCH PLATE WAVE

€ 15.00

11-2

2147231E01
ref: 11-2
MODEL W

WASHER,CLUTCH PLATE WAVE

€ 15.00

12

2161131E20
ref: 12

HOLDER,CLUTCH SPRING

€ 39.00

13

2161431E20
ref: 13

SCREW,CLUTCH SPRING HOLDER

€ 3.50

14

2162331E20
ref: 14

SEAT,CLUTCH SPRING

€ 5.50

15

2146340C01
ref: 15

LIFTER,CLUTCH PRESSURE DISC

€ 33.00

16

0915924010
ref: 16

NUT

€ 11.00

17

0821125505
ref: 17

WASHER

€ 6.00

18

0916424006
ref: 18
24.2X35X2

WASHER

€ 4.00

19

0938184002
ref: 19

CIRCLIP

€ 10.50

20

2311027A00
ref: 20

ROD,CLUTCH

€ 17.00

21

2311134C00
ref: 21

ROD,CLUTCH PUSH,L

€ 15.50

22

2312131E10
ref: 22

PIECE,CLUTCH PUSH

€ 18.50

23

2320020C00
ref: 23

SCREW ASSY,CLUTCH RELEASE

€ 74.50

24

0913406010
ref: 24

SCREW(6X25)

€ 3.00

25

0831000067
ref: 25

NUT

€ 2.50

26

0916015045
ref: 26
15.5X28X1

WASHER(15.5X28X1)

€ 4.00

27

0926315003
ref: 27
15X28X2

BEARING(15X28X2)

€ 7.00

28

0928506015
ref: 28
6X34X5.5

SEAL,OIL(6X34X5.5)

€ 8.50

29

0944309044
ref: 29

SPRING

€ 3.50

30

0155006163
ref: 30

BOLT

€ 2.50

all assemblies
