Buy Suzuki GSXR Parts Online


HEADLAMP (E4, E18, E22, E25, E34, E39)

GSXR600 2000 (Y)

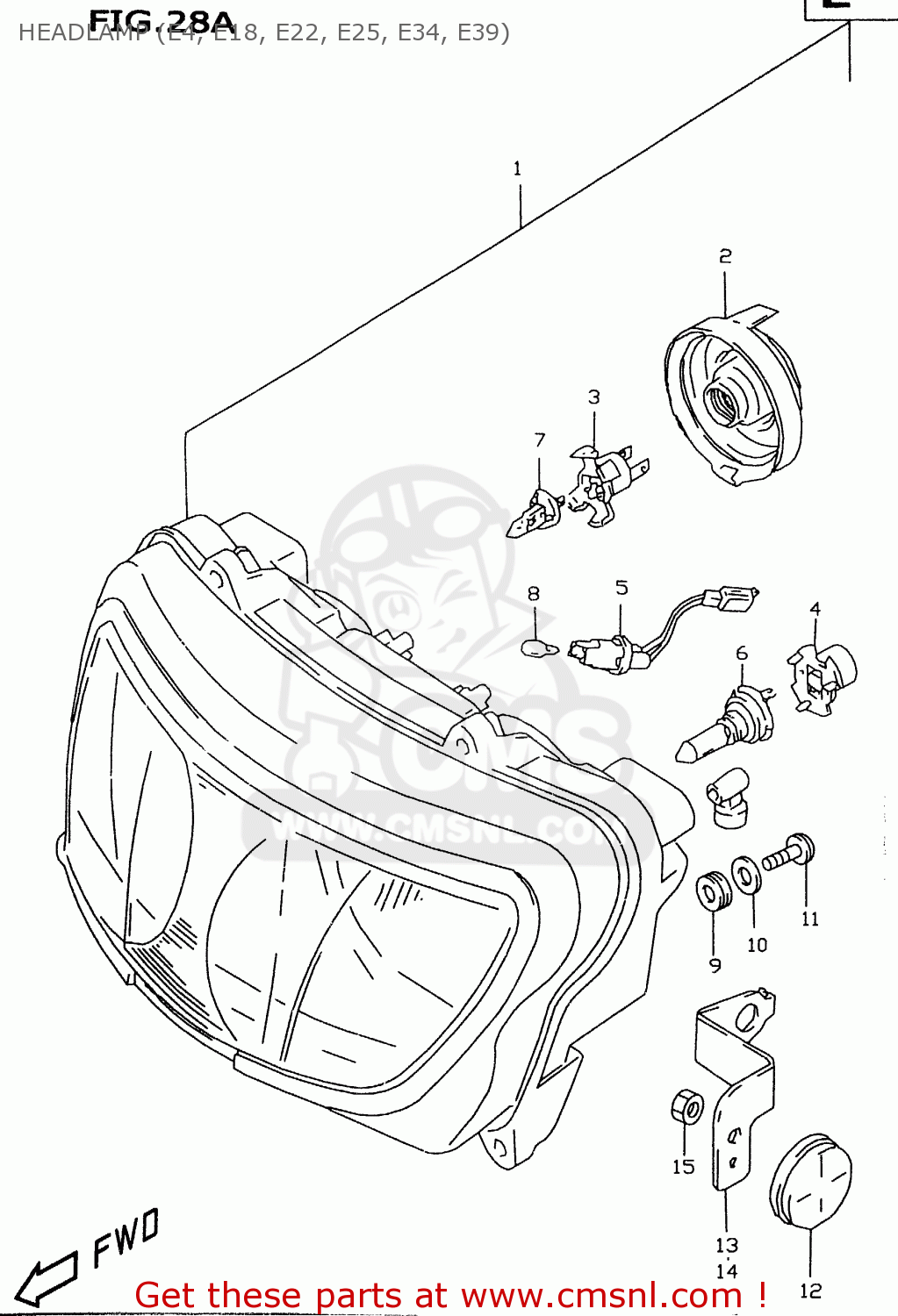

Headlamp (e4, e18, e22, e25, e34, e39) diagram GSXR600 2000 (Y)

HEADLAMP (E4, E18, E22, E25, E34, E39) GSXR600 2000 (Y)
HEADLAMP (E4, E18, E22, E25, E34, E39) GSXR600 2000 (Y)
HEADLAMP (E4, E18, E22, E25, E34, E39) GSXR600 2000 (Y)
prices are in EUR
ref
part #
description
quantity
1-1
3510033E52999
ref: 1-1
MODEL V
HEADLAMP ASSY
3510033E52999
€ 403.00
1-2
3510033E40999
ref: 1-2
MODEL W
HEADLAMP ASSY
3510033E40999
€ 393.50
2
3512574F00
ref: 2
COVER,SOCKET
3512574F00
€ 11.50
3
3617518E50
ref: 3
FOR 09471-12122
ADAPTER ASSY
3617518E50
€ 21.00
4
3617533E50
ref: 4
FOR 09471-12188
ADAPTER ASSY
€ 20.50
5-1
3611818E51
ref: 5-1
MODEL V
SOCKET ASSY
3611818E51
€ 15.00
5-2
3611833E10
ref: 5-2
MODEL W
SOCKET ASSY
3611833E10
€ 18.00
6
0947112188
ref: 6
PURCHASE LOCALLY
BULB(12V55W/H7/PX26D/PHILIPS)
0947112188
€ 12.50
7
0947112122
ref: 7
PURCHASE LOCALLY
BULB(12V55W/H1/P14.5S/OSRA,PHI
€ 4.00
8
0947112081
ref: 8
BULB(12V5W)
0947112081
€ 1.50
9
3513733E00
ref: 9
CUSHION,HEADLAMP
3513733E00
€ 3.00
10
0916005045
ref: 10
5.5X18X1
WASHER(5.5X18X1)
0916005045
€ 2.00
11
0351105163
ref: 11
SCREW,SIDE HOL
€ 2.50
12
3595014A00
ref: 12
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
13
3595617D00
ref: 13
E39
BRACKET,FR SIDE RR,R
3595617D00
€ 6.50
14
3595717D00
ref: 14
E39
BRACKET,FR SIDE RR,L
3595717D00
€ 6.50
15
0831000053
ref: 15
E39
NUT
€ 2.50
