SIGNAL GENERATOR

GSXR600 2000 (Y)

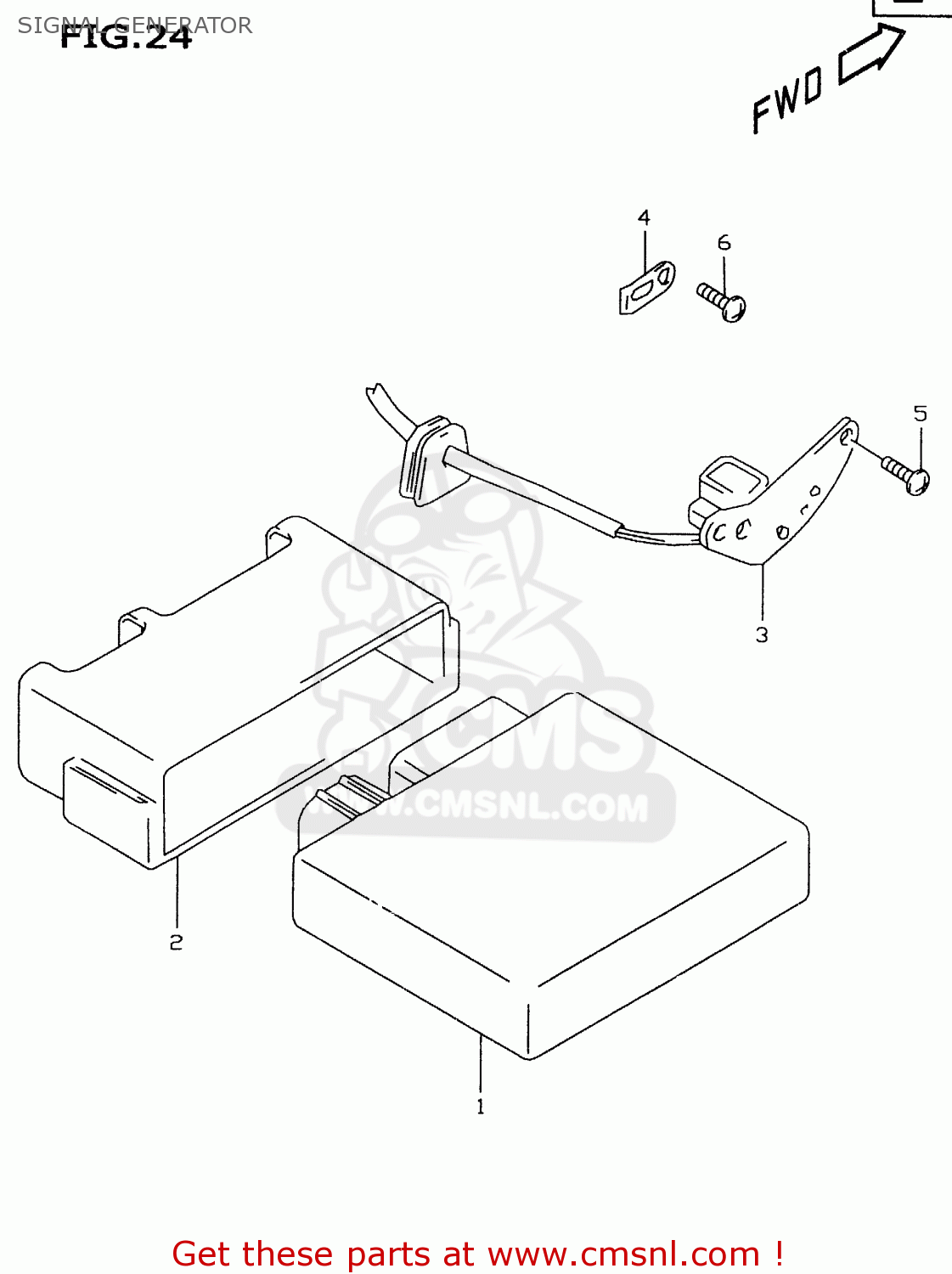

Signal generator diagram GSXR600 2000 (Y)

SIGNAL GENERATOR GSXR600 2000 (Y)

SIGNAL GENERATOR GSXR600 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1-1

3290034E00
ref: 1-1
MODEL V

CDI UNIT

€ 601.00

1-2

3290034E20
ref: 1-2
MODEL V

CDI UNIT

€ 597.50

2

3298019D10
ref: 2

CUSHION,IGNITER

€ 12.50

3

3311033E00
ref: 3

STARTER,SIGNAL GENERATOR

€ 222.50

4

3311533E00
ref: 4

CLAMP,SIGNAL GENERATORERATOR

€ 3.00

5

0211205103
ref: 5

SCREW

€ 2.00

6

0211205103
ref: 6

SCREW

€ 2.00
