CYLINDER HEAD
GSXR600 2000 (Y)

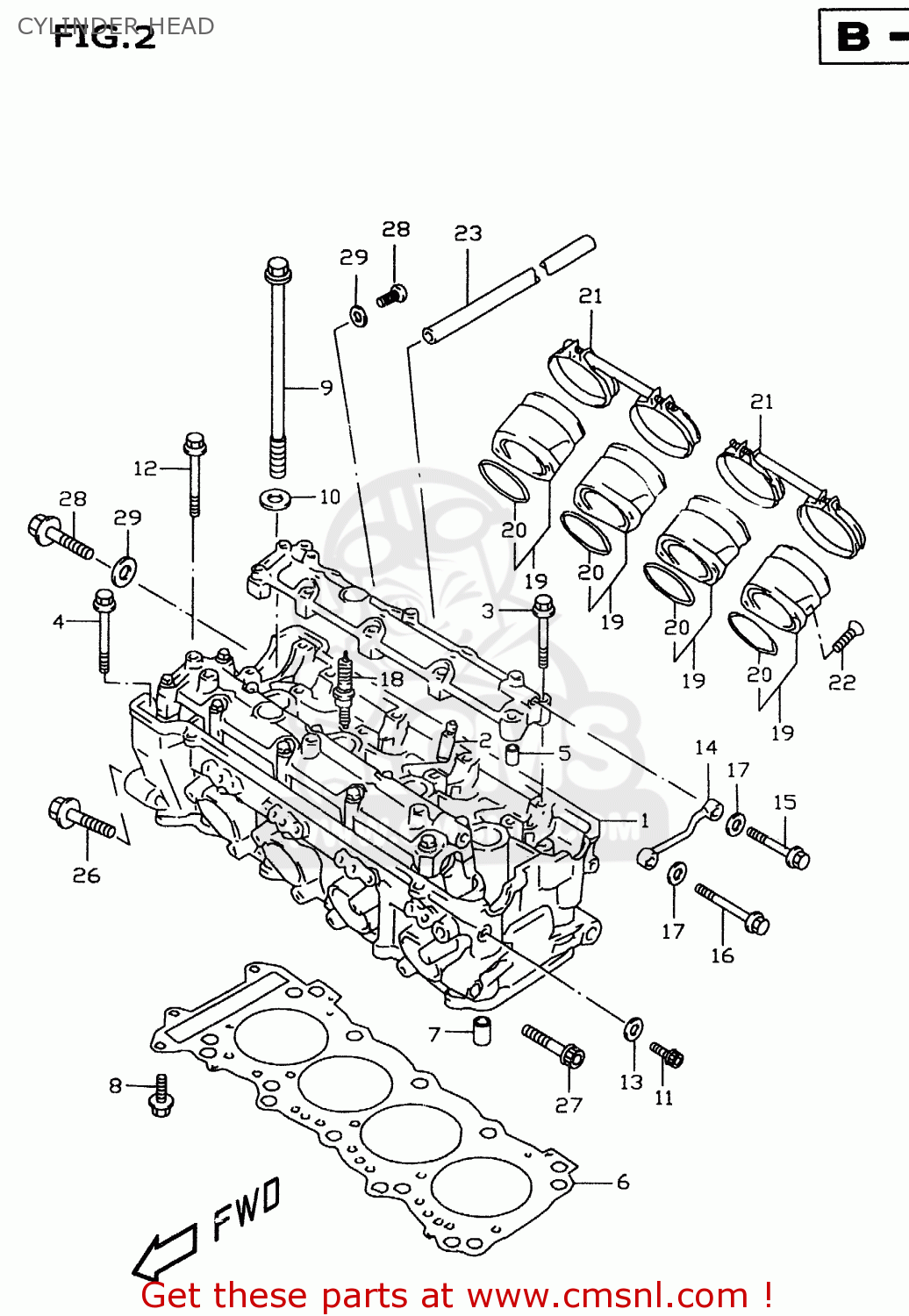

Cylinder head diagram GSXR600 2000 (Y)
CYLINDER HEAD GSXR600 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110034820
ref: 1-1
MODEL V
HEAD SET,CYLINDER
€ 1,856.50
1-2
1110034830
ref: 1-2
MODEL V E18, E39
HEAD SET,CYLINDER
€ 1,569.00
1-3
1110034840
ref: 1-3
MODEL W
HEAD SET,CYLINDER
€ 1,856.50
1-4
1110034850
ref: 1-4
MODEL W E18, E39
HEAD SET,CYLINDER
€ 1,569.00
2
1111518D72
ref: 2
GUIDE,VALVE
€ 18.50
3
0910306026
ref: 3
BOLT(6X39)
€ 2.00
4
0910306165
ref: 4
BOLT(6X45)
€ 2.50
5
0920608007
ref: 5
PIN(6.2X8X16)
€ 2.50
6
1114134E00
ref: 6
GASKET,CYLINDER HEAD
€ 76.00
7
0421111169
ref: 7
PIN
€ 2.00
8
0155006303
ref: 8
BOLT
€ 2.50
9
0910310272
ref: 9
BOLT(10X160)
€ 14.00
10
0916010082
ref: 10
WASHER(10.5X19X2)
€ 2.00
11
0712006123
ref: 11
BOLT
€ 3.50
12
0712006503
ref: 12
BOLT,CYL.OIL P
€ 2.50
13
0916806023
ref: 13
GASKET(5.8X13X1.2) (NAS)
€ 2.00
14
1113133E00
ref: 14
PIPE,CYLINDER HEAD OIL
€ 33.00
15
0155006353
ref: 15
BOLT
€ 2.50
16
0155006453
ref: 16
BOLT (6X45)
€ 2.50
17
0832201063
ref: 17
WASHER
€ 2.00
18-1
0948200458
ref: 18-1
PLUG,SPARK(NGK CR9E)
€ 8.50
18-2
0948200459
ref: 18-2
PLUG,SPARK(U27ESR-N)
€ 8.50
18-3
0948200456
ref: 18-3
OPT
PLUG,SPARK(CR8E)
€ 7.00
18-4
0948200460
ref: 18-4
OPT
PLUG,SPARK(CR10E)
€ 8.50
18-5
0948200457
ref: 18-5
OPT
PLUG,SPARK(U24ESR-N)
€ 7.00
18-6
0948200461
ref: 18-6
OPT
PLUG,SPARK(U31ESR-N)
€ 8.50
19
1310134E00
ref: 19
PIPE ASSY,INTAKE
€ 49.50
20
0928044007
ref: 20
O RING(D:2.4,ID:44)
€ 15.00
21
1317034E00
ref: 21
CLAMP COMP,INTAKE PIPE
€ 27.00
22-1
0912006010
ref: 22-1
MODEL V
SCREW
€ 3.00
22-2
0911906092
ref: 22-2
MODEL W
BOLT(6X16)
€ 2.00
23
0935550105600
ref: 23
L:600->340
HOSE(5X10X600)
€ 7.50
24
0712010453
ref: 24
BOLT
€ 3.50
25
0712010553
ref: 25
BOLT
€ 3.50
26
1116133E00
ref: 26
BOLT,CYL HEAD SIDE FACE
€ 8.00
27
1119113E00
ref: 27
WASHER,HEAD COVER
€ 4.00
28
0211206103
ref: 28
SCREW
€ 1.50
29
0916806004
ref: 29
GASKET(6.2X11X1).2 (NAS)
€ 1.50
