STAND

GSXR600 2000 (Y)

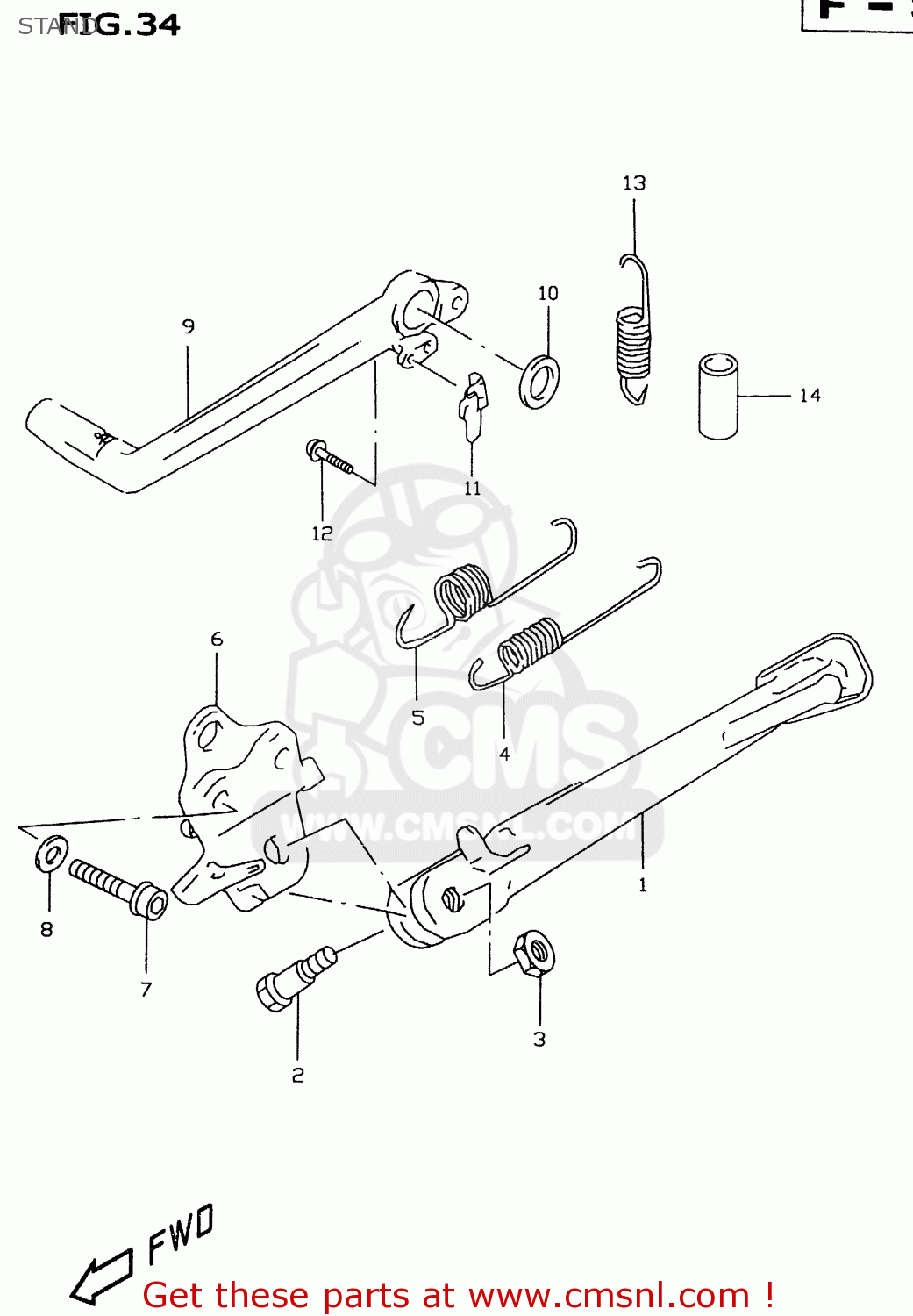

Stand diagram GSXR600 2000 (Y)

STAND GSXR600 2000 (Y)

STAND GSXR600 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1-1

4231033E00
ref: 1-1
MODEL V

STAND COMP,PROP

€ 85.50

1-2

4231033E20
ref: 1-2
MODEL W

STAND,PROP

€ 142.00

2

0911110027
ref: 2

BOLT(10X34)

€ 3.50

3-1

0831921103
ref: 3-1
MODEL V

NUT

€ 2.00

3-2

0915910097
ref: 3-2
MODEL W

NUT

€ 5.00

4

0944314066
ref: 4

SPRING

€ 5.00

5

0944319012
ref: 5

SPRING

€ 5.50

6-1

4233033E01
ref: 6-1
MODEL V

BRACKET,PROP STAND

€ 93.00

6-2

4233033E20
ref: 6-2
MODEL W

BRACKET,PROP STAND

€ 93.00

7

0712008303
ref: 7

BOLT

€ 3.50

8

0832101083
ref: 8

LOCK WASHER

€ 2.50

9

4311133E00
ref: 9

PEDAL,BRAKE

€ 100.50

10

0916018022
ref: 10

WASHER(18X24X1)

€ 3.00

11

4356133E00
ref: 11

HOOK,RETURN SPRING

€ 6.50

12

0211205163
ref: 12

SCREW

€ 2.00

13

0944313029
ref: 13

SPRING

€ 5.00

14

4326117C00
ref: 14

TUBE,BRAKE SPRING GUIDE

€ 5.50
