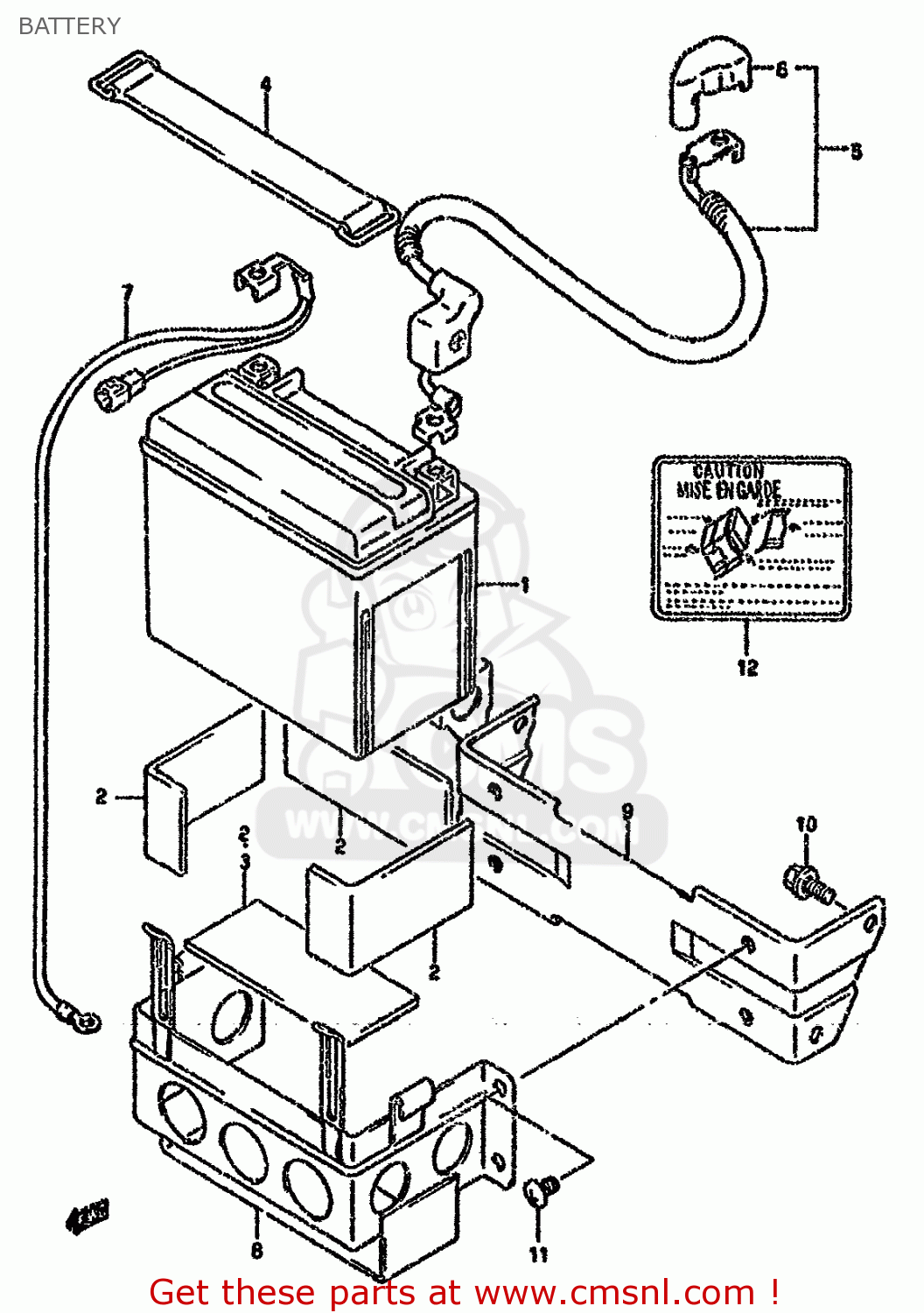

BATTERY

ref

part #

description

quantity

1-1

3361017E10
ref: 1-1
MODEL N/P

BATTERY ASSY(YTX12-BS,12V10AH)

€ 97.50

1-2

3361032C10
ref: 1-2
MODEL R/S

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

1-3

3361007D10
ref: 1-3
MODEL N/P E24

BATTERY (YTX12-BS,12V,10AH)

€ 97.50

1-4

3361007D90
ref: 1-4
OPT,MODEL S E22

BATTERY (FT4L-B5-R,12V,3AH)

€ 191.00

2

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3

3365247D00
ref: 3

PROTECTOR,BATTERY

€ 7.00

4-1

0946200015
ref: 4-1

BAND

€ 7.00

4-2

0946200040
ref: 4-2
OPT,MODEL S E22

BAND

€ 4.50

5-1

3382017E00
ref: 5-1
MODEL N/P

WIRE,BATTERY PLUS

€ 22.50

5-2

3382017E01
ref: 5-2
MODEL R/S

WIRE,BATTERY PLUS

€ 22.50

6-1

3362401D10
ref: 6-1
MODEL N/P

CAP,STARTER RELAY TERMINAL

€ 8.50

6-2

3362433C10
ref: 6-2
MODEL R/S

CAP,BATTERY PLUS

€ 6.50

7

3386046E00
ref: 7
-33860-17E00

WIRE,BATTERY MINUS

€ 27.50

8-1

4154017E10
ref: 8-1
MODEL N/P,-41540-17E

HOLDER COMP,BATTERY

€ 69.50

8-2

4154017E50
ref: 8-2
MODEL R/S

HOLDER,BATTERY

€ 65.00

9-1

4156017E00
ref: 9-1
MODEL N/P

BRACKET,BATTERY HOLDER

€ 39.00

9-2

4156017E50
ref: 9-2
MODEL R/S

BRACKET COMP,BATTERY HOLDER

€ 32.50

10-1

0111406168
ref: 10-1
MODEL N/P

BOLT

€ 1.50

10-2

0155006163
ref: 10-2
MODEL R/S

BOLT

€ 2.50

11-1

0214206127
ref: 11-1
MODEL N/P

SCREW 6X12

€ 1.50

11-2

0214206123
ref: 11-2
MODEL R/S

SCREW 6X12

€ 2.00

12

3369017E00
ref: 12

PLATE,BATTERY CAUTION

€ 3.00

all assemblies
