CYLINDER HEAD COVER

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

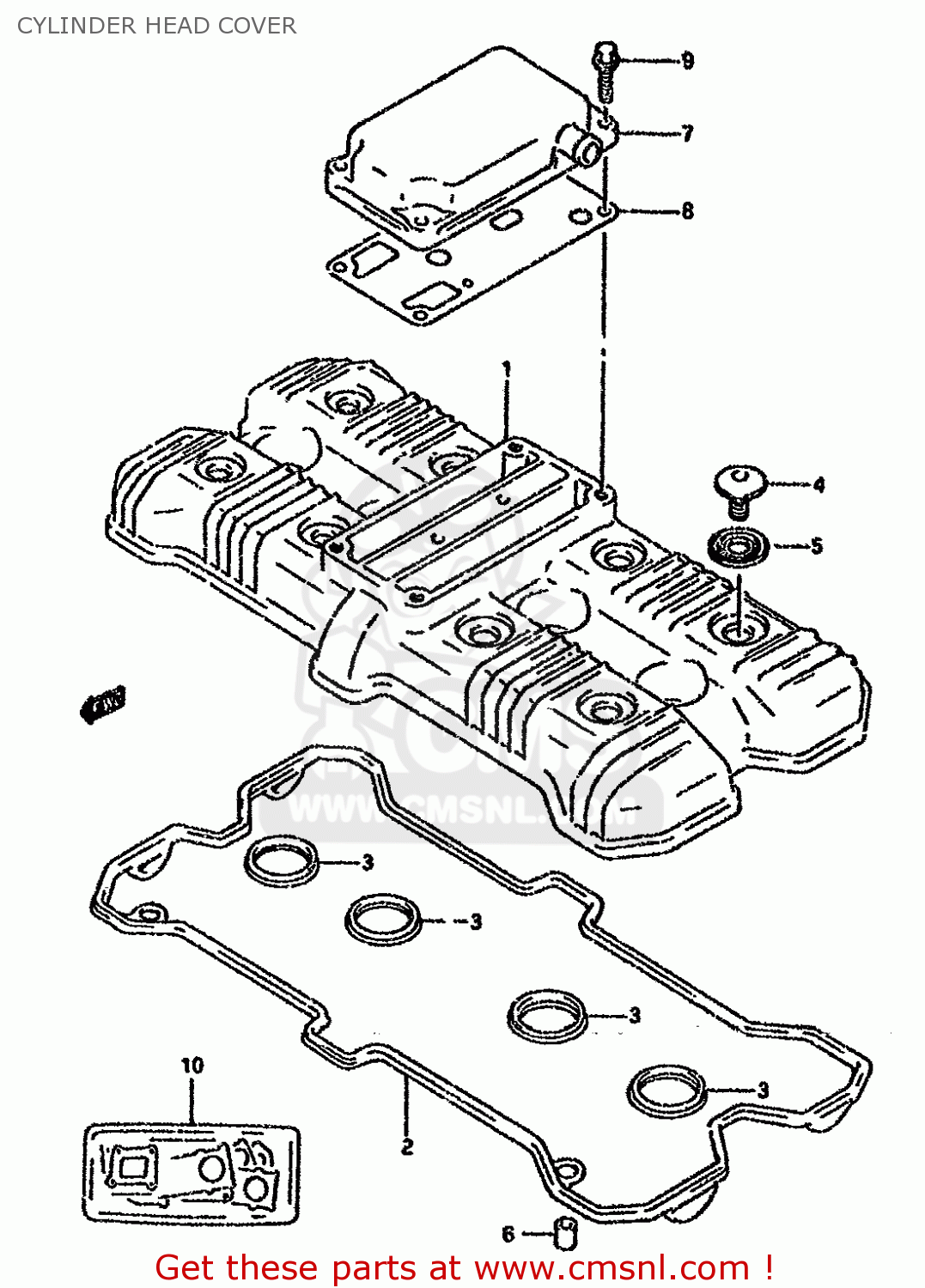

Cylinder head cover diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

CYLINDER HEAD COVER GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

CYLINDER HEAD COVER GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

1117117E00
ref: 1-1
MODEL N/P

COVER,CYLINDER HEAD

€ 499.50

1-2

1117117E10
ref: 1-2
MODEL R

COVER,CYLINDER HEAD

€ 499.50

1-3

1117117E11
ref: 1-3
MODEL S

COVER,CYLINDER (MG)

€ 499.50

2

1117317E00
ref: 2

GASKET,CYL HEAD COVER NO.1

€ 53.50

3

1117817E00
ref: 3

GASKET,CYL HEAD COVER NO.2

€ 6.00

4

0910607009
ref: 4

BOLT(7X17.5)

€ 4.50

5

0916111008
ref: 5

WASHER(10.6X25.5X2.3)

€ 4.50

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7-1

1117626D00
ref: 7-1
MODEL N/P

COVER,BREATHER

€ 35.50

7-2

1117631E00
ref: 7-2
MODEL R/S

COVER,BREATHER

€ 43.50

8

1117717E00
ref: 8

GASKET,BREATHER COVER

€ 12.50

9-1

0151706257
ref: 9-1
MODEL N/P

BOLT 6X25

€ 2.50

9-2

0155006253
ref: 9-2
MODEL R/S

BOLT

€ 2.50

10-1

1140017870
ref: 10-1
MODEL N/P

GASKET SET (NAS)

€ 271.50

10-2

1140017873
ref: 10-2
MODEL R

GASKET SET (NAS)

€ 271.50

10-3

1140017874
ref: 10-3
MODEL S

GASKET SET (NAS)

€ 271.50
