Buy Suzuki GSXR Parts Online


HANDLEBAR (MODEL R/S)

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

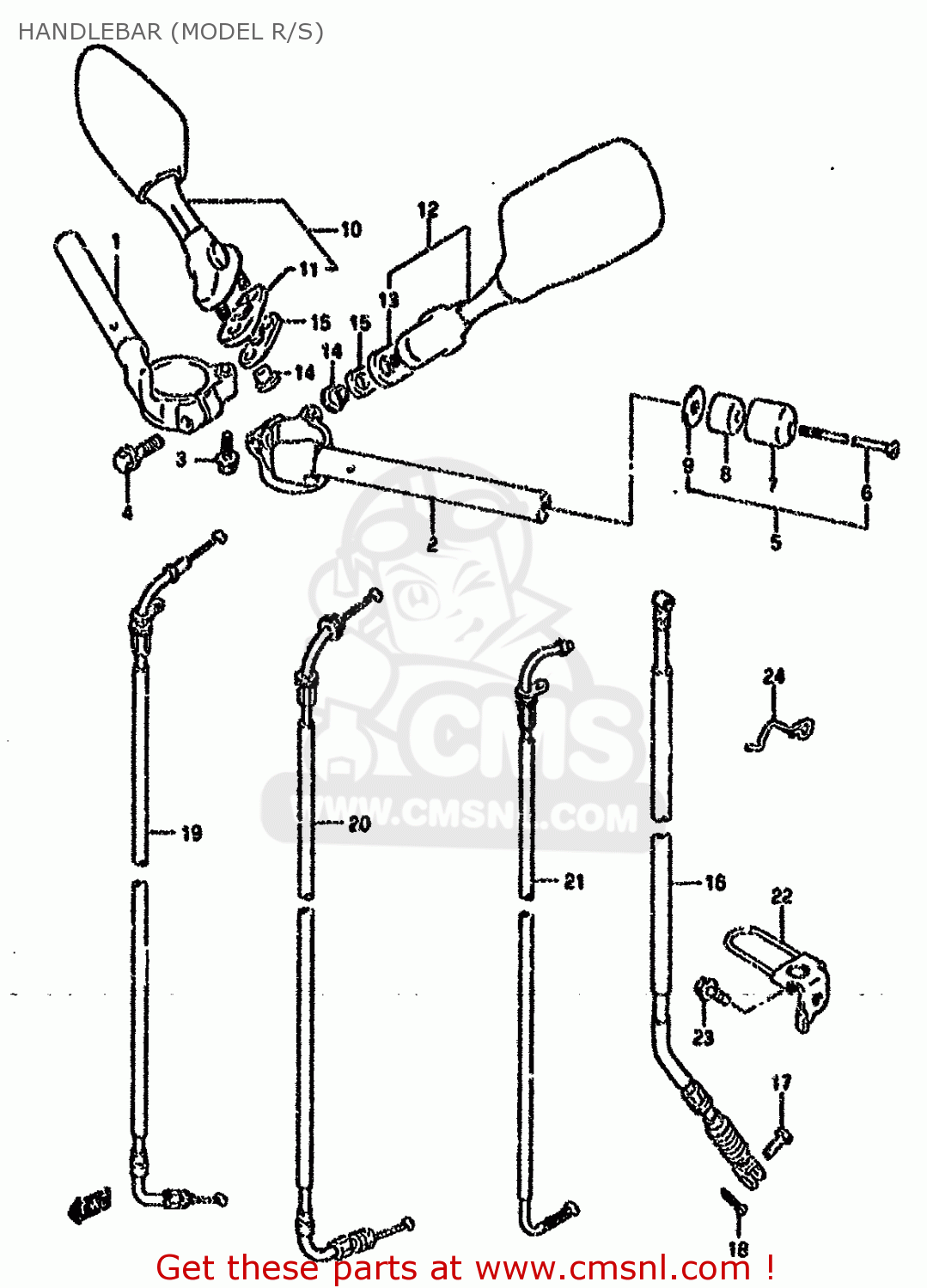

Handlebar (model r/s) diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

HANDLEBAR (MODEL R/S) GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
HANDLEBAR (MODEL R/S) GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
HANDLEBAR (MODEL R/S) GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
5611117E11
ref: 1
HANDLEBAR,RH
€ 143.00
2
5615117E11
ref: 2
HANDLEBAR,L
€ 183.00
3
0155006203
ref: 3
BOLT
0155006203
€ 2.50
4
0910308269
ref: 4
BOLT(8X30)
0910308269
€ 2.50
5
5620019811
ref: 5
BALANCER SET,HANDLEBAR
5620019811
€ 88.00
6
0212206503
ref: 6
SCREW
0212206503
€ 3.00
7
5627431300
ref: 7
-56274-05350 (BLACK)
CAP,BALANCER
5627431300
€ 223.50
8
5627149420
ref: 8
BALANCER,HANDLE
5627149420
€ 19.50
9
5627534401
ref: 9
SPACER,BALANCER
5627534401
€ 2.50
10
5650041C0184N
ref: 10
MIRROR ASSEMBLY,REAR VIEW
€ 114.50
11
5652841C00
ref: 11
GASKET,RR VIEW MIRROR,R (NAS)
5652841C00
€ 9.00
12
5660041C0184N
ref: 12
MIRROR ASSEMBLY,REAR VIEW
€ 105.50
13
5662841C00
ref: 13
GASKET,RR VIEW MIRROR,L (NAS)
5662841C00
€ 10.50
14
5661912C00
ref: 14
NUT,RR VIEW MIRROR
5661912C00
€ 8.00
15
9457641C00
ref: 15
CUSHION,RR VIEW MIRRORR
9457641C00
€ 12.00
16
5820017E11
ref: 16
CABLE ASSY,CLUTCH
5820017E11
€ 44.50
17
0920006011
ref: 17
PIN(L:15)
0920006011
€ 2.50
18
0411120158
ref: 18
PIN
0411120158
€ 1.50
19-1
5830017E00
ref: 19-1
CABLE ASSY,THROTTLE NO.1
5830017E00
€ 47.50
19-2
5830017E20
ref: 19-2
E18,E39
CABLE ASSY,THROTTLE NO.1
5830017E20
€ 51.50
20-1
5830017E10
ref: 20-1
CABLE ASSY,THROTTLE NO.2
5830017E10
€ 47.50
20-2
5830017E30
ref: 20-2
E18,E39
CABLE ASSY,THROTTLE NO.2
5830017E30
€ 43.00
21
5841017E00
ref: 21
CABLE,STARTER
5841017E00
€ 33.50
22
5862017E00
ref: 22
GUIDE,CABLE
€ 9.50
23
0155006163
ref: 23
BOLT
0155006163
€ 2.50
24
5862117E10
ref: 24
GUIDE,CLUTCH CABLE
€ 4.00
24-2
5830017E20
ref: 24-2
E18,E39
CABLE ASSY,THROTTLE NO.1
5830017E20
€ 51.50
25-1
5830017E10
ref: 25-1
CABLE ASSY,THROTTLE NO.2
5830017E10
€ 47.50
25-2
5830017E30
ref: 25-2
E18,E39
CABLE ASSY,THROTTLE NO.2
5830017E30
€ 43.00
26
5841017E00
ref: 26
CABLE,STARTER
5841017E00
€ 33.50
27
0940406402
ref: 27
CLAMP
€ 2.50
28
0940725401
ref: 28
CLAMP(L:235)
0940725401
€ 4.00
29
4716548B10
ref: 29
CUSHION,FRAME COVER
€ 2.50
