STAND

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

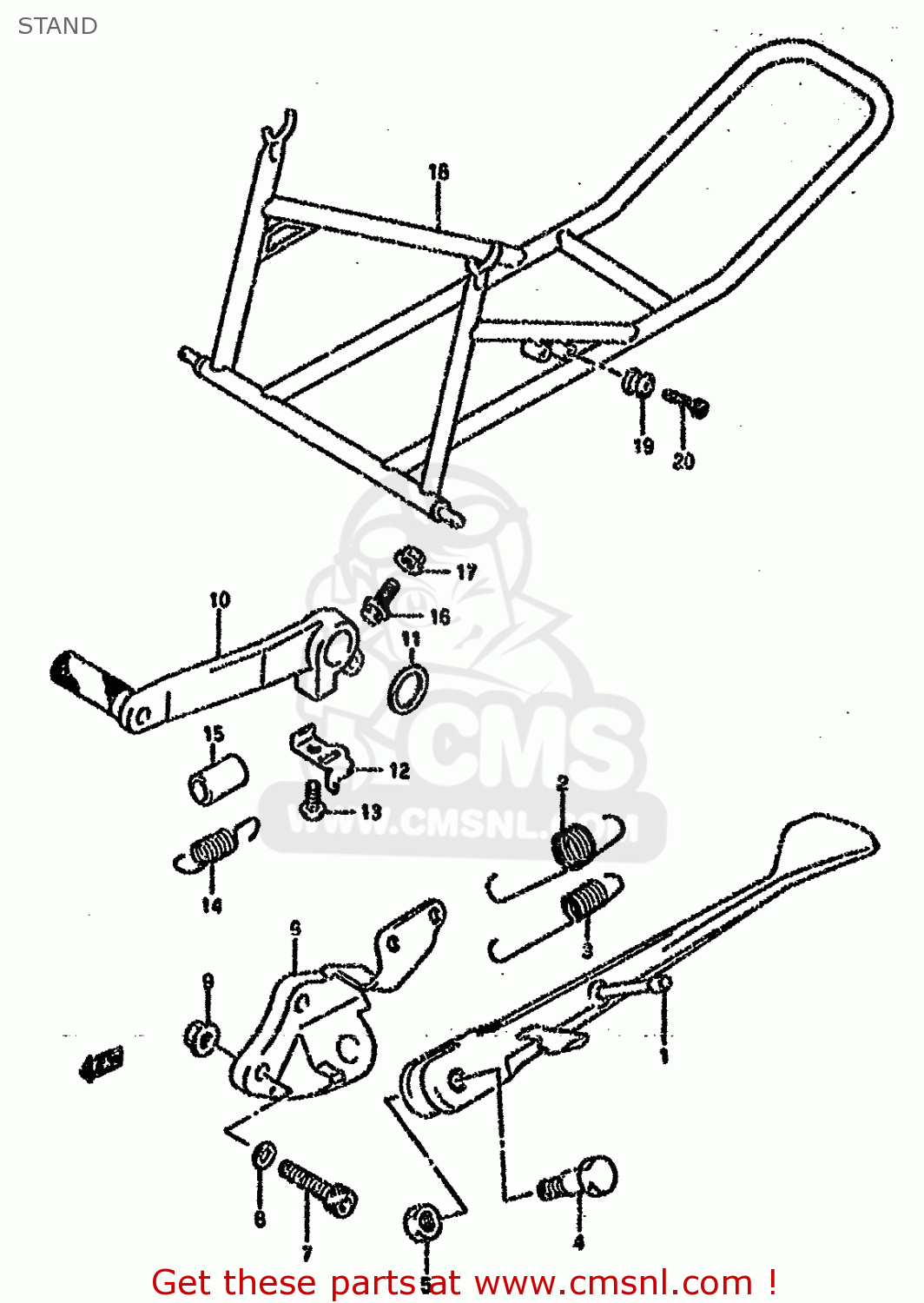

Stand diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

STAND GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
STAND GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
STAND GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
4231017E00
ref: 1
STAND,PROP
4231017E00
€ 145.00
2
0944514050
ref: 2
SPRING,INNER
€ 0.00
3
0944319011
ref: 3
SPRING
0944319011
€ 5.50
4
0911110036
ref: 4
BOLT(10X38)
0911110036
€ 5.50
5-1
0831000107
ref: 5-1
MODEL N/P
NUT
0831000107
€ 2.50
5-2
0915910097
ref: 5-2
MODEL R/S
NUT
0915910097
€ 5.00
6-1
4233017E00
ref: 6-1
MODEL N/P
BRACKET,PROP STAND
4233017E00
€ 68.50
6-2
4233017E10
ref: 6-2
MODEL R/S
BRACKET,PROP STAND
€ 91.50
7-1
0713008357
ref: 7-1
MODEL N/P
BOLT
0713008357
€ 4.50
7-2
0713008353
ref: 7-2
MODEL R/S
BOLT
€ 4.00
8
0916408015
ref: 8
WASHER
0916408015
€ 3.00
9-1
0831610087
ref: 9-1
MODEL N/P
NUT
0831610087
€ 2.50
9-2
0831610083
ref: 9-2
MODEL R/S
NUT
0831610083
€ 3.00
10
4311017E00
ref: 10
PEDAL,BRAKE
4311017E00
€ 88.00
11
0916018022
ref: 11
WASHER(18X24X1)
0916018022
€ 3.00
12
4356317E00
ref: 12
HOOK,RETURN SPRING
4356317E00
€ 9.00
13-1
0913906027
ref: 13-1
MODEL N/P
SCREW(6X12)
0913906027
€ 3.00
13-2
0155006123
ref: 13-2
MODEL R/S
BOLT
0155006123
€ 2.50
14
0944313018
ref: 14
SPRING
0944313018
€ 4.00
15
4326117C00
ref: 15
TUBE,BRAKE SPRING GUIDE
4326117C00
€ 5.50
16-1
0150005203
ref: 16-1
MODEL N
BOLT 5X20
€ 2.50
16-2
0135006127
ref: 16-2
MODEL P
BOLT
€ 0.00
16-3
0155006123
ref: 16-3
MODEL R/S
BOLT
0155006123
€ 2.50
17
0831000057
ref: 17
MODEL N
NUT
0831000057
€ 2.50
18
4210017C00
ref: 18
OPT
STAND ASSEMBLY,REAR
4210017C00
€ 471.00
19
6116527A30
ref: 19
OPT
HOLDER,STAND
6116527A30
€ 26.50
20-1
0711008305
ref: 20-1
OPT,MODEL N/P
BOLT, REAR (8X30)
0711008305
€ 3.00
20-2
0713008303
ref: 20-2
OPT,MODEL R/S
BOLT
0713008303
€ 3.00
