STARTING MOTOR (MODEL R/S)

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

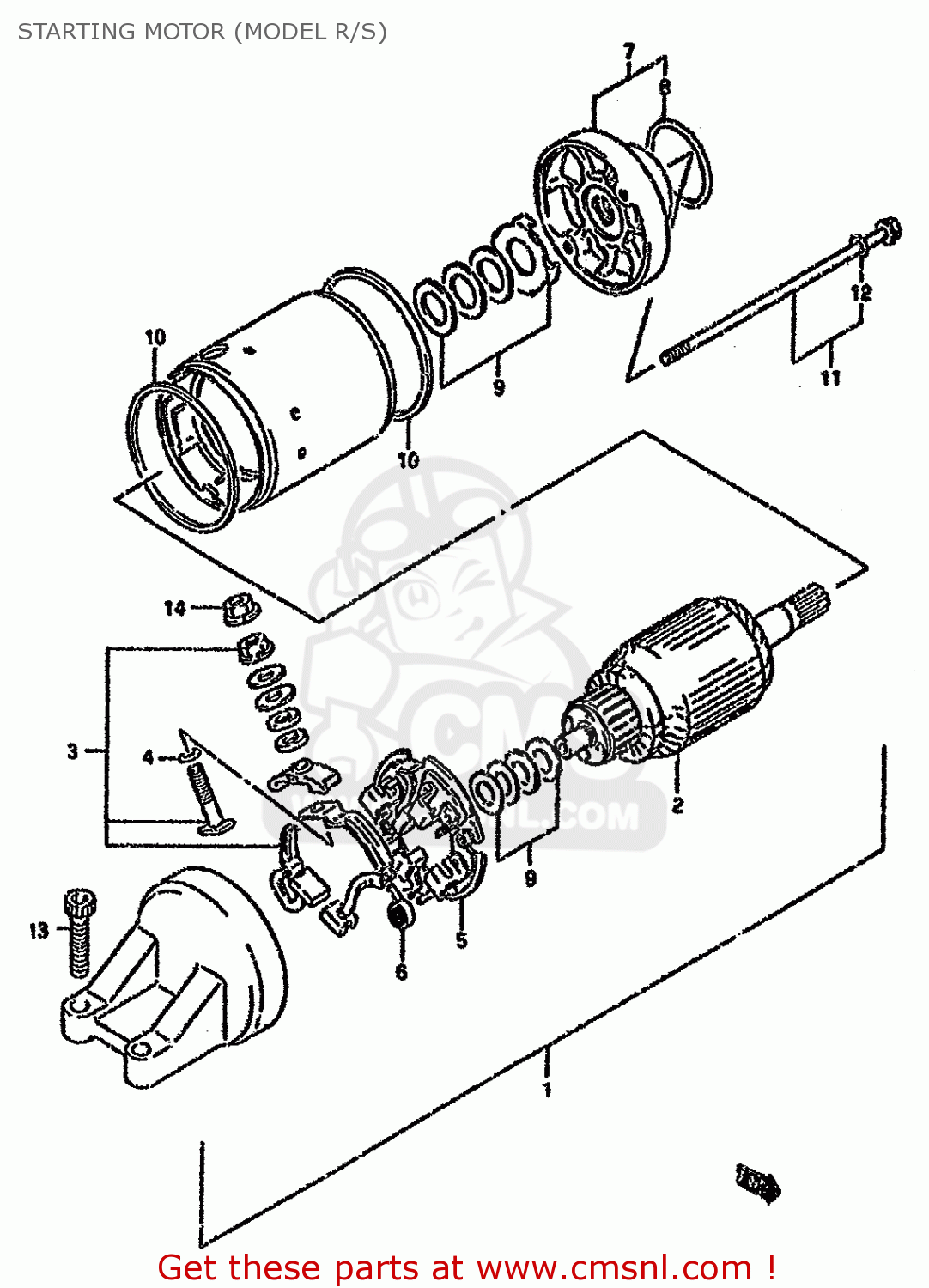

Starting motor (model r/s) diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

STARTING MOTOR (MODEL R/S) GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
STARTING MOTOR (MODEL R/S) GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
STARTING MOTOR (MODEL R/S) GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
3110046E00
ref: 1
MOTOR ASSEMBLY,STARTING
€ 730.00
2
3131119C02
ref: 2
ARMATURE
€ 128.00
3
3113019B10
ref: 3
TERMINAL SET,BRUSH,PLUS
3113019B10
€ 27.50
4
3114349040
ref: 4
O RING
3114349040
€ 3.00
5
3113246E00
ref: 5
BRUSH,HOLDER SET
3113246E00
€ 47.00
6
3113531300
ref: 6
SPRING,BRUSH
3113531300
€ 4.00
7
3115046E00
ref: 7
BRACKET ASSEMBLY,FRONT
€ 85.00
8
3115646E00
ref: 8
O-RING
3115646E00
€ 8.50
9
3117019B10
ref: 9
SHIM SET,STARTING MOTOR
3117019B10
€ 8.00
10
3126431300
ref: 10
O RING
3126431300
€ 7.50
11
3128019B10
ref: 11
BOLT SET,STARTING MOTOR
€ 8.50
12
3114349040
ref: 12
O RING
3114349040
€ 3.00
13-1
0712006253
ref: 13-1
MODEL R
BOLT,OIL PAN
0712006253
€ 2.50
13-2
0912806024
ref: 13-2
MODEL S
SCREW (6X25)
0912806024
€ 2.50
14
0836135066
ref: 14
NUT
€ 2.00
16
0712006257
ref: 16
-07120-06258
BOLT
0712006257
€ 3.00
17
0836135066
ref: 17
NUT
€ 2.00
