STARTER CLUTCH

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

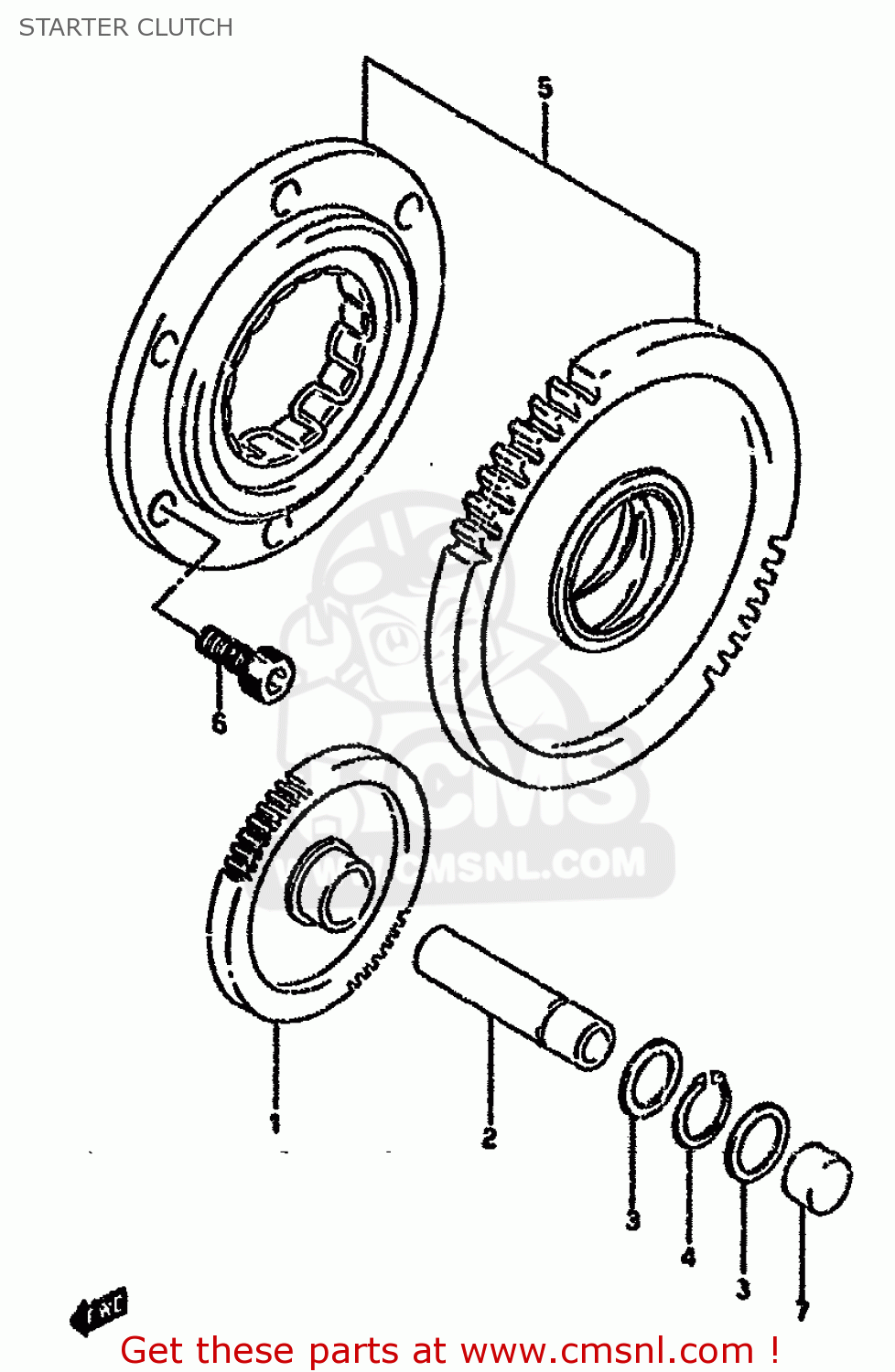

Starter clutch diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

1261117E00
ref: 1-1
MODEL N/P

GEAR,STARTER IDLE

€ 73.50

1-2

1261121E00
ref: 1-2
MODEL R/S

GEAR,STARTER IDLE (NT:1

€ 73.50

1261617E00
ref: 2

SHAFT,STARTER IDLE GEAR

€ 10.50

0822112185
ref: 3

WASHER

€ 2.50

0833131126
ref: 4

CIRCLIP,12 MM

€ 2.00

5-1

1260017820
ref: 5-1
MODEL N/P

CLUTCH SET,STARTER

€ 251.00

5-2

1260021810
ref: 5-2
MODEL R/S

CLUTCH SET,STARTER

€ 251.00

6-1

0711006166
ref: 6-1
MODEL N/P

BOLT

€ 2.50

6-2

0713006123
ref: 6-2
MODEL R/S

BOLT,STRANGER

€ 2.50

0924112006
ref: 7

PLUG

€ 5.50
