MUFFLER

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

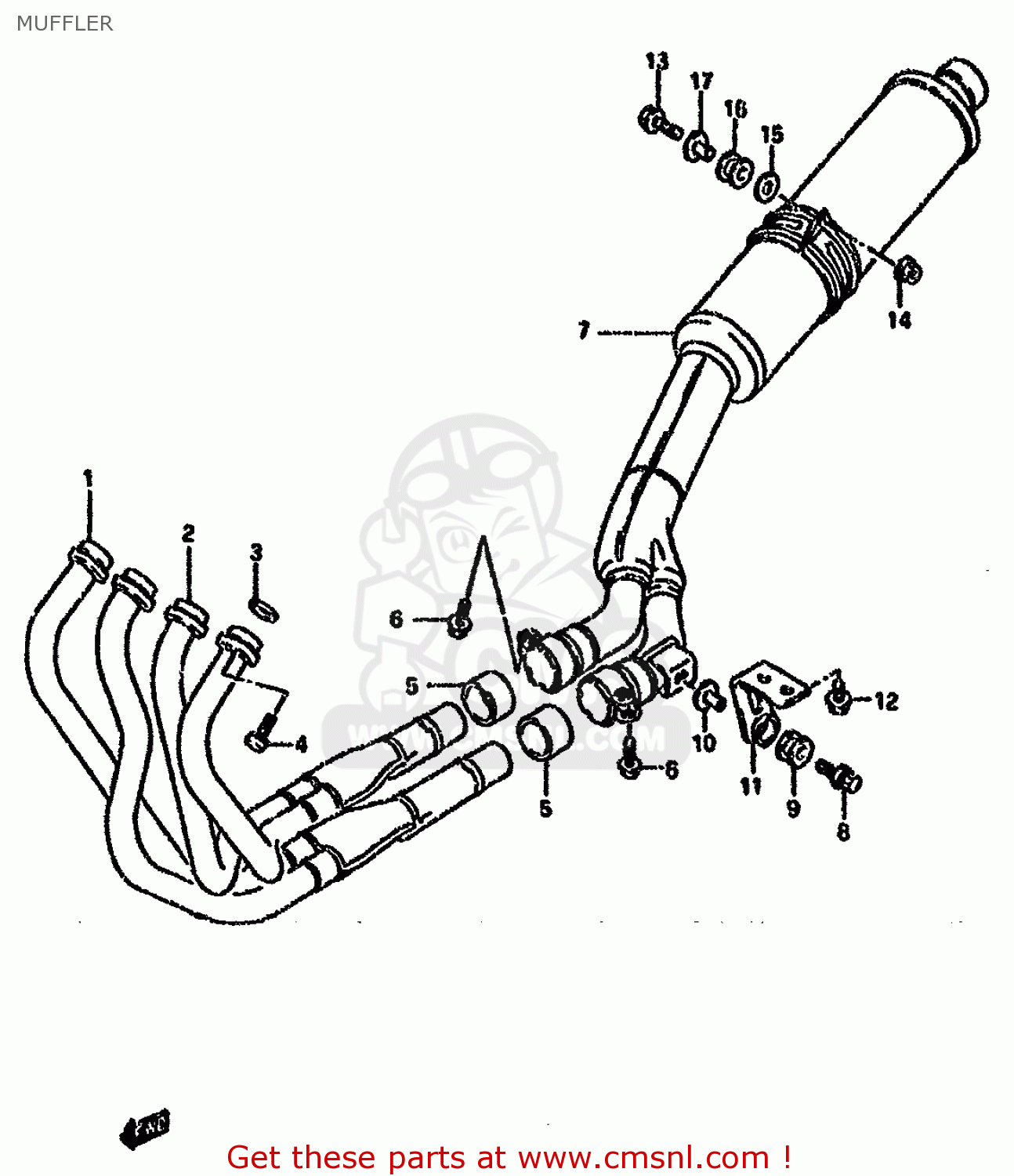

Muffler diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

MUFFLER GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
MUFFLER GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
MUFFLER GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1415017E01
ref: 1-1
MODEL N/P,-14150-17E
PIPE,EXHAUST,R
€ 408.50
1-2
1415017EA0
ref: 1-2
MODEL R/S
PIPE,EXHAUST RH
€ 457.00
1-3
1415017E20
ref: 1-3
MODEL N/P E4
PIPE,EXHAUST RH
€ 0.00
1-4
1415017E30
ref: 1-4
MODEL N/P E18,E39
PIPE,EXHAUST,RIGHT
€ 470.00
1-5
1415017ED0
ref: 1-5
MODEL R/S E18,E39
PIPE COMP,EXHAUST,RIGHT
€ 0.00
2-1
1416017E01
ref: 2-1
MODEL N/P,-14160-17E
PIPE,EXHAUST,L
€ 389.50
2-2
1410617EA0
ref: 2-2
MODEL R/S
PIPE,EXHAUST LH
€ 524.00
2-3
1416017E20
ref: 2-3
MODEL N/P E4
PIPE,EXHAUST LH
€ 0.00
2-4
1416017E30
ref: 2-4
MODEL N/P E18,E39
PIPE,EXHAUST,LEFT
€ 582.50
2-5
1410617ED0
ref: 2-5
MODEL R/S E18,E39
EXHAUST,LEFT
€ 0.00
3
1418117E00
ref: 3
GASKET,EXHAUST PIPE
1418117E00
€ 11.00
4-1
0711008255
ref: 4-1
MODEL N/P
BOLT
0711008255
€ 3.50
4-2
0713008253
ref: 4-2
MODEL R/S
BOLT
0713008253
€ 3.50
5
1477144B00
ref: 5
CONNECTOR,MUFFLER
1477144B00
€ 19.50
6-1
0151708407
ref: 6-1
MODEL N/P
BOLT 8X40
€ 3.50
6-2
0155008403
ref: 6-2
MODEL R/S
BOLT
0155008403
€ 3.50
7-1
1430517E02
ref: 7-1
MODEL N/P
BODY,MUFFLER
€ 1,104.50
7-2
1430517E03
ref: 7-2
MODEL R/S
BODY,MUFFLER
€ 1,104.50
7-3
1430517E12
ref: 7-3
MODEL N/P E2,E4,E15,
MUFFLER ASSY
€ 1,028.00
7-4
1430517E14H01
ref: 7-4
MODEL R/S E18,E39
MUFFLER ASSEMBLY
€ 1,028.00
7-5
1430517E41
ref: 7-5
MODEL N/P E24
BODY,MUFFLER
€ 0.00
7-6
1430517E60
ref: 7-6
MODEL R E24
BODY,MUFFLER
€ 0.00
7-7
1430517E03
ref: 7-7
MODEL S E24
BODY,MUFFLER
€ 1,104.50
8
0911808068
ref: 8
BOLT 8X40
€ 7.50
9
0932012048
ref: 9
CUSHION
0932012048
€ 5.00
10
0918008152
ref: 10
SPACER(8.6X12X24.2)
0918008152
€ 6.00
11
1477017E03
ref: 11
DAMPER,MUFFLER SUPPORT,FRONT
€ 21.00
12-1
0151708205
ref: 12-1
MODEL N/P
BOLT
€ 3.00
12-2
0910008240
ref: 12-2
MODEL R/S
BOLT(8X20)
0910008240
€ 3.50
13-1
0151708457
ref: 13-1
MODEL N/P
BOLT 8X45
€ 4.00
13-2
0155008457
ref: 13-2
MODEL R/S
BOLT
0155008457
€ 4.00
14-1
0831616088
ref: 14-1
MODEL N/P
NUT
0831616088
€ 2.50
14-2
0836125088
ref: 14-2
MODEL R/S
NUT
0836125088
€ 2.50
15
0916008106
ref: 15
WASHER (8.1X33X1.6)
€ 3.00
16
0932012049
ref: 16
CUSHION
0932012049
€ 9.00
17
0918008156
ref: 17
SPACER(8.6X12X27.1)
0918008156
€ 6.50
