CRANKCASE

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

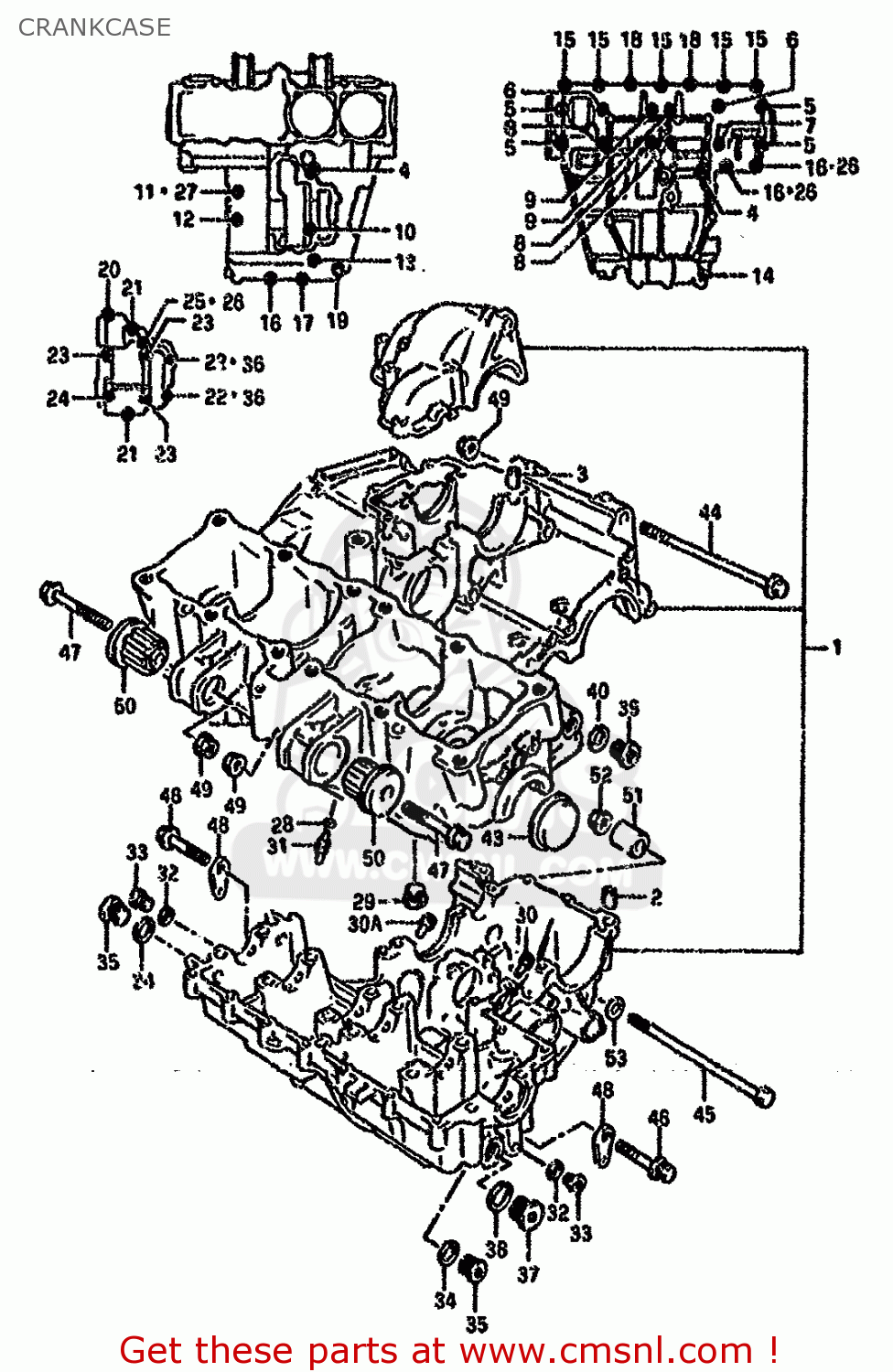

Crankcase diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

CRANKCASE GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
CRANKCASE GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
CRANKCASE GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1130017842
ref: 1-1
MODEL N
CRANKCASE SET
€ 2,080.50
1-2
1130017846
ref: 1-2
MODEL P
CRANKCASE SET
€ 2,080.50
1-3
1130017848
ref: 1-3
MODEL R
CRANKCASE SET
€ 2,080.50
1-4
1130246873
ref: 1-4
MODEL S
CRANKCASE SET
€ 2,080.50
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0421109129
ref: 3
PIN
0421109129
€ 2.00
4
0910306163
ref: 4
BOLT(6X105)
0910306163
€ 4.00
5
0910309007
ref: 5
BOLT 9X80
0910309007
€ 5.50
6
0910309008
ref: 6
BOLT(9X95)
0910309008
€ 6.00
7
0910309009
ref: 7
BOLT(9X105)
0910309009
€ 8.00
8
0910309010
ref: 8
BOLT(9X115)
0910309010
€ 6.00
9
0910609001
ref: 9
BOLT(9X60)
0910609001
€ 6.00
10-1
0711006758
ref: 10-1
MODEL N/P
BOLT
€ 3.00
10-2
0713006753
ref: 10-2
MODEL R/S
BOLT
0713006753
€ 3.00
11-1
0711008508
ref: 11-1
MODEL N/P
BOLT ,8X50
€ 3.50
11-2
0713008503
ref: 11-2
MODEL R/S
BOLT
0713008503
€ 3.50
12-1
0711008608
ref: 12-1
MODEL N/P
BOLT, REAR RH
0711008608
€ 4.50
12-2
0713008603
ref: 12-2
MODEL R/S
BOLT
€ 4.50
13-1
0713008808
ref: 13-1
MODEL N/P
BOLT
€ 3.00
13-2
0713008803
ref: 13-2
MODEL R/S
BOLT
€ 3.00
14-1
0151708605
ref: 14-1
MODEL N/P
BOLT 8X60
€ 3.50
14-2
0155008603
ref: 14-2
MODEL R/S
BOLT
€ 3.50
15-1
0151706354
ref: 15-1
MODEL N/P
BOLT 6X35
€ 2.50
15-2
0155006353
ref: 15-2
MODEL R/S
BOLT
0155006353
€ 2.50
16-1
0151706404
ref: 16-1
MODEL N/P
BOLT
0151706404
€ 2.00
16-2
0155006403
ref: 16-2
MODEL R/S
BOLT
0155006403
€ 2.00
17-1
0151706408
ref: 17-1
MODEL N/P
BOLT
0151706408
€ 2.50
17-2
0155006403
ref: 17-2
MODEL R/S
BOLT
0155006403
€ 2.00
18-1
0151706505
ref: 18-1
MODEL N/P
BOLT 6X50
0151706505
€ 2.00
18-2
0155006503
ref: 18-2
MODEL R/S
BOLT
0155006503
€ 2.00
19-1
0151706655
ref: 19-1
MODEL N/P
BOLT
€ 2.50
19-2
0155006653
ref: 19-2
MODEL R/S
BOLT
€ 2.50
20-1
0711006257
ref: 20-1
MODEL N/P
BOLT
€ 2.50
20-2
0713006253
ref: 20-2
MODEL R/S
BOLT,CL.COVER
0713006253
€ 3.00
21-1
0711006357
ref: 21-1
MODEL N/P
BOLT
€ 3.50
21-2
0713006353
ref: 21-2
MODEL R/S
BOLT
€ 3.50
22-1
0711006408
ref: 22-1
MODEL N/P
BOLT
€ 2.50
22-2
0713006403
ref: 22-2
MODEL R/S
BOLT
0713006403
€ 3.50
23-1
0711006508
ref: 23-1
MODEL N/P
BOLT
€ 3.00
23-2
0713006503
ref: 23-2
MODEL R/S
BOLT,CL.COVER
0713006503
€ 3.00
24-1
0711006608
ref: 24-1
MODEL N/P
BOLT
€ 3.00
24-2
0713006603
ref: 24-2
MODEL R/S
BOLT
€ 3.00
25
0910306062
ref: 25
BOLT(6X145)
0910306062
€ 3.50
26
0916806018
ref: 26
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
27
0916808016
ref: 27
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
28
0928004004
ref: 28
O RING(D:1.2,ID:4)
0928004004
€ 2.00
29
0924818002
ref: 29
PLUG,CRANKCASE,UPPER
0924818002
€ 4.00
30
0949324010
ref: 30
JET
0949324010
€ 12.00
30A
0949328012
ref: 30A
JET(140)
€ 8.00
31
0949380008
ref: 31
JET,OIL GALLERY
0949380008
€ 8.50
32
0916810002
ref: 32
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
33
0924810007
ref: 33
PLUG(10X6.8)
0924810007
€ 4.50
34
0916816002
ref: 34
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
35
0924816010
ref: 35
PLUG
0924816010
€ 4.50
36
0916806024
ref: 36
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
37
0924822002
ref: 37
PLUG(22X11)
0924822002
€ 9.00
38
0916822002
ref: 38
GASKET(22X27X2) (NAS)
0916822002
€ 3.50
39
0924814010
ref: 39
PLUG
0924814010
€ 5.00
40
0916814002
ref: 40
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
41
1222817E000D0
ref: 41
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
42-1
1222817E000A0
ref: 42-1
SEE ILLUSTRATION ON
BEARING,CRANK THRUST(RED)
1222817E000A0
€ 7.50
42-2
1222817E000B0
ref: 42-2
BEARING,CRANK THRUST(BLACK)
1222817E000B0
€ 7.50
42-3
1222817E000C0
ref: 42-3
BEARING,CRANK THRUST(BLUE)
1222817E000C0
€ 7.50
42-4
1222817E000D0
ref: 42-4
BEARING,CRANK THRUST(GREEN)
1222817E000D0
€ 8.00
42-5
1222817E000E0
ref: 42-5
BEARING,CRANK THRUST(YELLOW)
1222817E000E0
€ 7.50
42-6
1222817E000F0
ref: 42-6
BEARING,CRANK THRUST(WHITE)
1222817E000F0
€ 7.50
43
0924137002
ref: 43
PLUG
0924137002
€ 13.50
44
0910310139
ref: 44
BOLT 10X150
€ 8.50
45-1
0910012028
ref: 45-1
MODEL N
BOLT(12X185)
0910012028
€ 6.00
45-2
0910012043
ref: 45-2
MODEL P/R/S
BOLT,ENGINE MOUNTING,REAR,LOWER
0910012043
€ 7.00
46-1
0198710558
ref: 46-1
MODEL N/P
BOLT
€ 3.00
46-2
0158010603
ref: 46-2
MODEL R
BOLT
€ 3.50
46-3
0158010553
ref: 46-3
MODEL S
BOLT
€ 3.00
47-1
0151710558
ref: 47-1
MODEL N/P
BOLT 10X55
€ 3.00
47-2
0155010553
ref: 47-2
MODEL R/S
BOLT
€ 3.00
48
1161333C00
ref: 48
NUT,ENGINE MOUNT,LOWER
1161333C00
€ 7.50
49
0915910058
ref: 49
NUT
0915910058
€ 4.00
50
1168127A00
ref: 50
BUSH,ENGINE MOUNTING
1168127A00
€ 27.00
51-1
1161140C01
ref: 51-1
MODEL N
SPACER,ENGINE MOUNTING
€ 9.50
51-2
1161119B11
ref: 51-2
MODEL P
SPACER,ENGINE MOUNT
€ 10.00
51-3
1161117E00
ref: 51-3
MODEL R/S
SPACER,ENGINE MOUNTING (L:13)(AL)
€ 10.00
52
0831931128
ref: 52
NUT 12MM
0831931128
€ 4.00
53-1
0832211128
ref: 53-1
MODEL N/P
WASHER
0832211128
€ 2.00
53-2
0832201123
ref: 53-2
MODEL R/S
WASHER
€ 2.00
