CLUTCH

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

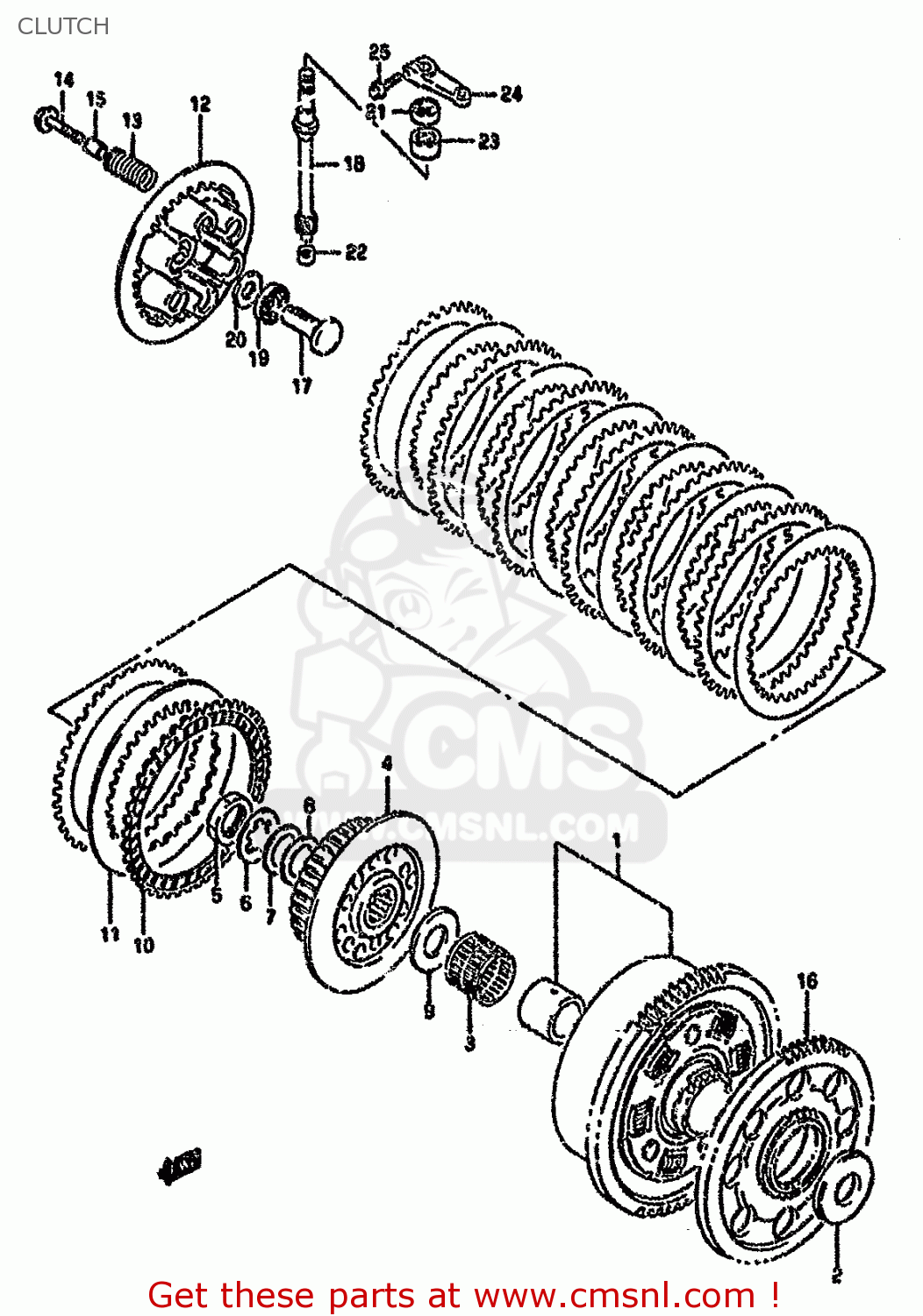

Clutch diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

CLUTCH GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
CLUTCH GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
CLUTCH GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
2120017841
ref: 1-1
MODEL N/P
GEAR ASSY,PRI DRIVEN
€ 354.50
1-2
2120021841
ref: 1-2
MODEL R/S
GEAR ASSEMBLY,PRIMARY DRIVE
€ 285.50
2
0916023067
ref: 2
WASHER
€ 0.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4-1
2141017E02
ref: 4-1
-21410-17E10 W/09164
HUB,CLUTCH SLEEVE
€ 111.00
4-2
2141017E10
ref: 4-2
F.NO.GR7BA-101677~E.
HUB,CLUTCH SLEEVE
€ 111.00
4-3
2141117E20
ref: 4-3
MODEL R/S
HUB,CLUTCH SLEEVE
€ 111.00
5
0914024012
ref: 5
NUT
0914024012
€ 6.00
6
0916725007
ref: 6
WASHER,LOCK
0916725007
€ 7.50
7-1
0916424006
ref: 7-1
WASHER
0916424006
€ 4.00
7-2
0916425001
ref: 7-2
F.NO.GR7BA-101677~E.
WASHER
0916425001
€ 4.50
8-1
0822125365
ref: 8-1
SHIM
0822125365
€ 4.50
8-2
0821125441
ref: 8-2
F.NO.GR7BA-101677~E.
WASHER
0821125441
€ 2.00
9
0916025056
ref: 9
WASHER(25X50X2.5)
0916025056
€ 9.50
10-1
2144117E10
ref: 10-1
MODEL N/P/R
PLATE,CLUTCH DRIVE
€ 22.00
10-2
2144117E21
ref: 10-2
MODEL S
PLATE,CLUTCH DRIVE (NAS)
2144117E21
€ 22.00
11
2145117E00
ref: 11
PLATE,CLUTCH DRIVEN
2145117E00
€ 9.00
12-1
2146217E01
ref: 12-1
MODEL N
DISC,CLUTCH PRESSURE
2146217E01
€ 76.00
12-2
2146217D01
ref: 12-2
MODEL P
DISC,CLUTCH PRESSURE
€ 76.00
12-3
2146217E01
ref: 12-3
MODEL R/S
DISC,CLUTCH PRESSURE
2146217E01
€ 76.00
13
0944020020
ref: 13
SPRING
0944020020
€ 8.50
14-1
0911606158
ref: 14-1
MODEL N
BOLT
0911606158
€ 3.50
14-2
0911606161
ref: 14-2
MODEL P/R/S
BOLT(6X40)
€ 3.50
15-1
0918006240
ref: 15-1
MODEL N
SPACER
0918006240
€ 3.50
15-2
0918006198
ref: 15-2
MODEL P/R/S
SPACER(6.2X12X16)
0918006198
€ 3.50
16-1
2272117E00
ref: 16-1
MODEL N/P
GEAR,GENERATOR DRIVE
€ 192.50
16-2
2272121E01
ref: 16-2
MODEL R/S
GEAR,GENERATOR DRIVE
€ 192.50
17-1
2316507D00
ref: 17-1
MODEL N/P
RACK,CLUTCH RELEASE
€ 82.00
17-2
2316521E00
ref: 17-2
MODEL R/S
RACK,CLUTCH RELEASE
2316521E00
€ 82.00
18-1
2326117C00
ref: 18-1
MODEL N/P
PINION,CLUTCH RELEASE
2326117C00
€ 38.00
18-2
2326121E00
ref: 18-2
MODEL R/S
PINION,CLUTCH RELEASE
€ 40.50
19
0926315003
ref: 19
BEARING(15X28X2)
0926315003
€ 7.00
20-1
0916015015
ref: 20-1
MODEL N/P
WASHER
€ 4.00
20-2
0916015045
ref: 20-2
MODEL R/S
WASHER(15.5X28X1)
0916015045
€ 4.00
21
0928512002
ref: 21
OIL SEAL
0928512002
€ 7.00
22
0926310013
ref: 22
BEARING 10X14X10
€ 12.00
23
0926315012
ref: 23
BEARING(15X22X12)
0926315012
€ 11.50
24
2327140000
ref: 24
ARM,CLUTCH RELEASE
2327140000
€ 40.50
25-1
0154706207
ref: 25-1
MODEL N/P
BOLT
0154706207
€ 2.50
25-2
0150006203
ref: 25-2
MODEL R/S
BOLT
0150006203
€ 2.00
