SIGNAL GENERATOR

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

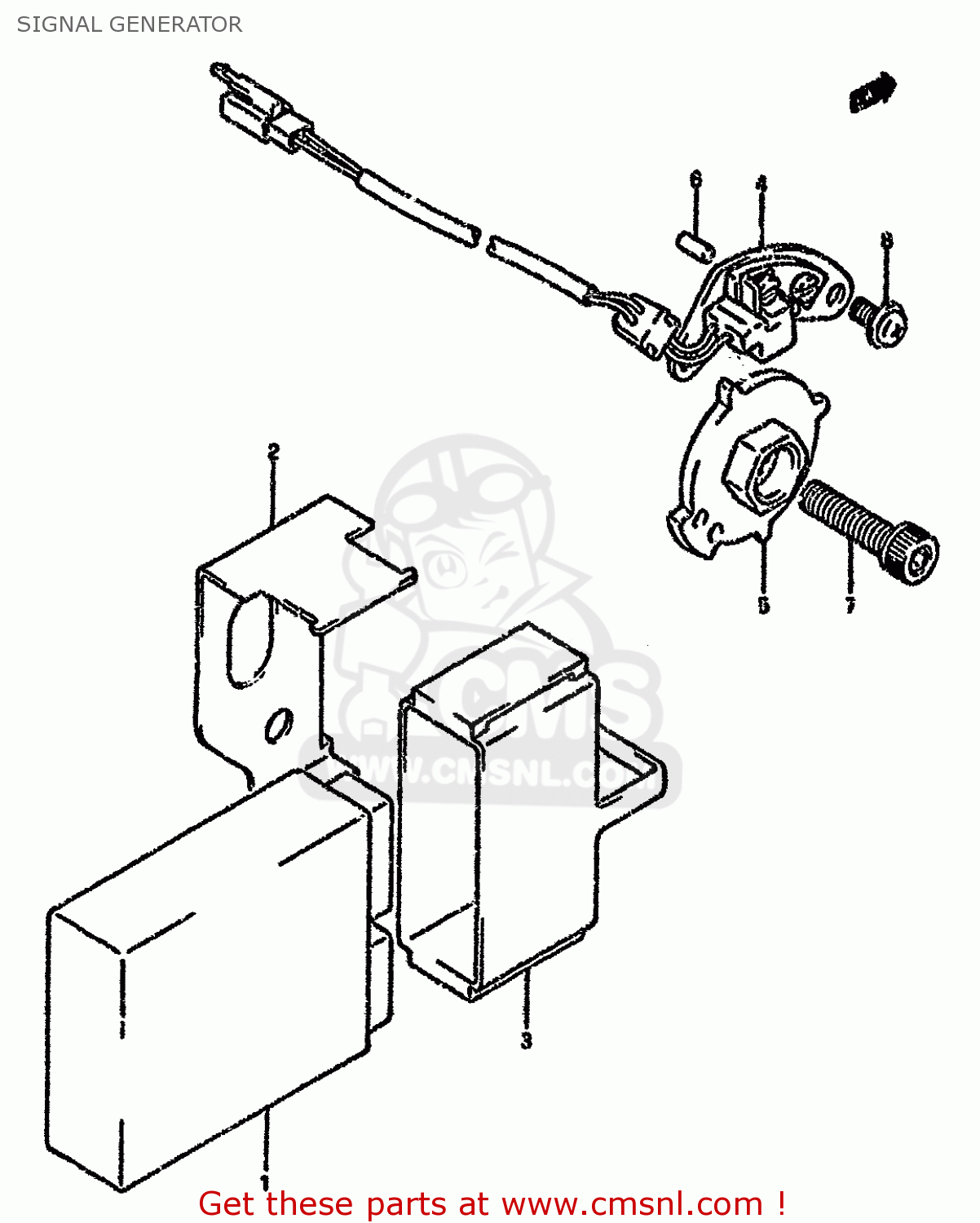

Signal generator diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

SIGNAL GENERATOR GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

SIGNAL GENERATOR GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3290017E00
ref: 1-1
MODEL N/P

IGNITOR ASSY

€ 514.00

1-2

3290017E40
ref: 1-2
MODEL R/S

IGNITOR ASSY

€ 564.50

1-3

3290017E30
ref: 1-3
MODEL N/P E4

IGNITER ASSY

€ 514.00

1-4

3290017E70
ref: 1-4
MODEL R/S E4

IGNITER ASSY

€ 0.00

1-5

3290017E10
ref: 1-5
MODEL N/P E18,E39

IGNITER ASSEMBLY

€ 457.00

1-6

3290017E90
ref: 1-6
MODEL R/S E18,E39

IGNITER ASSEMBLY

€ 755.50

1-7

3290017EB0
ref: 1-7
MODEL R/S E22

IGNITER ASSY

€ 0.00

1-8

3290017E50
ref: 1-8
OPT,MODEL S E22

IGNITOR

€ 652.00

2

3293117E00
ref: 2

BRACKET,IGNITOR

€ 28.50

3-1

3298040C00
ref: 3-1
MODEL N/P

CUSHION,IGNITER

€ 9.50

3-2

3298040C01
ref: 3-2
MODEL R/S

CUSHION,IGNITOR

€ 9.50

4

3311017E00
ref: 4

STARTER,SIGNAL GENERATOR

€ 203.50

5-1

3312017E00
ref: 5-1
MODEL N/P

ROTOR,SIGNAL GENERATOR

€ 115.00

5-2

3312017E20
ref: 5-2
MODEL R/S

ROTOR,SIGNAL GENERATOR

€ 115.00

5-3

3312017E10
ref: 5-3
MODEL N/P E18,E39

ROTOR,SIGNAL GENERATOR

€ 62.00

6

0422104089
ref: 6

PIN

€ 1.50

7-1

0711008306
ref: 7-1
MODEL N/P

BOLT

€ 3.00

7-2

0713008303
ref: 7-2
MODEL R/S

BOLT

€ 3.00

8-1

0215205108
ref: 8-1
MODEL N/P

SCREW

€ 2.50

8-2

0214205103
ref: 8-2
MODEL R/S

SCREW

€ 2.50
