Buy Suzuki GSXR Parts Online


REAR CUSHION LEVER (MODEL R/S)

GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

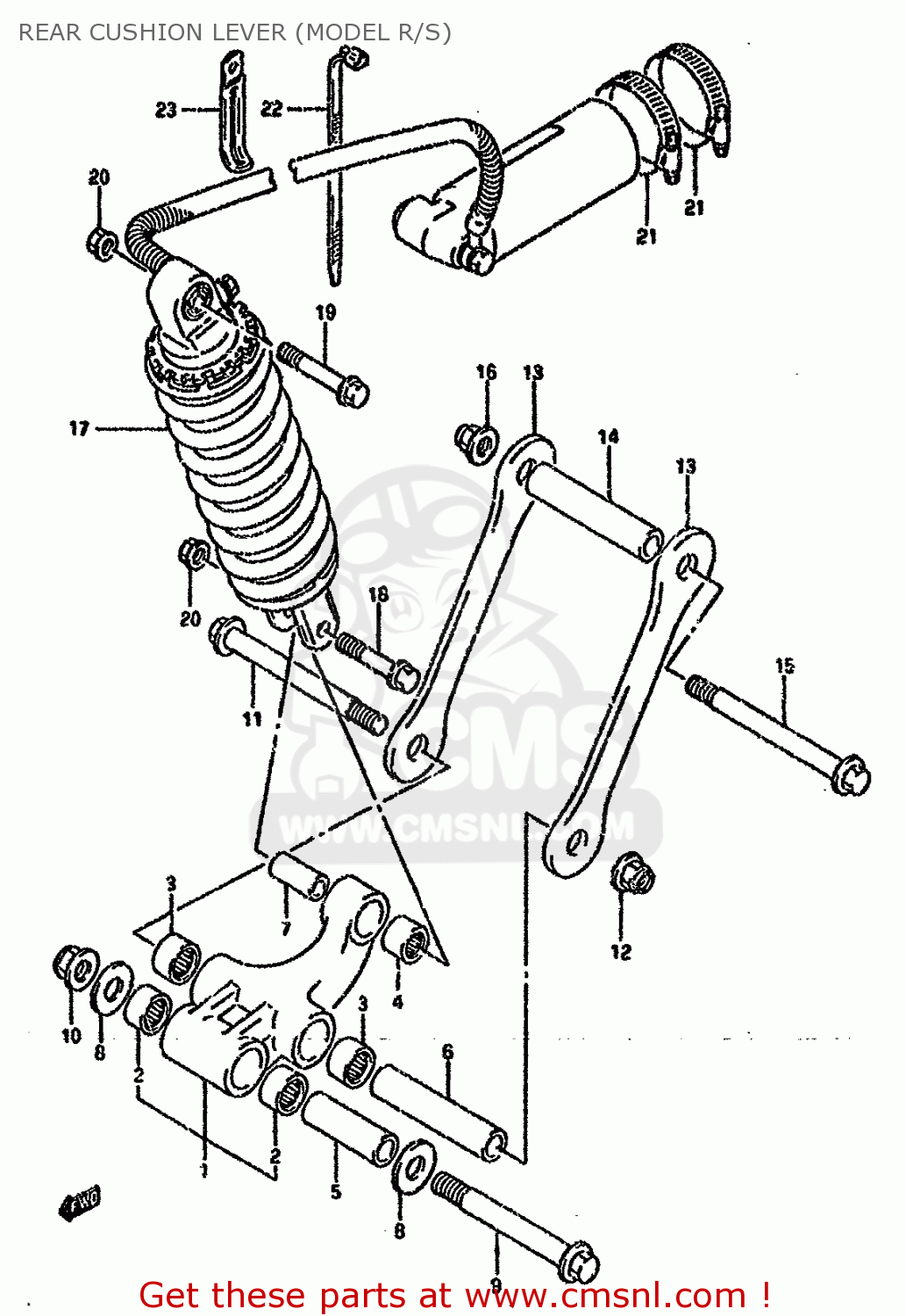

Rear cushion lever (model r/s) diagram GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)

REAR CUSHION LEVER (MODEL R/S) GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
REAR CUSHION LEVER (MODEL R/S) GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
REAR CUSHION LEVER (MODEL R/S) GSXR750W 1994 (R) (E01 E02 E04 E18 E22 E24 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
6260017810
ref: 1-1
MODEL R
LEVER SET,REAR CUSHION
€ 292.00
1-2
6260017811
ref: 1-2
MODEL S
LEVER SET,REAR CUSHION
€ 292.00
2
0926320071
ref: 2
BEARING(20X27X23.5)
0926320071
€ 21.50
3
0926317039
ref: 3
BEARING(17X24X20)
0926317039
€ 18.00
4
0926317034
ref: 4
BEARING(17X24X26)
0926317034
€ 21.50
5
6231717C00
ref: 5
SPACER,RR CUSHION LEVER
6231717C00
€ 26.00
6
0918012122
ref: 6
SPACER(12X17X85)
0918012122
€ 15.00
7
6268440A10
ref: 7
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
8
0821114323
ref: 8
WASHER
0821114323
€ 3.50
9
6262117C00
ref: 9
SHAFT,RR CUSHION LEVER FR
6262117C00
€ 9.50
10
0831931148
ref: 10
NUT
0831931148
€ 9.00
11-1
0910312037
ref: 11-1
MODEL R
BOLT(12X115)
0910312037
€ 11.00
11-2
0910312041
ref: 11-2
MODEL S
BOLT(12X118)
0910312041
€ 11.50
12
0831931128
ref: 12
NUT 12MM
0831931128
€ 4.00
13-1
6264117E10
ref: 13-1
MODEL R-62640-17E10
ROD,REAR CUSHION
€ 25.00
13-2
6264017E10
ref: 13-2
MODEL S
ROD,REAR CUSHION LEVER
€ 25.00
14
0918012122
ref: 14
SPACER(12X17X85)
0918012122
€ 15.00
15-1
0910312037
ref: 15-1
MODEL R
BOLT(12X115)
0910312037
€ 11.00
15-2
0910312041
ref: 15-2
MODEL S
BOLT(12X118)
0910312041
€ 11.50
16
0831931128
ref: 16
NUT 12MM
0831931128
€ 4.00
17
6210017E30
ref: 17
ABSORBER ASSEMBLY,REAR SHOCK
€ 1,774.50
18
0910310101
ref: 18
BOLT(10X54)
0910310101
€ 3.00
19
0910310032
ref: 19
BOLT(10X75)
0910310032
€ 6.50
20
0831931107
ref: 20
NUT
0831931107
€ 3.00
21
0940260502
ref: 21
CLAMP
0940260502
€ 8.50
22
0940718403
ref: 22
CLAMP L:165
€ 2.50
23
0940408419
ref: 23
CLAMP(L:80)
€ 2.00
