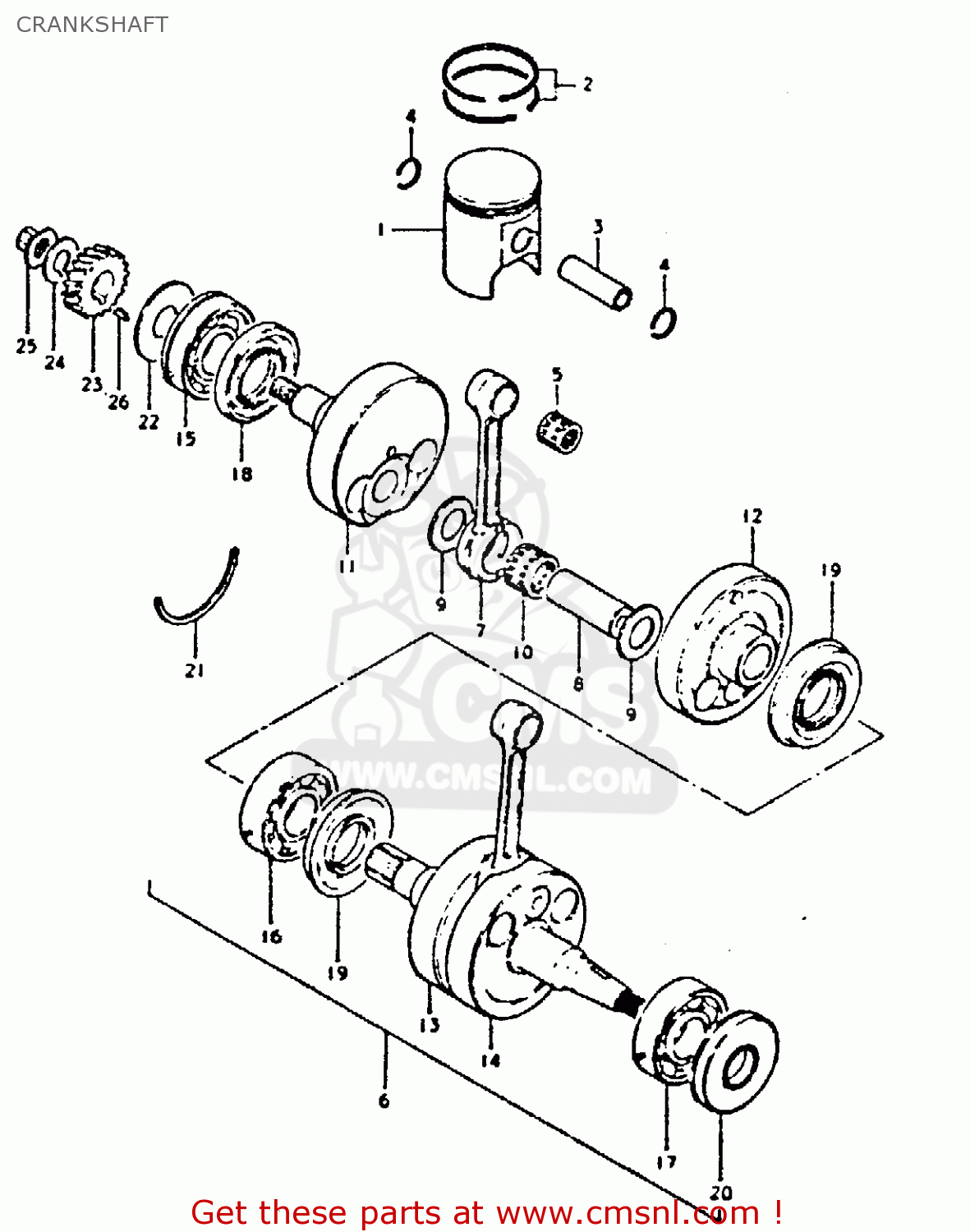

CRANKSHAFT

ref

part #

description

quantity

1-1

1211011300
ref: 1-1

PISTON

€ 66.00

1-2

1211011300050
ref: 1-2

PISTON (54.5MM

€ 117.00

1-3

1211011300100
ref: 1-3

PISTON (55.0MM

€ 107.50

2-1

1214033012
ref: 2-1

RING SET,PISTON

€ 49.00

2-2

1214033012050
ref: 2-2

RING SET,PISTON(OS:0.50)

€ 38.50

2-3

1214033012100
ref: 2-3

RING SET,PISTON(OS:1.0)

€ 45.00

3

1215107000
ref: 3

PIN,PISTON 14MM

€ 10.00

4

0938114001
ref: 4

RING,SNAP 14MM

€ 1.50

5

0926314006
ref: 5

BEARING

€ 10.00

6

1220011302
ref: 6

CRANKSHAFT ASSY

€ 733.00

7

1216112002
ref: 7

CONNECTING ROD

€ 54.50

8

1221110302
ref: 8

PIN,CRANK

€ 25.00

9

0916019001
ref: 9

WASHER(19X32X1)

€ 3.50

10

0926319012
ref: 10

BEARING(19X25X16)

€ 20.00

11

1222111300
ref: 11

CRANKSHAFT, RH

€ 0.00

12

1223111300
ref: 12

WEB, CRANK

€ 0.00

13

1224111300
ref: 13

CRANKSHAFT, MIDDLE

€ 102.00

14

1226111300
ref: 14

CRANKSHAFT, LH

€ 195.50

15

0926225036
ref: 15
25*62*17

BEARING(25X62X17)

€ 38.50

16

0926225056
ref: 16
25*62*17

BEARING

€ 55.00

17

0926225056
ref: 17
25*62*17

BEARING

€ 55.00

18

0928932001
ref: 18
30.8*62*9.5

OIL SEAL

€ 38.00

19

0928933007
ref: 19
33.5*66*8

OIL SEAL, MIDDLE

€ 32.50

20

0928325014
ref: 20
24.2*62*8

SEAL,OIL(25X62X8)

€ 11.00

21

0939062009
ref: 21

C RING

€ 5.00

22

0916020025
ref: 22

WASHER(20X48X1)

€ 2.50

23

2111111300
ref: 23

GEAR, PRIMARY DRIVE (NT:20)

€ 0.00

24

0916612002
ref: 24

WASHER

€ 2.00

25

0915912103
ref: 25

NUT

€ 9.00

26

0834131049
ref: 26

KEY 4MM

€ 3.50
