Buy Suzuki GT Parts Online


MUFFLER

GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

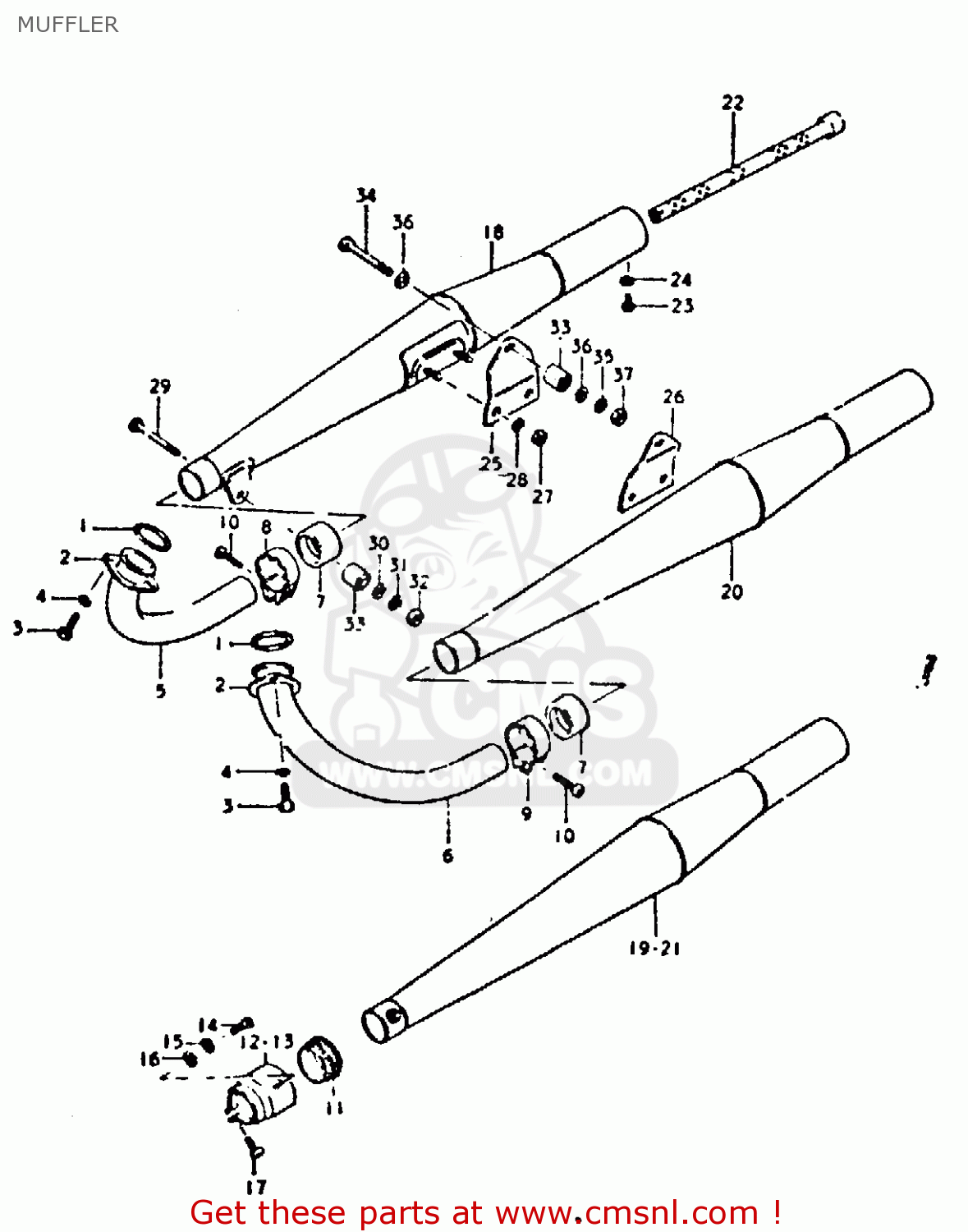

Muffler diagram GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

MUFFLER GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
MUFFLER GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
MUFFLER GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
prices are in EUR
ref
part #
description
quantity
1
1418111010
ref: 1
GASKET,EXHAUST PIPE (NAS)
1418111010
€ 8.00
2
1418211301
ref: 2
CLAMP
€ 24.00
3
0110708258
ref: 3
BOLT
0110708258
€ 2.50
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
1415011302
ref: 5
PIPE,EXHAUST,R
1415011302
€ 84.00
6
1416011302
ref: 6
PIPE, EXHAUST LH
€ 84.00
7
1477111300
ref: 7
CONNECTOR,MUFFLER
1477111300
€ 13.50
8
1445911300
ref: 8
CLAMP,R
1445911300
€ 12.00
9
1446911300
ref: 9
CLAMP, LH
1446911300
€ 14.50
10
0211206258
ref: 10
SCREW
€ 2.00
11
1477111302
ref: 11
CONNECTOR,MUFFLER
1477111302
€ 13.50
12
1478011301
ref: 12
COVER, MUFFLER RH
1478011301
€ 15.00
13
1479011301
ref: 13
COVER,MUFFLER,L
1479011301
€ 32.50
14
0211205088
ref: 14
SCREW
0211205088
€ 2.00
15
0832121058
ref: 15
LOCK WASHER
0832121058
€ 2.00
16
0832221058
ref: 16
WASHER
€ 2.50
17
0211205208
ref: 17
SCREW 5X20
0211205208
€ 3.00
18
1430111311
ref: 18
TO 14301-11312 USED
MUFFLER ASSY, RH
€ 1,982.50
19-1
1430111312
ref: 19-1
MUFFLER,R
1430111312
€ 1,982.50
19-2
NOTUSED
ref: 19-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
1430211311
ref: 20
TO 14302-11312 USED
MUFFLER ASSY, LH
€ 2,038.00
21-1
1430211312
ref: 21-1
MUFFLER,L
1430211312
€ 2,038.00
21-2
NOTUSED
ref: 21-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
22
1451011300
ref: 22
PIPE,BAFFLE,L
1451011300
€ 57.50
23-1
0912805004
ref: 23-1
BOLT(5X8)
0912805004
€ 2.00
23-2
NOTUSED
ref: 23-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
24
0832121058
ref: 24
LOCK WASHER
0832121058
€ 2.00
25
1441111303
ref: 25
BRACKET, RH
€ 11.50
26
1442111303
ref: 26
BRACKET, LH
€ 11.50
27
0831012088
ref: 27
NUT
0831012088
€ 2.00
28
0832121088
ref: 28
LOCK WASHER
0832121088
€ 2.00
29
0151710558
ref: 29
BOLT 10X55
€ 3.00
30
0832211108
ref: 30
WASHER
€ 2.50
31
0832121108
ref: 31
LOCK WASHER
0832121108
€ 2.00
32
0831011108
ref: 32
NUT
0831011108
€ 2.50
33
0931910029
ref: 33
BUSH
0931910029
€ 9.00
34
0110710558
ref: 34
BOLT 10X55
0110710558
€ 3.50
35
0832131108
ref: 35
LOCK WASHER
€ 2.00
36
0832221108
ref: 36
WASHER
0832221108
€ 2.50
37
0915910014
ref: 37
NUT
0915910014
€ 2.00
