FRAME COVER (MODEL X)

GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

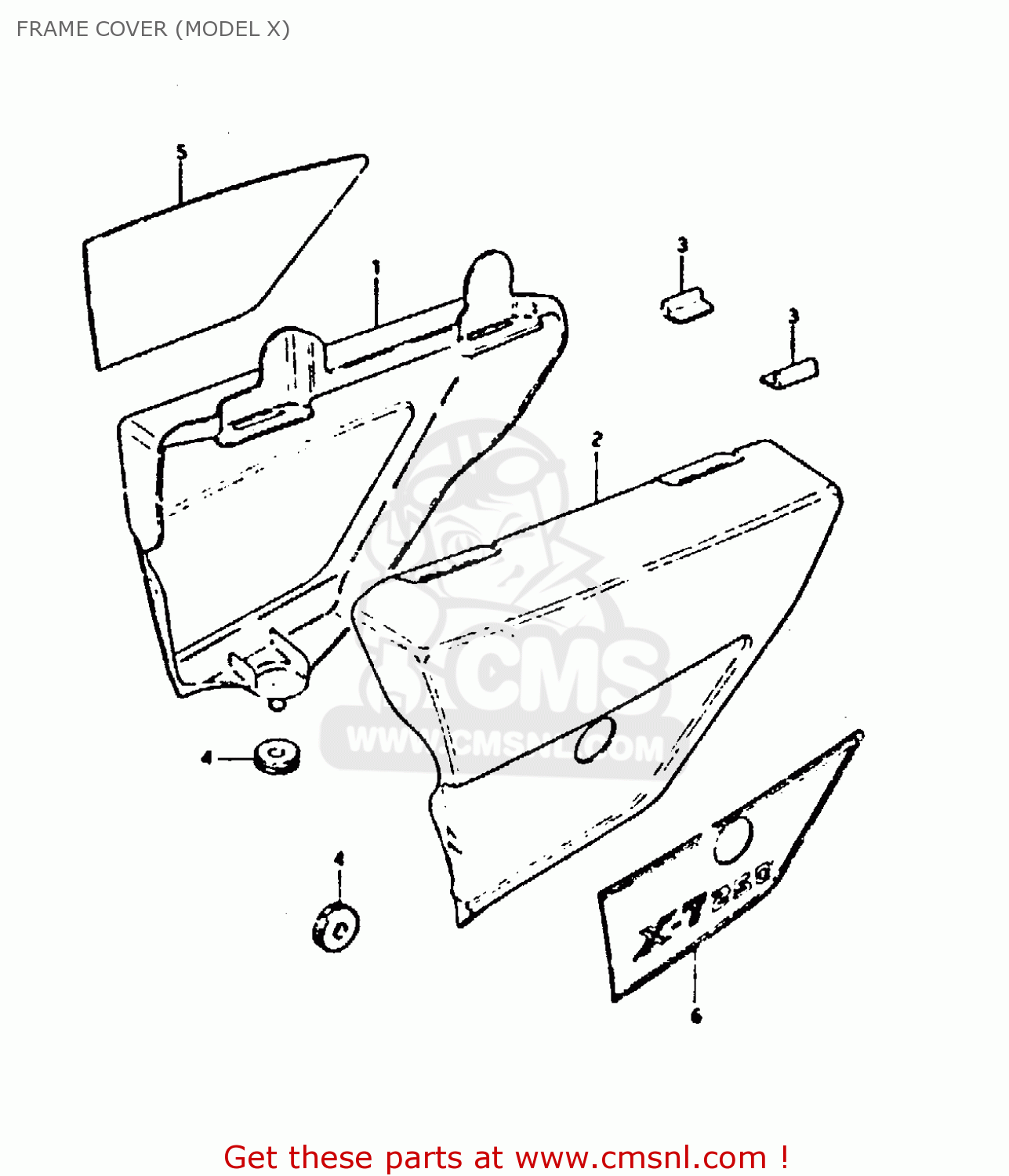

Frame cover (model x) diagram GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

prices are in EUR

ref

part #

description

quantity

1-1

471111130005K
ref: 1-1

COVER, RH (BLUE)

€ 37.00

1-2

4711111300019
ref: 1-2

COVER, RH (BLUE)

€ 37.00

1-3

471111130007P
ref: 1-3

COVER, RH (RED)

€ 37.00

2-1

472111130005K
ref: 2-1

COVER, LH (BLUE)

€ 35.00

2-2

4721111300019
ref: 2-2

COVER, LH (BLACK)

€ 35.00

2-3

472111130007P
ref: 2-3

COVER, LH (RED)

€ 35.00

4711745000
ref: 3

CUSHION,FRAME COVER

€ 1.50

4-1

0932008013
ref: 4-1
TO 09320-08018

CUSHION

€ 4.00

4-2

0932008018
ref: 4-2

CUSHION

€ 4.00

6813111350
ref: 5

EMBLEM, RH

€ 0.00

6814111350
ref: 6

EMBLEM, LH

€ 0.00
