FUEL COCK

GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

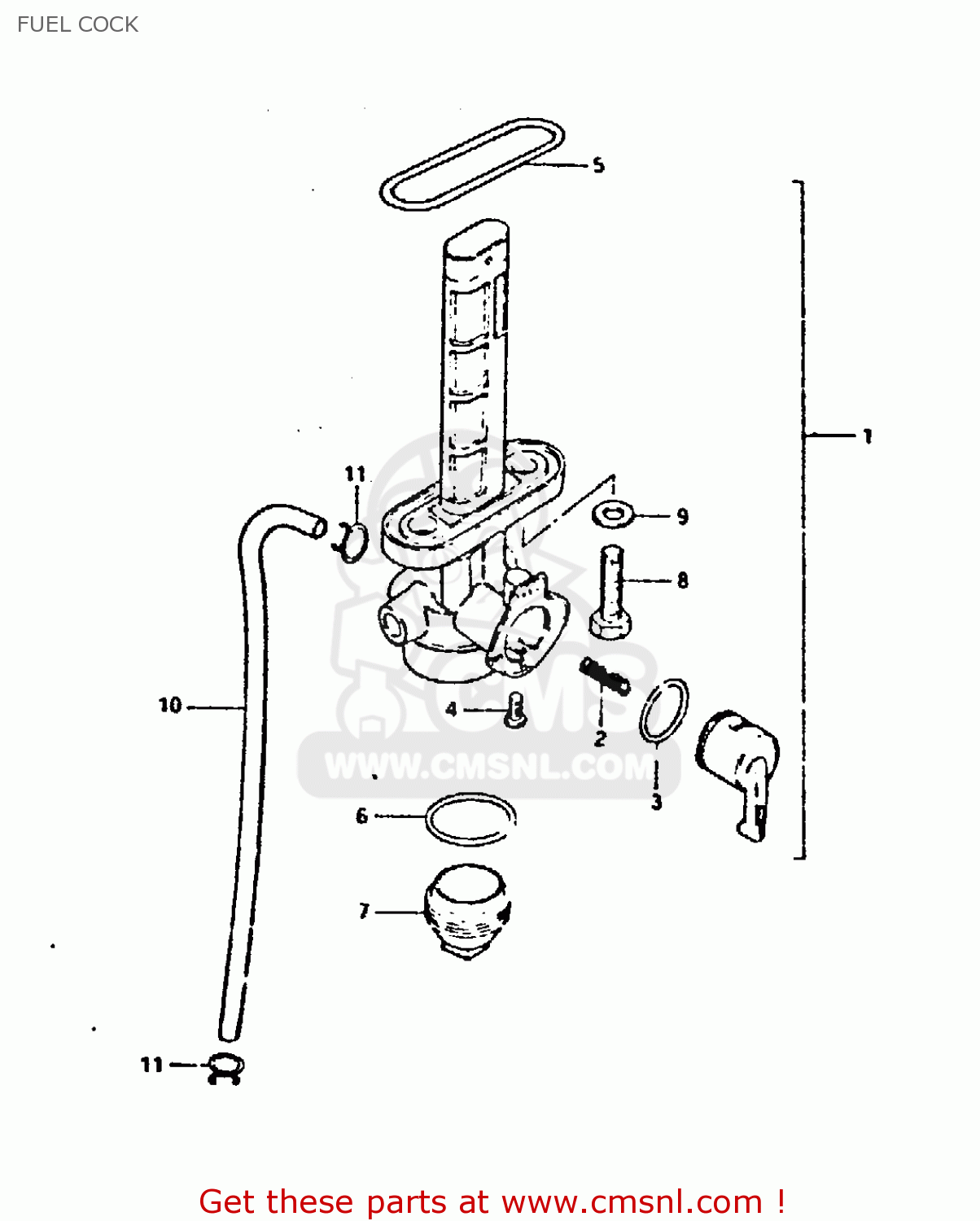

Fuel cock diagram GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

prices are in EUR

ref

part #

description

quantity

4430011371
ref: 1
FROM 44300-11370

COCK ASSY, FUEL

€ 55.00

4435732470
ref: 2

SPRING

€ 2.00

4435332470
ref: 3

O-RING

€ 7.50

4434341370
ref: 4

SCREW

€ 2.00

4434828070
ref: 5

O RING,FUEL COCK

€ 4.50

4434628070
ref: 6

GASKET,FILTER (NAS)

€ 2.50

4434728071
ref: 7

CUP,STRAINER

€ 7.50

0912806006
ref: 8

BOLT(6X20)

€ 2.00

0916806010
ref: 9

GASKET

€ 2.00

0934305129
ref: 10

HOSE

€ 13.00

0940108402
ref: 11

CLIP

€ 1.50
