LEFT HANDLE SWITCH (MODEL X)

GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

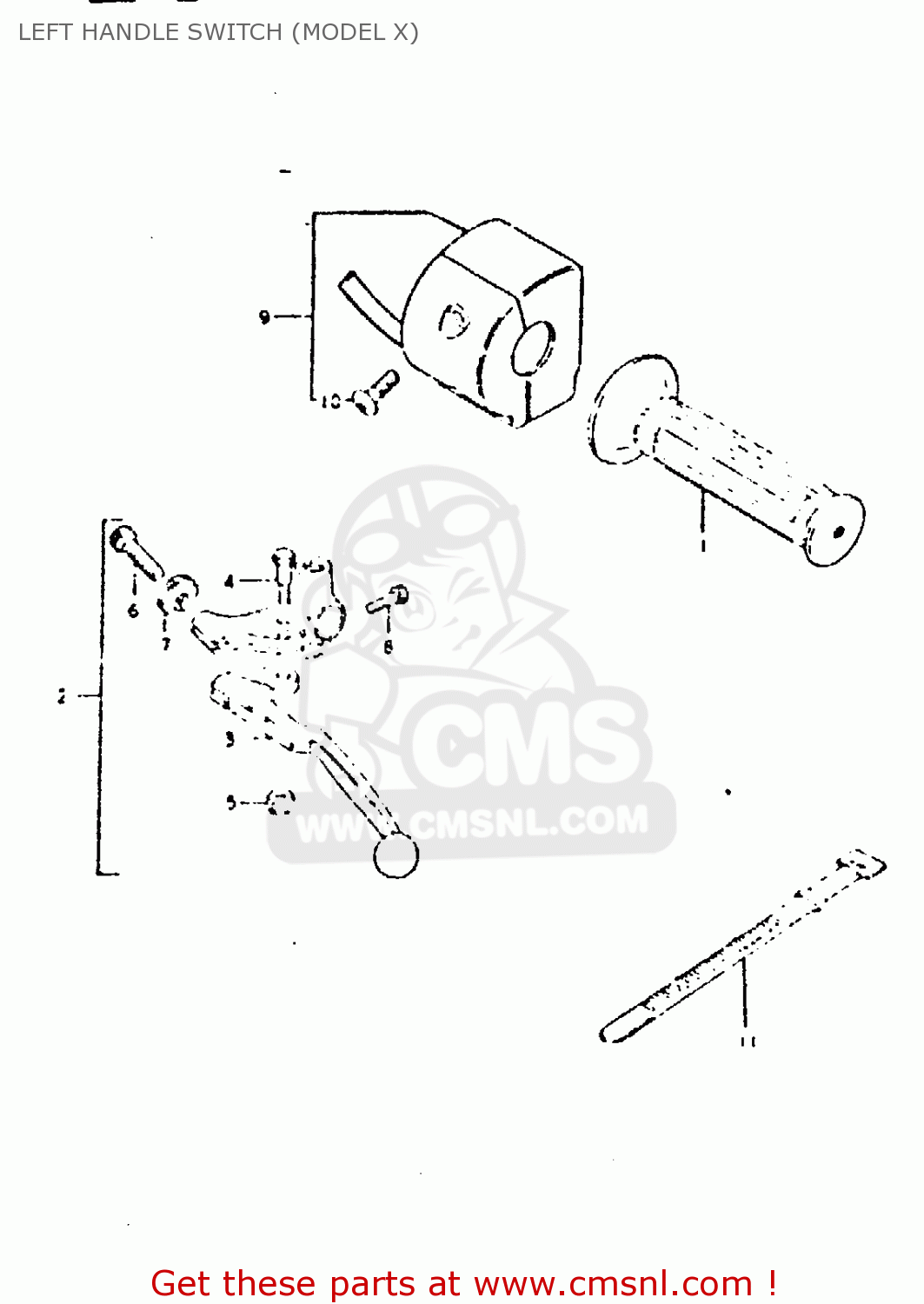

Left handle switch (model x) diagram GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

LEFT HANDLE SWITCH (MODEL X) GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

LEFT HANDLE SWITCH (MODEL X) GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

prices are in EUR

ref

part #

description

quantity

1

5721145030
ref: 1

GRIP,LEFT

€ 18.50

2

5750049101
ref: 2
TO 57500-49102

LEVER ASSY, CLUTCH

€ 49.50

3

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

4

5743111011
ref: 4

BOLT,LEVER

€ 6.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

7

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

8-1

0110706208
ref: 8-1
WHEN 57500-49101

BOLT

€ 2.00

8-2

5745118621
ref: 8-2
WHEN 57500-49102

BOLT

€ 3.00

9

3740049110
ref: 9

SWITCH ASSY, HANDLE LH

€ 149.00

10

0211205168
ref: 10

SCREW

€ 2.50

11

0940712402
ref: 11

CLAMP(L:120)

€ 3.00
