FRONT FENDER - HEADLAMP HOUSING

GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

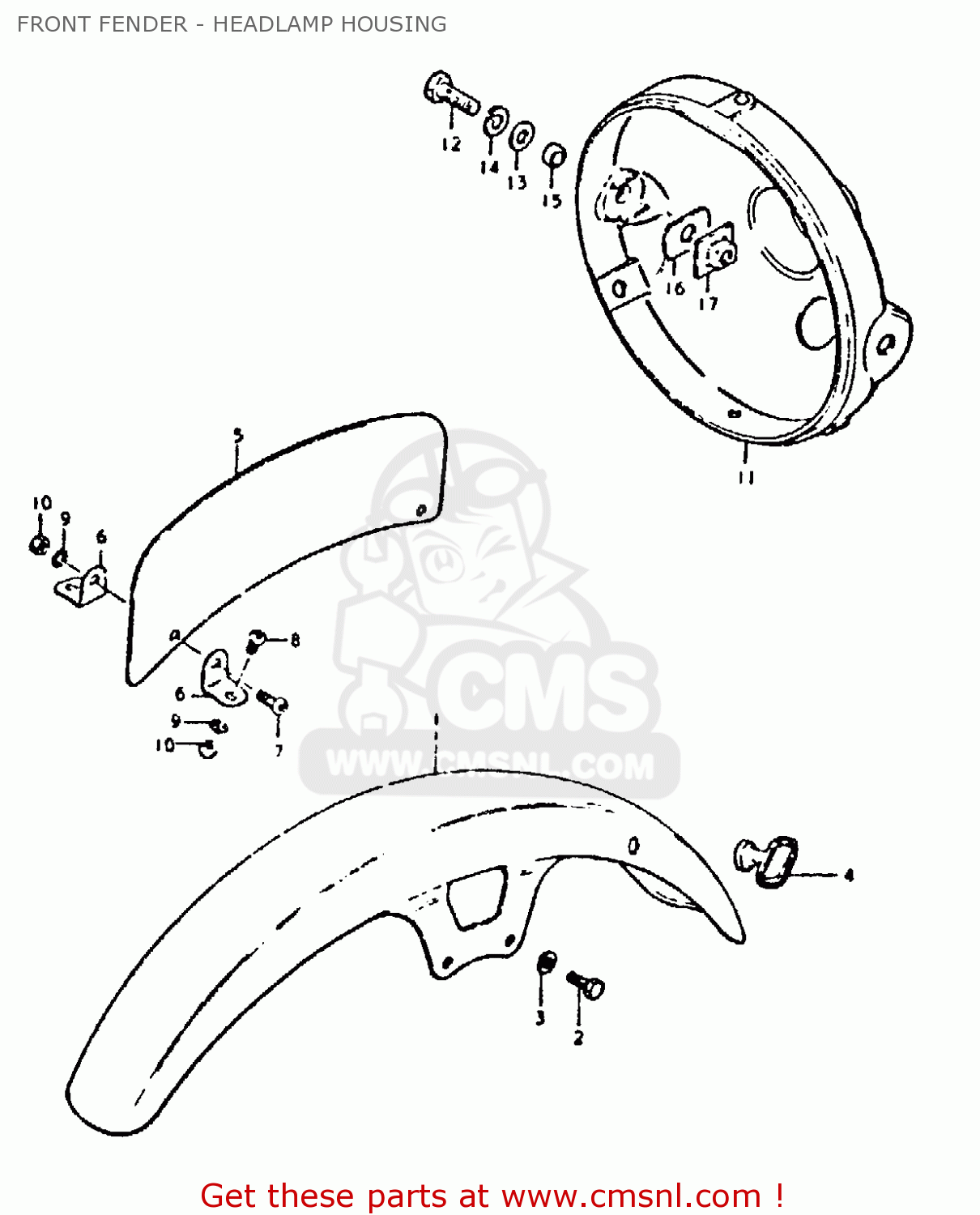

Front fender - headlamp housing diagram GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

FRONT FENDER - HEADLAMP HOUSING GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
FRONT FENDER - HEADLAMP HOUSING GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
FRONT FENDER - HEADLAMP HOUSING GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
prices are in EUR
ref
part #
description
quantity
1-1
5311011310
ref: 1-1
FENDER,FR
5311011310
€ 152.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
0110708168
ref: 2
BOLT
€ 2.00
3
0832121088
ref: 3
LOCK WASHER
0832121088
€ 2.00
4
5862121203A
ref: 4
GUIDE,CABLE
€ 7.50
5
NOTUSED
ref: 5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
NOTUSED
ref: 6
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
7
NOTUSED
ref: 7
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
NOTUSED
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
5181144000291
ref: 11
HOUSING,HEADLAMP(BLACK)
5181144000291
€ 63.00
12
0120408257
ref: 12
BOLT
0120408257
€ 2.00
13
0832221088
ref: 13
WASHER
0832221088
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
0832121088
€ 2.00
15
0918008030
ref: 15
SPACER (8.8X12X7)
0918008030
€ 3.50
16
0932912002
ref: 16
CUSHION
0932912002
€ 3.00
17
5186045000
ref: 17
PLATE,HEADLAMP HOUSING
5186045000
€ 2.00
