SEAT (MODEL N : ~F.NO. 107281)

GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

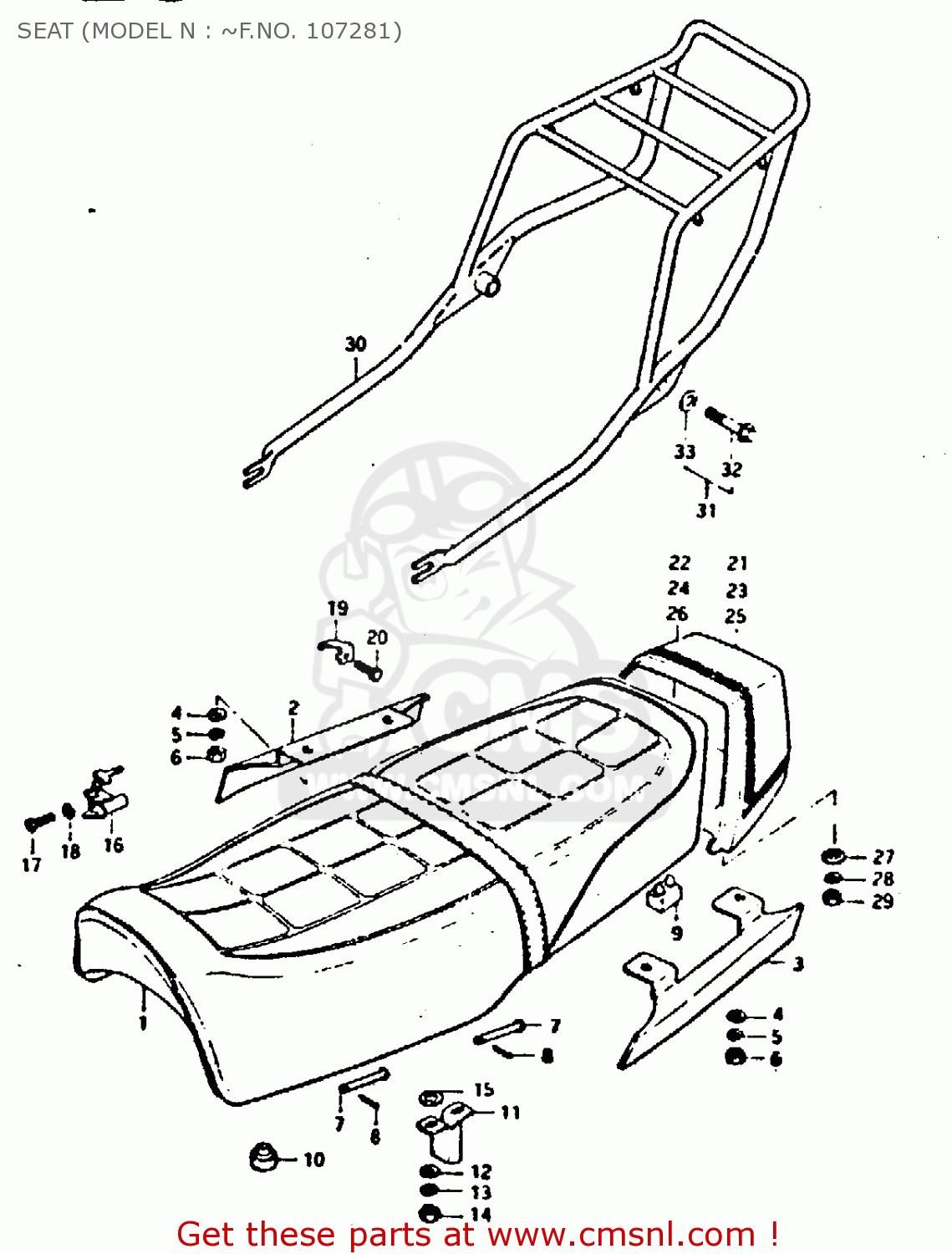

Seat (model n : ~f.no. 107281) diagram GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

SEAT (MODEL N : ~F.NO. 107281) GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
SEAT (MODEL N : ~F.NO. 107281) GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
SEAT (MODEL N : ~F.NO. 107281) GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
prices are in EUR
ref
part #
description
quantity
1
4510011300865
ref: 1
TO 45100-11301-865 U
SEAT (BLACK)
€ 255.00
2-1
4519111300189
ref: 2-1
MOULDING, RH (WHITE)
€ 16.00
2-2
451911130005K
ref: 2-2
MOULDING, RH (BLUE)
€ 16.00
2-3
451911130005J
ref: 2-3
MOULDING, RH (RED)
€ 16.00
2-4
NOTUSED
ref: 2-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3-1
4519211300189
ref: 3-1
MOULDING, LH (WHITE)
€ 16.00
3-2
451921130005K
ref: 3-2
MOULDING, LH (BLUE)
€ 16.00
3-3
451921130005J
ref: 3-3
MOULDING, LH (RED)
€ 16.00
3-4
NOTUSED
ref: 3-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4
0832221068
ref: 4
WASHER
0832221068
€ 2.00
5
0832121068
ref: 5
LOCK WASHER
0832121068
€ 2.50
6
0831011068
ref: 6
NUT
0831011068
€ 2.50
7
0920006018
ref: 7
PIN
0920006018
€ 2.00
8
0411120158
ref: 8
PIN
0411120158
€ 1.50
9
0932108006
ref: 9
CUSHION
0932108006
€ 3.00
10
0932110001
ref: 10
CUSHION
0932110001
€ 2.50
11
4521345000
ref: 11
STRIKER,SEAT LOCK
4521345000
€ 7.50
12
0832221068
ref: 12
WASHER
0832221068
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
0831921068
ref: 14
NUT 6MM
0831921068
€ 2.00
15
0916006028
ref: 15
WASHER(6.5X18X1)
0916006028
€ 1.50
16
9570045813
ref: 16
LOCK ASSY,SEAT
9570045813
€ 59.50
17
0211205128
ref: 17
SCREW
€ 2.50
18
0832121058
ref: 18
LOCK WASHER
0832121058
€ 2.00
19
9572245000
ref: 19
SPRING,HELMET HOLDER
9572245000
€ 8.50
20
0110405088
ref: 20
BOLT 5X16
€ 2.00
21-1
4551011300189
ref: 21-1
COVER, SEAT TAIL (WHITE)
€ 65.00
21-2
455101130005J
ref: 21-2
COVER, SEAT TAIL (RED)
€ 65.00
22
6810011861019
ref: 22
TAPE (BLACK)
€ 0.00
23
455101130005K
ref: 23
COVER, SEAT TAIL (BLUE)
€ 65.00
24
6810011861189
ref: 24
TAPE (WHITE)
€ 0.00
25
NOTUSED
ref: 25
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
26
NOTUSED
ref: 26
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
27
0916906016
ref: 27
WASHER
0916906016
€ 1.50
28
0832121068
ref: 28
LOCK WASHER
0832121068
€ 2.50
29
0831921068
ref: 29
NUT 6MM
0831921068
€ 2.00
30
4631011300
ref: 30
OPT
CARRIER, SPORTS
€ 51.50
31
4630011850
ref: 31
OPT
BOLT SET, CARRIER
€ 0.00
32
0151708858
ref: 32
OPT
BOLT
€ 3.50
33
0916010041
ref: 33
OPT
WASHER(10.3X25X1.5
0916010041
€ 4.00
