TRANSMISSION

GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

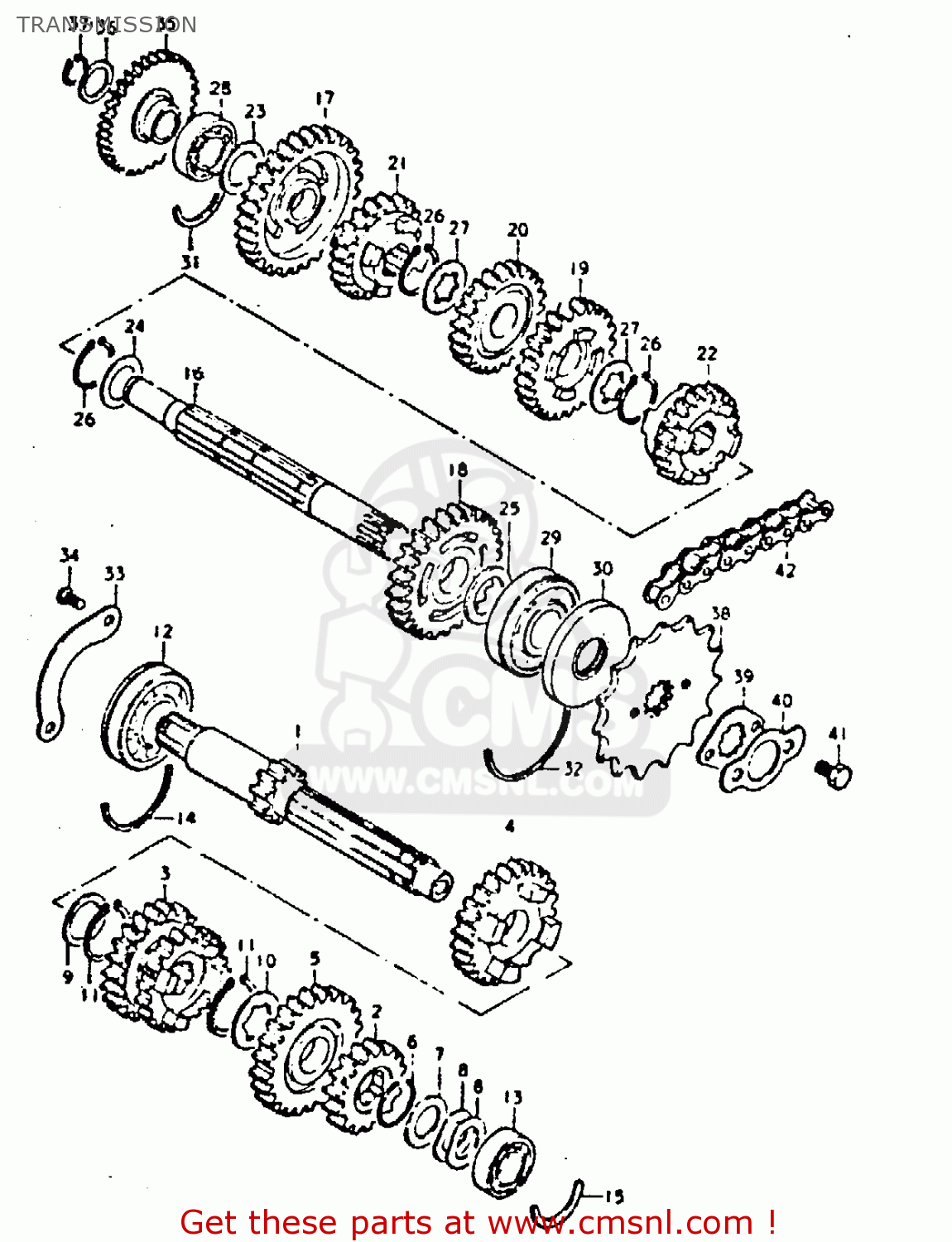

Transmission diagram GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

TRANSMISSION GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
TRANSMISSION GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
TRANSMISSION GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
prices are in EUR
ref
part #
description
quantity
1
2412111301
ref: 1
SHAFT, COUNTER (NT:12)
€ 0.00
2
2422111300
ref: 2
GEAR,SECOND DRIVE
2422111300
€ 54.00
3
2423111300
ref: 3
NT:19/21
GEAR,THIRD/FOURTH DRIVE
€ 85.00
4
2425111300
ref: 4
GEAR,FIFTH DRIVE
2425111300
€ 46.00
5
2426111300
ref: 5
GEAR,SIXTH DRIVE
€ 78.50
6
0938022007
ref: 6
CIRCLIP
€ 2.50
7
0916015027
ref: 7
WASHER (15X26X1.5)
€ 3.50
8
0916416003
ref: 8
WASHER
0916416003
€ 2.50
9
0821122281
ref: 9
SHIM
0821122281
€ 4.00
10
0916722011
ref: 10
WASHER,LOCK
0916722011
€ 3.00
11
0833111229
ref: 11
CIRCLIP
0833111229
€ 2.00
12
0816062050
ref: 12
BEARING
0816062050
€ 21.50
13
0811062020
ref: 13
BALL BEARING
€ 14.50
14
0939052002
ref: 14
C RING
0939052002
€ 3.00
15
0939035001
ref: 15
C RING
0939035001
€ 3.00
16
2413111301
ref: 16
SHAFT,DRIVE
2413111301
€ 192.00
17
2431011300
ref: 17
GEAR,FIRST DRIVEN
€ 54.00
18
2432011300
ref: 18
GEAR,SECOND DRIVEN
€ 81.00
19
2433111300
ref: 19
GEAR, 3RD DRIVEN (NT:23)
€ 51.00
20
2434111300
ref: 20
GEAR,FOURTH DRIVEN
€ 62.50
21
2435111300
ref: 21
GEAR,FIFTH DRIVEN
2435111300
€ 49.00
22
2436111300
ref: 22
GEAR,SIXTH DRIVEN
€ 91.00
23
0821115241
ref: 23
WASHER,THRUST
€ 4.00
24
0821122281
ref: 24
SHIM
0821122281
€ 4.00
25
0821120303
ref: 25
WASHER
0821120303
€ 2.50
26
0833111229
ref: 26
CIRCLIP
0833111229
€ 2.00
27
0916722011
ref: 27
WASHER,LOCK
0916722011
€ 3.00
28
0811062020
ref: 28
BALL BEARING
€ 14.50
29
0816063040
ref: 29
BEARING
0816063040
€ 23.00
30
0928320015
ref: 30
SEAL,OIL (20X52X7)
0928320015
€ 8.50
31
0939035001
ref: 31
C RING
0939035001
€ 3.00
32
0939052002
ref: 32
C RING
0939052002
€ 3.00
33
2474111300
ref: 33
RETAINER, BEARING
2474111300
€ 4.00
34
0211206128
ref: 34
SCREW 6X12
0211206128
€ 2.00
35
2626011301
ref: 35
NT:33
GEAR, KICK STARTER IDLER
€ 44.50
36
0821115241
ref: 36
WASHER,THRUST
€ 4.00
37
0833131159
ref: 37
CIRCLIP,15MM
0833131159
€ 2.00
38
2751111301
ref: 38
SPROCKET,ENGINE(NT:15)
2751111301
€ 22.00
39
2751211300
ref: 39
PLATE,ENGINE SPROCKET
2751211300
€ 115.00
40
2751336100
ref: 40
LOCK WASHER
2751336100
€ 4.50
41
0110706108
ref: 41
BOLT
€ 2.00
42-1
2760011360
ref: 42-1
FROM 27600-11311
CHAIN, DRIVE (520*102L)
€ 80.00
42-2
NOTUSED
ref: 42-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
