LEFT HANDLE SWITCH (MODEL N)

GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

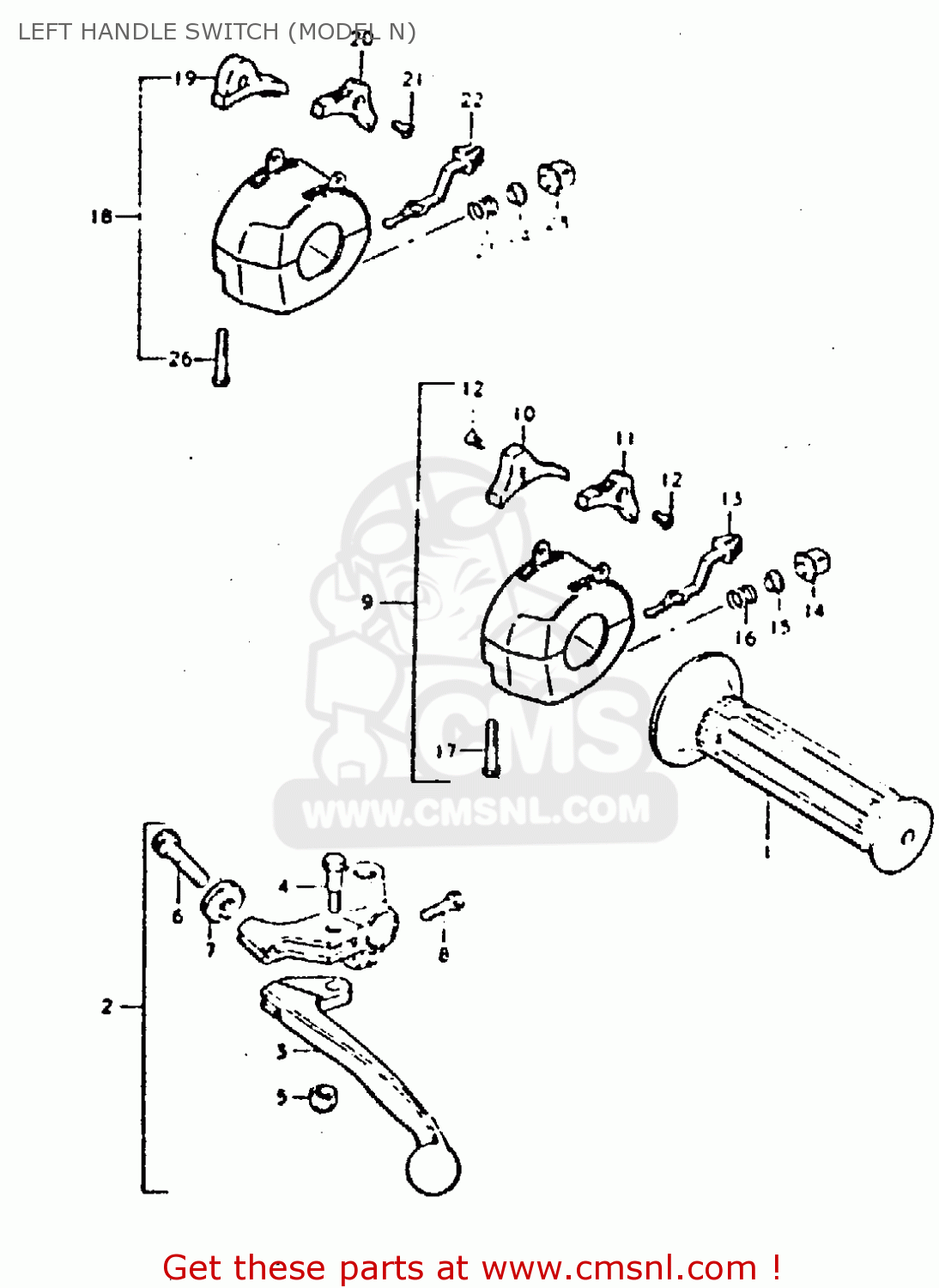

Left handle switch (model n) diagram GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

LEFT HANDLE SWITCH (MODEL N) GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
LEFT HANDLE SWITCH (MODEL N) GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
LEFT HANDLE SWITCH (MODEL N) GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
prices are in EUR
ref
part #
description
quantity
1
5721145020
ref: 1
GRIP,L
5721145020
€ 9.00
2
5750045020
ref: 2
LEVER ASSEMBLY
€ 52.50
3
5762045020
ref: 3
LEVER,CLUTCH
5762045020
€ 35.00
4
5743111010
ref: 4
BOLT,LEVER
€ 6.00
5
0831921068
ref: 5
NUT 6MM
0831921068
€ 2.00
6
5744111010
ref: 6
ADJUSTER,CABLE
5744111010
€ 8.00
7
5744211010
ref: 7
NUT,CABLE ADJUSTER
5744211010
€ 4.00
8
0110706208
ref: 8
BOLT
0110706208
€ 2.00
9-1
3740045013
ref: 9-1
SWITCH ASSY,HANDLE,L
3740045013
€ 171.50
9-2
NOTUSED
ref: 9-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
3741145012
ref: 10
KNOB,LIGHTING SWITCH
3741145012
€ 4.50
11
3742145012
ref: 11
KNOB,DIMMER SWITCH
3742145012
€ 5.50
12
0212203068
ref: 12
SCREW
0212203068
€ 1.00
13
3751345011
ref: 13
KNOB,TURNSIGNAL
3751345011
€ 6.50
14
5737145000
ref: 14
BUTTON,HORN
5737145000
€ 3.00
15
5737245000
ref: 15
CONTACT
5737245000
€ 3.00
16
5738245000
ref: 16
SPRING
5738245000
€ 2.50
17
0211205258
ref: 17
SCREW
0211205258
€ 2.00
18
NOTUSED
ref: 18
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19
NOTUSED
ref: 19
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
20
NOTUSED
ref: 20
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
21
NOTUSED
ref: 21
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
22
NOTUSED
ref: 22
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
23
NOTUSED
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
24
NOTUSED
ref: 24
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
25
NOTUSED
ref: 25
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
26
NOTUSED
ref: 26
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
