OIL TANK

GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

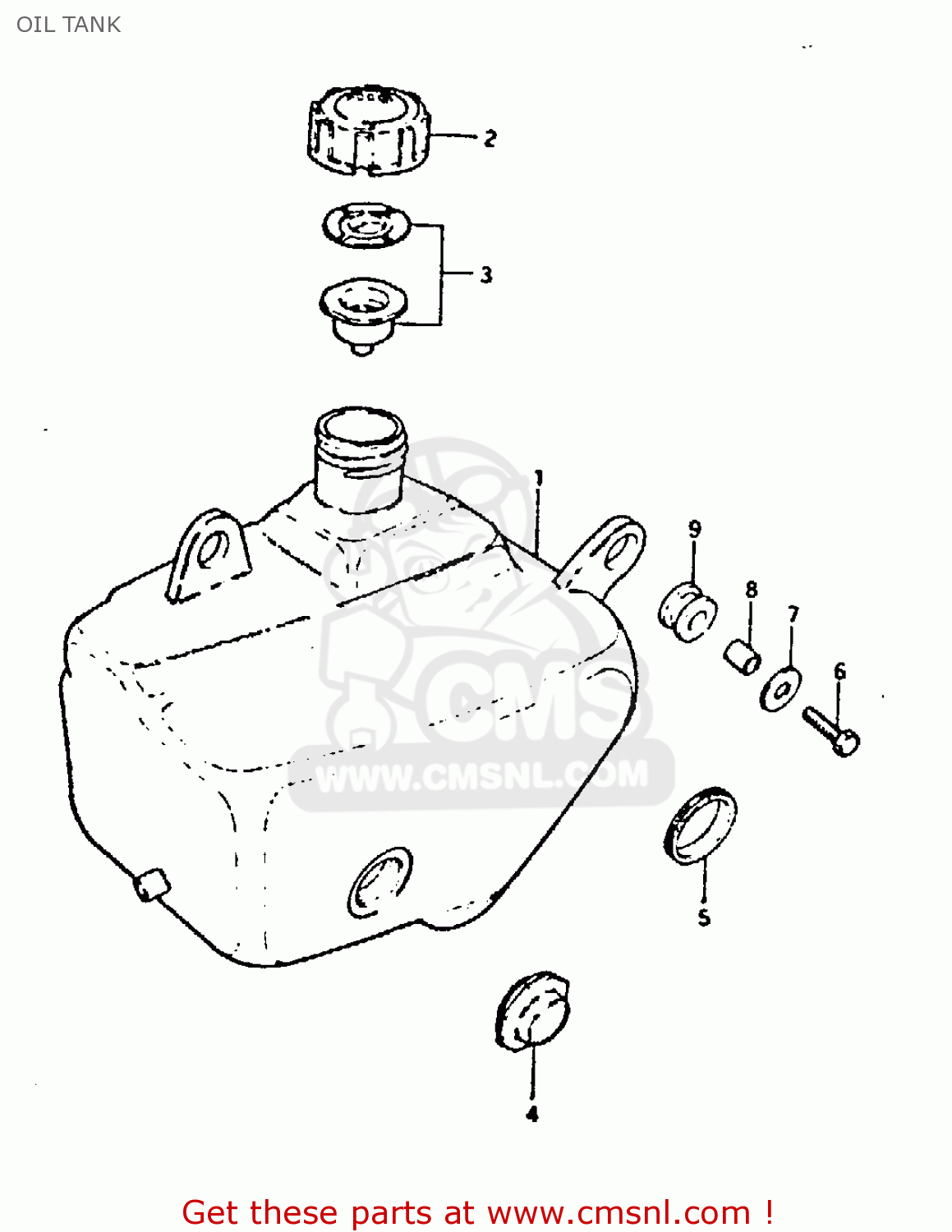

Oil tank diagram GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)

OIL TANK GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
OIL TANK GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
OIL TANK GT250 1981 (X) (E01 E02 E04 E05 E06 E13 E22 E24 E30 E49)
prices are in EUR
ref
part #
description
quantity
1
4461111300
ref: 1
TANK, OIL
€ 0.00
2
4465105003
ref: 2
CAP,OIL TANK
4465105003
€ 4.00
3
4460030832
ref: 3
GASKET SET (NAS)
4460030832
€ 6.00
4
4460046810
ref: 4
LENS SET,OIL LEVEL
4460046810
€ 6.50
5
4464911300
ref: 5
RUBBER
€ 3.50
6
0110706208
ref: 6
BOLT
0110706208
€ 2.00
7
0916006007
ref: 7
WASHER
0916006007
€ 2.00
8
0918006030
ref: 8
SPACER (6.8X10X10)
0918006030
€ 2.00
9
0932010008
ref: 9
CUSHION
0932010008
€ 2.50
